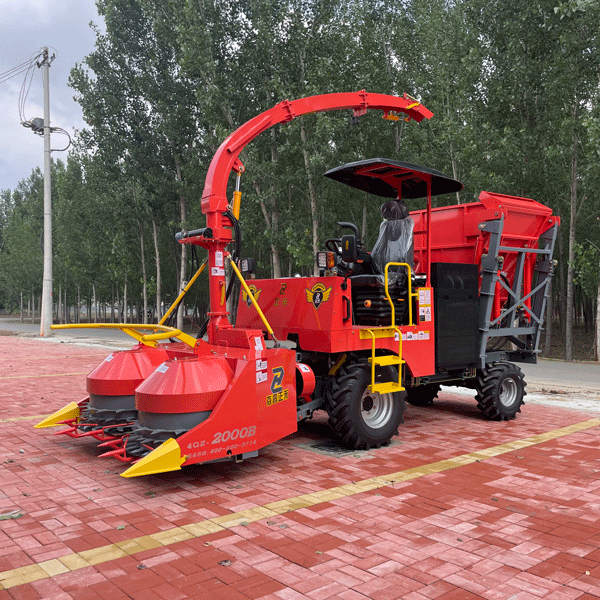

2020m Self-propelled Small Forage Harvester
Product superiority:
Senrui Zhenghe Series 4QZ-2000B self-propelled green fodder harvester. With a short body and small turning radius, it is flexible and convenient to operate, suitable for small and medium-sized plots, mountainous areas, hills, terraces and other areas. The 175-horsepower engine has sufficient horsepower and strong power, and the four-wheel drive system has high passability in mountainous areas and hills. The suspension seat makes driving more comfortable.
Product Details：
● Cutting and feeding assembly: two-roller feeding chamber, segmented design, more convenient maintenance, double disc saw blade cutter, can adapt to all rod-shaped forage crops non-row harvesting operations.
● Chopping assembly: disc knife chopping device, realize multi-level adjustable chopping length of forage.
● Spray barrel assembly: the spray barrel rotation adopts worm gear mechanism, can rotate ±180°, effectively lock the spray barrel angle. Make the spraying angle more stable.

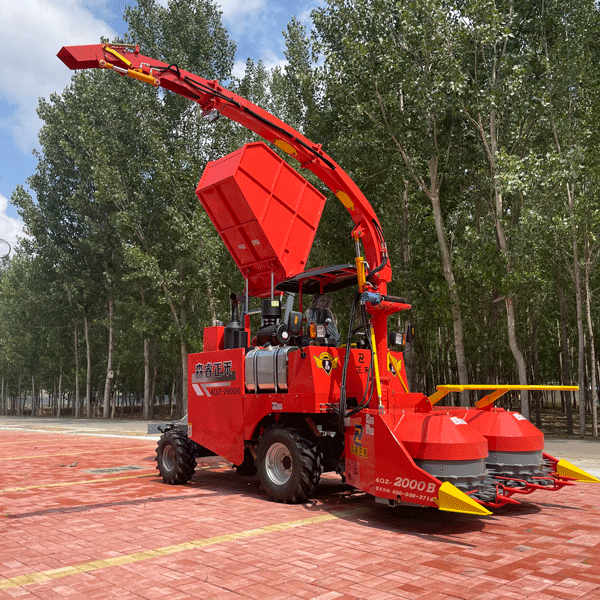

● Material box assembly: comes with a loading box, easy to operate by side tipping and unloading, adds secondary lifting function, better adapts to various material receiving models, and makes unloading more convenient.
Product Parameters：
Projects | Unit | Design value |
Model Name | / | 4QZ-2000B self-propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 5350*2200*4000 |
Structural quality | kg | 4180 |
Matching Engine Rated Power | kw | 129 |
Matching engine rated speed | r/min | 2300 |
Cut width (of a page) | mm | 2020 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Hydraulic |
Brake type | / | Disc |
Guide wheel spacing | mm | 1210 |
Guide wheel tyre specifications | / | 10.0/80-12 |
Driving Wheel Distance | mm | 1230 |
Driving wheel tyre specifications | / | 11.5/80-15.3 |
Wheelbases | mm | 2190 |
Operating speed range | km/h | ≤6 |
Design Cutting Length | mm | 20 |
