2.620m self-propeled Silage Harvester Machine
Product Advantages:
Senrui Zhenghe Series 4QZ-2600 self-propelled green fodder harvester is independently developed and produced by our company. The machine has a novel design and can realize non-row harvesting. The whole machine has a compact structure, a small turning radius, easy operation, and is safe and reliable. It is equipped with a pair of high-strength grain crushing rollers, with a crushing rate of more than 97%, which improves the palatability and feeding rate of livestock. The cab is equipped with an electronic operating handle, air conditioning, and a suspended seat, making driving more comfortable.
Product Details:

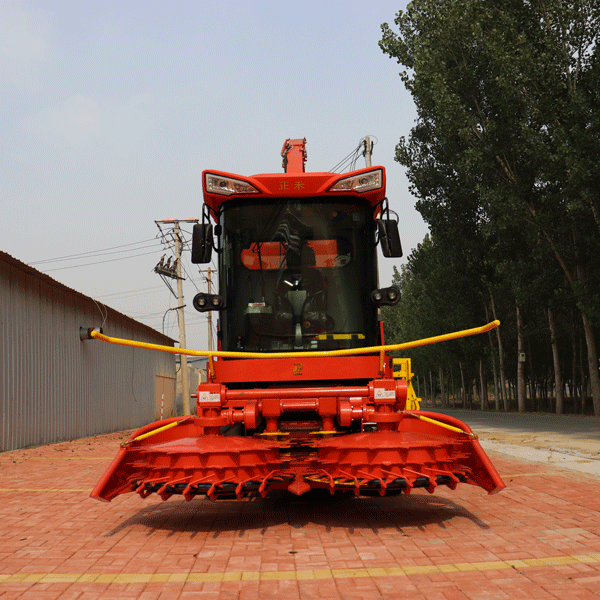

★Feeding assembly: Four-roller feeding chamber, segmented design, can realize fast connection and hanging, horizontal clamping feeding device, improves the reliability of the whole machine, and makes maintenance more convenient.
★Chopping assembly: Adopts 18 double-row herringbone-shaped moving knives, integrated spindle design, fixed knife adopts double-edged design, can be reversed and replaced, and comes standard with automatic sharpening.
★Throwing assembly: The throwing barrel rotates with a worm gear mechanism, which can achieve 200° rotation, effectively stop the spray barrel angle, and make the spraying angle more stable.

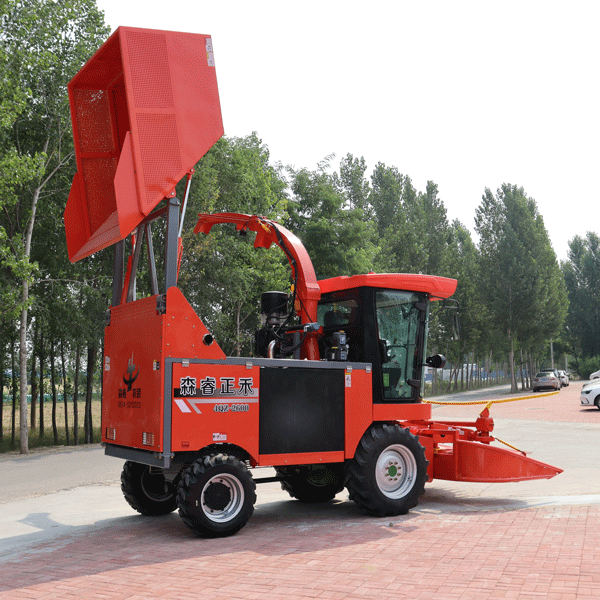

★Material box assembly: With its own loading box, the operation of rear flip unloading is simple, and the secondary lifting function is added to better adapt to various material receiving models, making unloading more convenient.
★Powertrain: Full diesel 260 horsepower, PTO intelligent fuel-saving control, with light load, medium load, heavy load switching function, four-wheel drive, etc.
Product parameter:
Projects | unit | Design value |
Model Name | / | 4QZ-2600 Self-propelled Green Forage Harvester |
Form of Construction (Hook-up) | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 6250×2800×5000 |
structural quality | kg | 7040 |
Matching power range | kW | 191.5 |
Matching engine rated speed | r/min | 2200 |
Cutting width | mm | 2620 |
Crop collecting header type | / | Straight cutting table |
Header cutter type | / | Disc cutter |
Feeding mechanism type | / | Feeding roller |
Number of feeding mechanisms | / | 4 |
Straw chopping mechanism type | / | Drum type |
Grain crushing mechanism type | Roller type | |
Speed Shift | / | Manual speed shift |
Drive mode | / | Hydraulic drive |
Brake type | / | Disc |
Steering wheel track | mm | 1600 |
Guide wheel tire specifications | / | 10.0/80-18 |
Driving wheel track | mm | 1570 |
Driving wheel tire specifications | / | 400/70R24 |
Wheelbase | mm | 2355 |
Operating speed range | km/h | ≤7 |
Design cutting length | mm | 20 |
