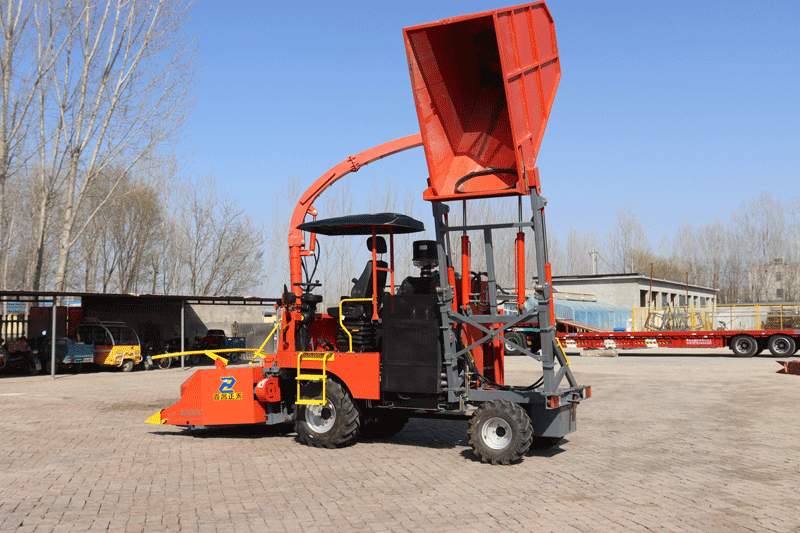

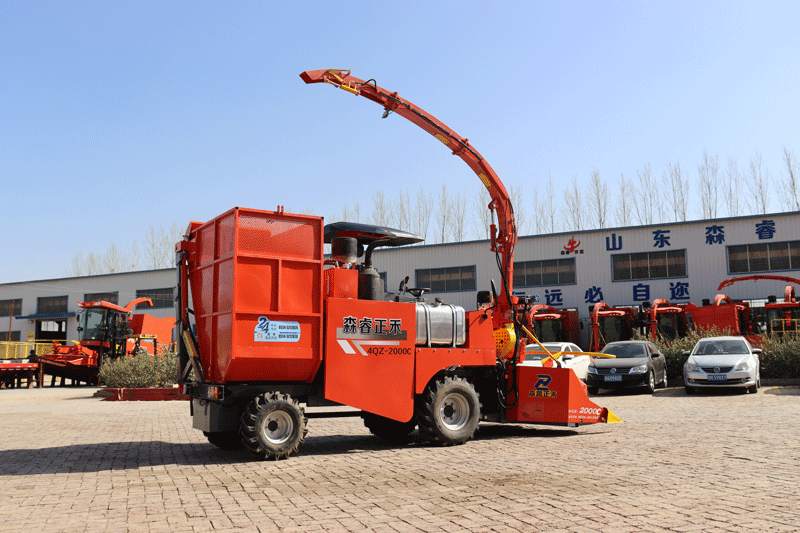

2020m Small Self-propelled Corn Straw Silage Harvester
Product advantages:
Senrui Zhenghe series 4QZ-2000C self-propelled green fodder harvester. Short body, small turning radius, flexible and convenient operation, suitable for small and medium-sized plots, mountains, hills, terraces and other plots. With grain crushing function, the crushing rate is as high as over 97%. The 175 horsepower engine is powerful, and the four-wheel drive system has strong passability in mountainous and hilly areas. The suspension seat makes driving more comfortable.
Product details:
● Cutting and feeding assembly: two-roller feeding chamber, segmented design, more convenient maintenance, double disc saw blade cutter, can adapt to all pole-shaped forage crops non-row harvesting operations.
● Grain crushing: double-roller high-strength grain crushing roller, quick replacement, grain crushing rate of more than 97%, improve the palatability and feeding rate of livestock.
● Feed box assembly: with built-in loading box, side-turning unloading operation is simple, adding secondary lifting function, better adapt to various feeding modes, more convenient unloading.
● Control assembly: the whole machine is hydraulically operated, simple and convenient to operate. Suspended seat, more comfortable driving.
Product Parameters：
| Project | Unit | Design value |
| Model Name | / | 4QZ-2000C Self-propelled Green Forage Harvester |
| Form | / | Self-propelled |
| Working state dimensions (L×W×H) | mm | 5400×2200×3750 |
| Construction Quality | kg | 4420 |
| Matching engine rated power | kw | 129 (National Level 4) |
| Matching engine rated speed | r/min | 2300 |
| Cutting width | mm | 2020 |
| Crop collecting header type | / | Straight cutting table |
| Header cutter type | / | Disc cutter |
| Feeding mechanism type | / | Feeding roller |
| Number of feeding mechanisms | / | 1pair |
| Straw chopping mechanism | Disc | |
| Grain crushing mechanism | / | Roller type |
| Cab type | Simple | |
| Speed Shift | Manual speed shift | |
| Drive mode | / | Hydraulic drive |
| Brake type | / | Disc |
| Steering wheel track | mm | 1210 |
| Guide wheel tire specifications | / | 10.0/80-12 |
| Driving wheel track | mm | 1230 |
| Driving wheel tire specifications | / | 11.5/80-15.3 |
| Wheelbase | mm | 2190 |
| Operating speed range | km/h | ≤6 |
| Design cutting length | mm | 20 |
