Factory Supply 4Qx‑1800 Durable Tractor Mounted Silage Harvester For Hilly Sloping Land Complex Farm Terrain

Product introduction:

Senrui 4QX-1800 mounted forage harvester operates via a tractor’s power take-off (PTO). By eliminating the need for a dedicated engine, it significantly reduces both initial purchase costs and long-term maintenance expenses, making it a highly cost-effective choice for livestock farms. It is compatible with a wide range of tractors, features quick-hitch/detach capabilities, and offers excellent maneuverability—ensuring efficient performance even in narrow field paths or complex terrain.

Equipped with a reinforced feed-roller system, the machine boasts superior anti-clogging performance and is capable of harvesting various green forages, including corn stalks, sorghum, alfalfa, and elephant grass. The precision-controlled chopping mechanism ensures uniform material size, which optimizes the silage fermentation process and enhances the palatability of the forage. The blades are crafted from wear-resistant alloy, offering an extended service life and allowing for easy replacement.

With its compact design and user-friendly operation, the 4QX-1800 is an ideal solution for medium-sized farms and agricultural cooperatives, enabling efficient silage harvesting while helping livestock producers lower their forage preparation costs.

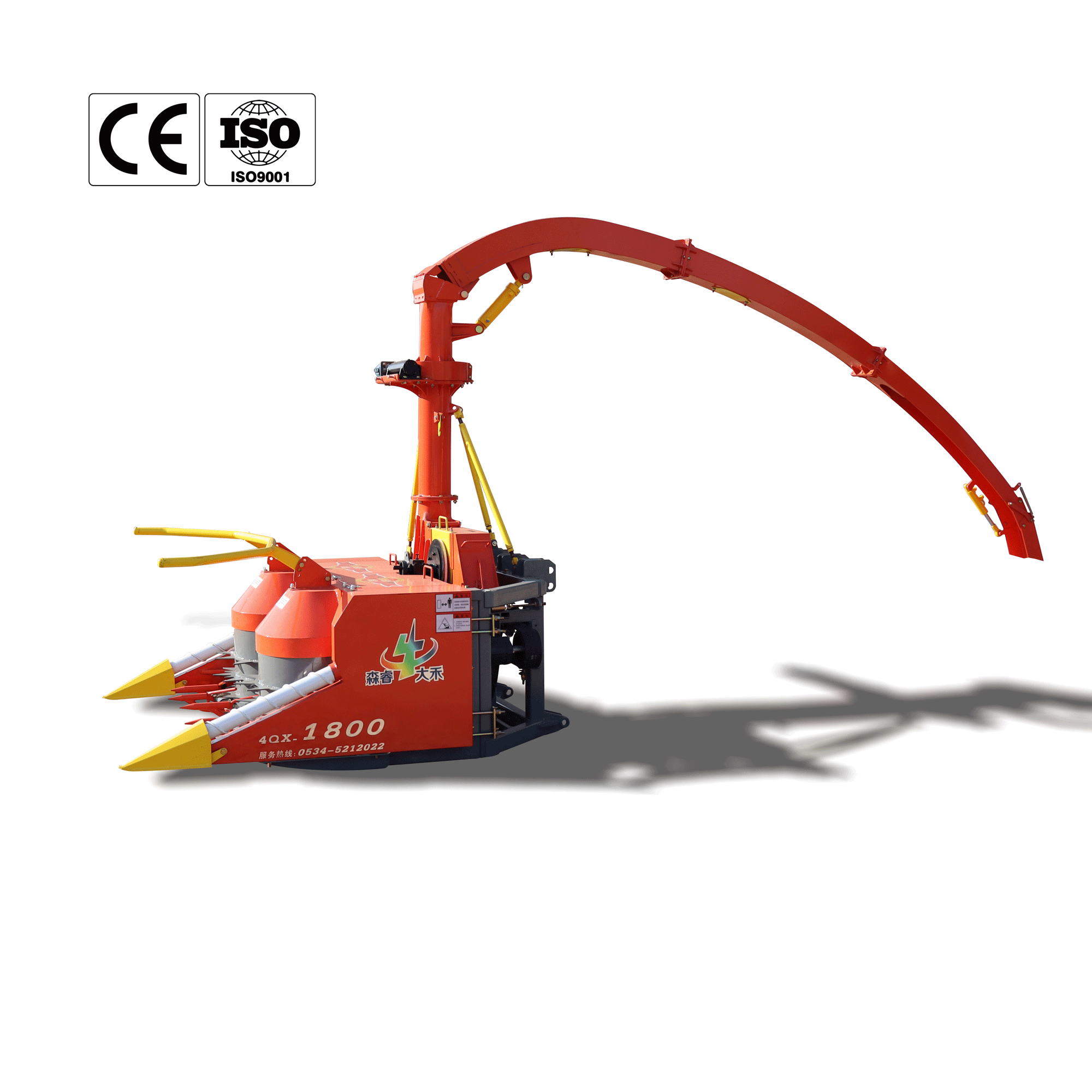

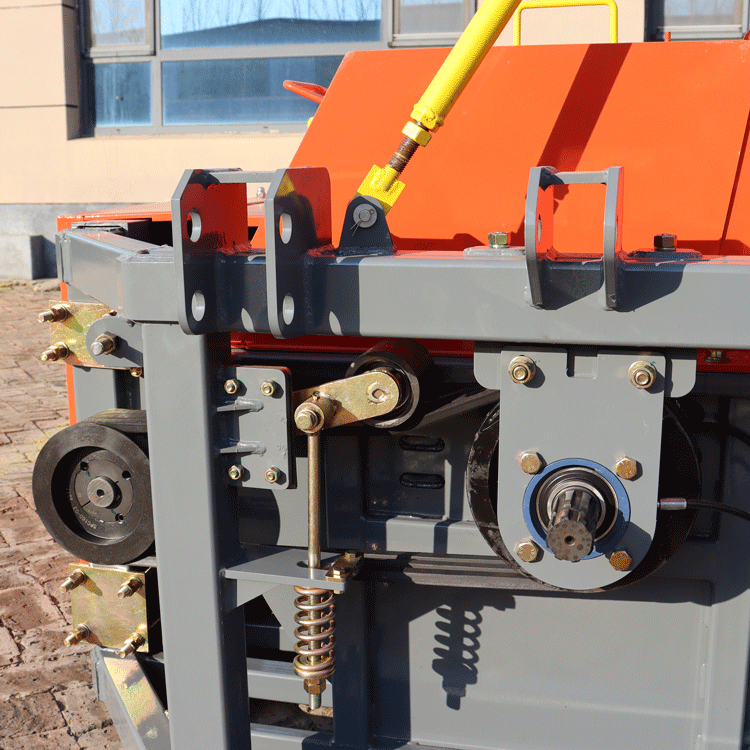

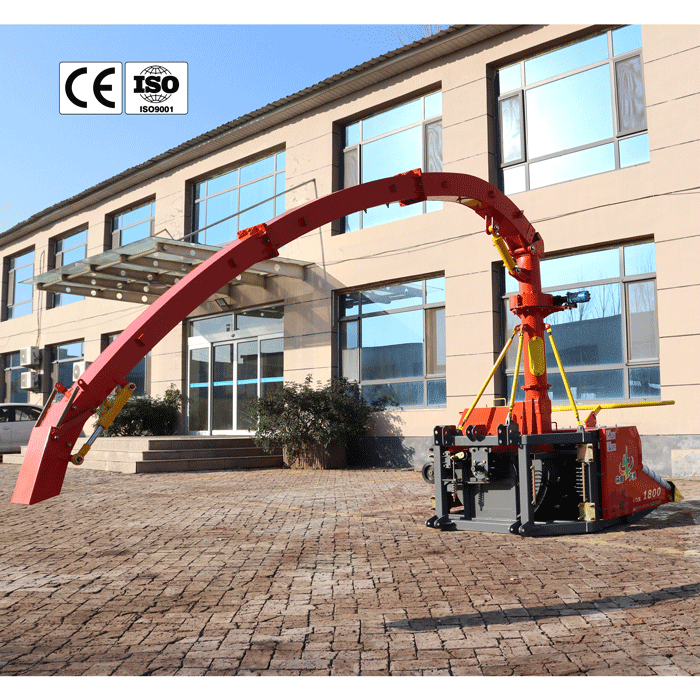

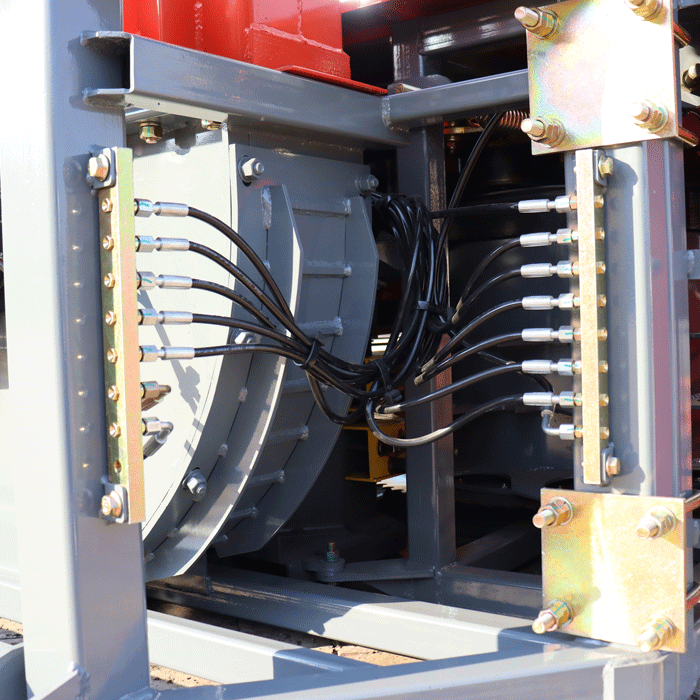

Product Details

Product features:

·The modular frame features a quick-attach system compatible with various tractor models; it can be assembled or disassembled by a single person, saving time and effort when moving between fields.

·A reinforced, anti-clogging four-roller feeding system ensures smooth material intake without jamming; it is capable of harvesting various types of green stalks and forage, including corn, sorghum, and alfalfa.

·Adjustable chopping blades allow for flexible control over chop length, ensuring uniform forage fragmentation and effectively improving the quality of silage fermentation.

·Lightweight, compact design with simple operation; capable of stable performance in both flat fields and on slopes.

·Features a simple maintenance structure that allows for easy removal and installation of wear parts—without the need for complex tools—significantly reducing the time required for daily upkeep on the farm.

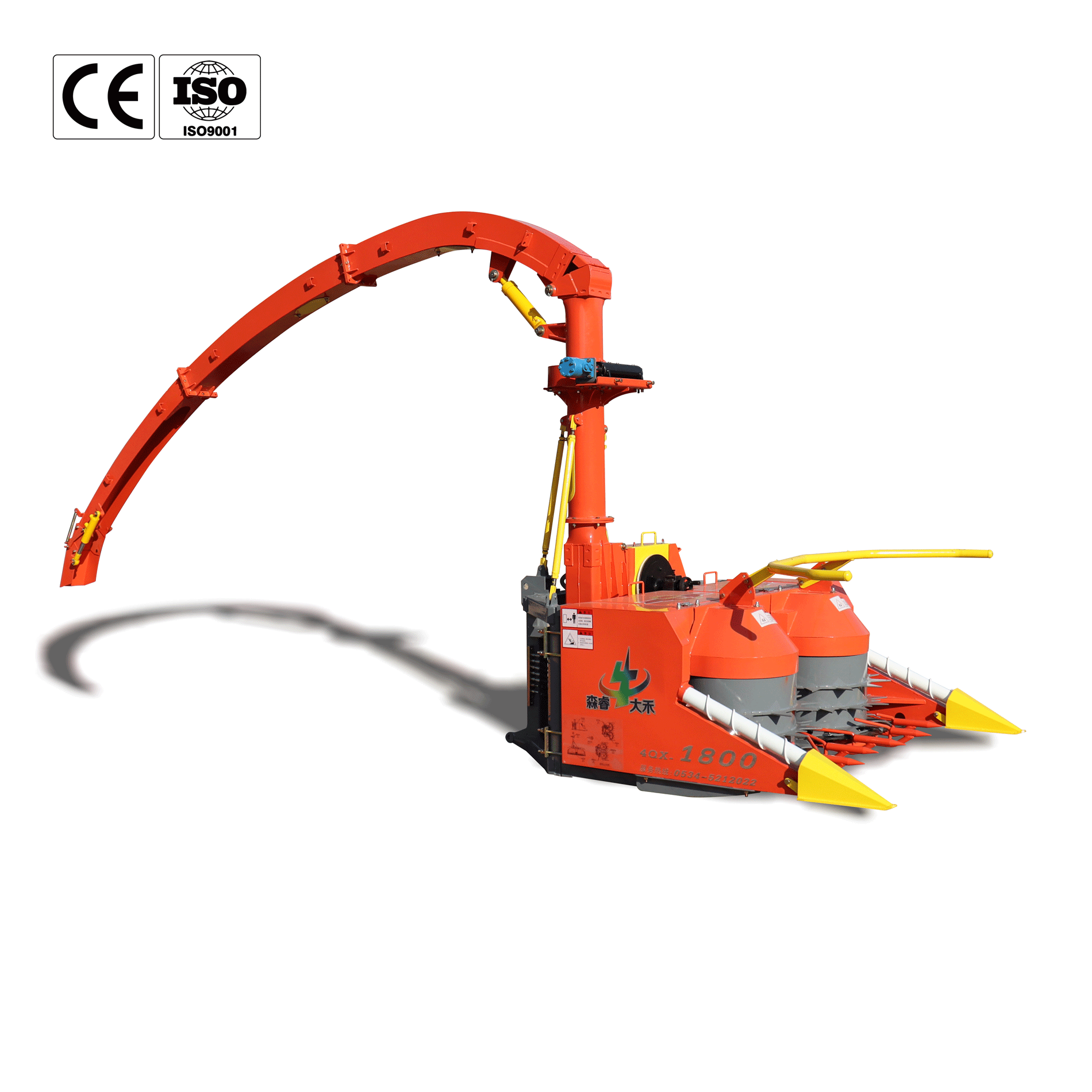

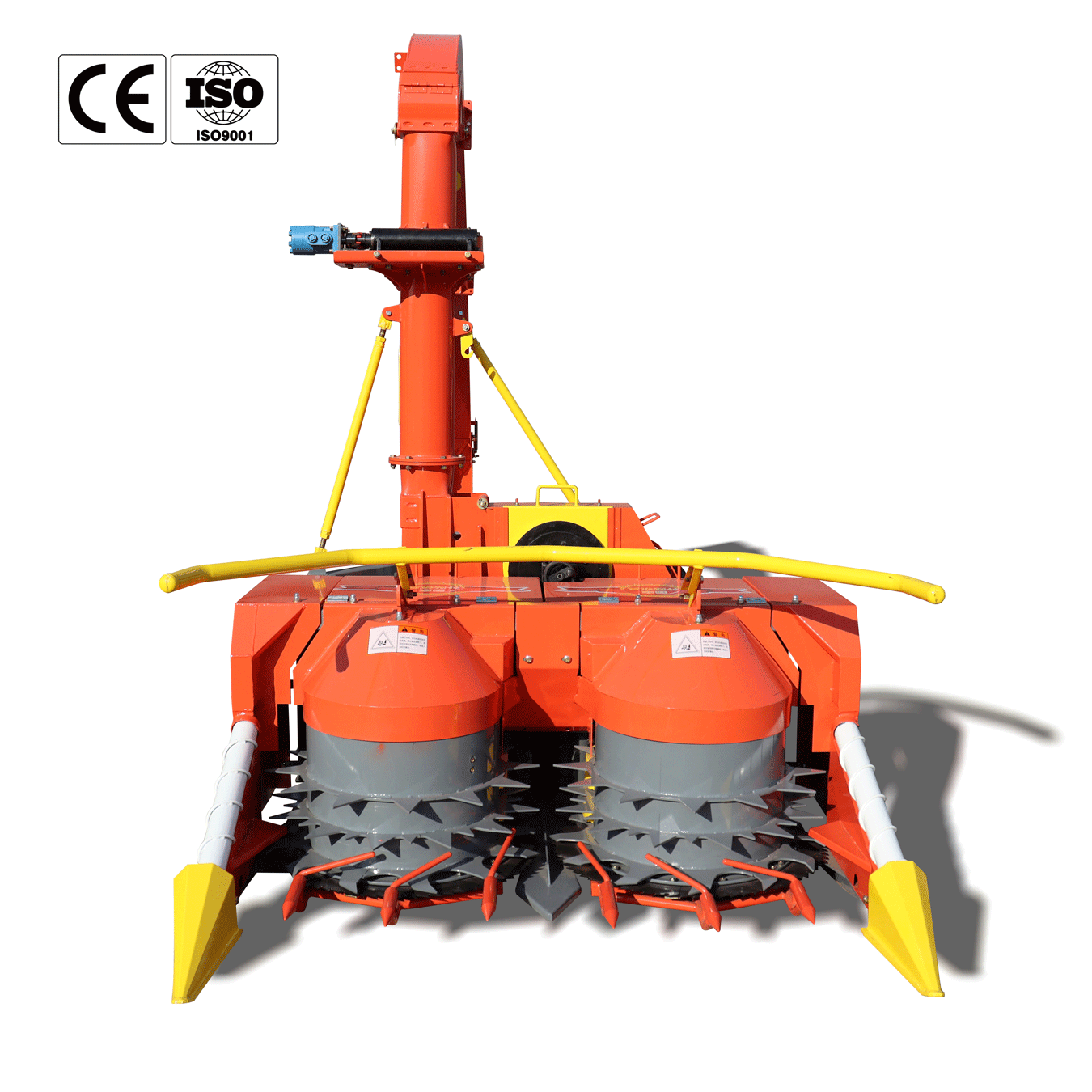

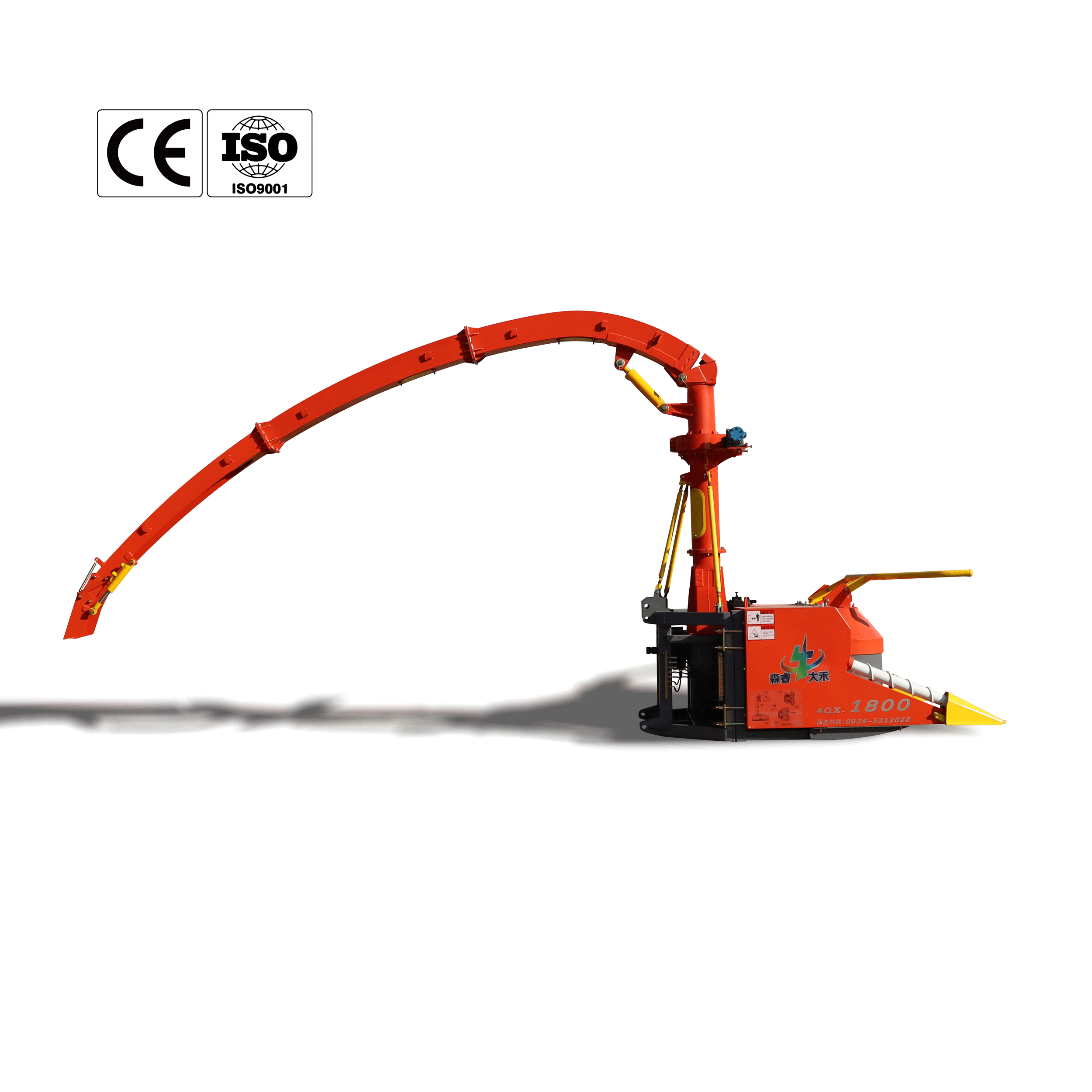

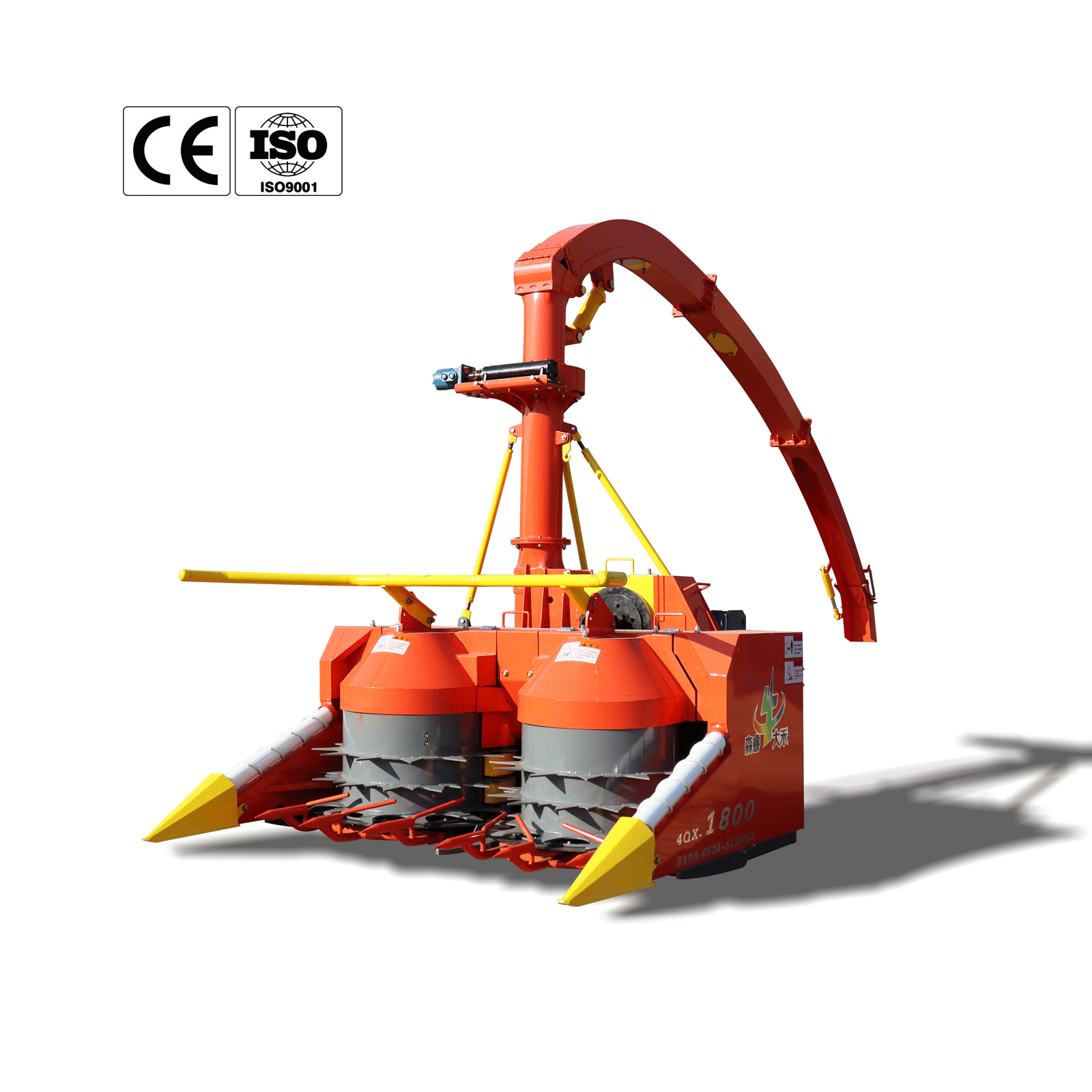

Factory Supply 4Qx‑1800 Durable Tractor Mounted Silage Harvester For Hilly Sloping Land Complex Farm Terrain  Factory Supply 4Qx‑1800 Durable Tractor Mounted Silage Harvester For Hilly Sloping Land Complex Farm Terrain

Product parameter:

Projects

unit

design value

Model Name

/

4QX-1800 type backpack green fodder   harvester

Form of Construction (Hook-up)

/

Disc type (suspended)

Working condition external dimensions   (L*W*H)

mm

4630*1800*4930

structural quality

kg

1398

Matching power range

kW

73.5~95.6

Effective harvesting width of the cutter

mm

1585

Crop collection cutter type

/

Straight cutting table

Cutting table cutter type

/

Disc cutter

Feeding mechanism type

/

Feed rollers

Number of institutions fed

/

2 pair

Chopping mechanism rotor diameter

mm

895

Rated spindle speed

r/min

850/1000

Maximum throwing height

mm

4850

Throwing Minimum Height

mm

4500

Swivelling angle of throwing cylinder

°

±180

Throwing maximum horizontal distance

m

12

Operating speed range

km/h

3~6

Mean geometric height of material

mm

10

Standard Grass Length Ratio

%

92

Number of moving knives

Piece

12

operating method

/

fully hydraulic

Adaptation to crop height

mm

400-5000

efficiency of production

t/h

13~25

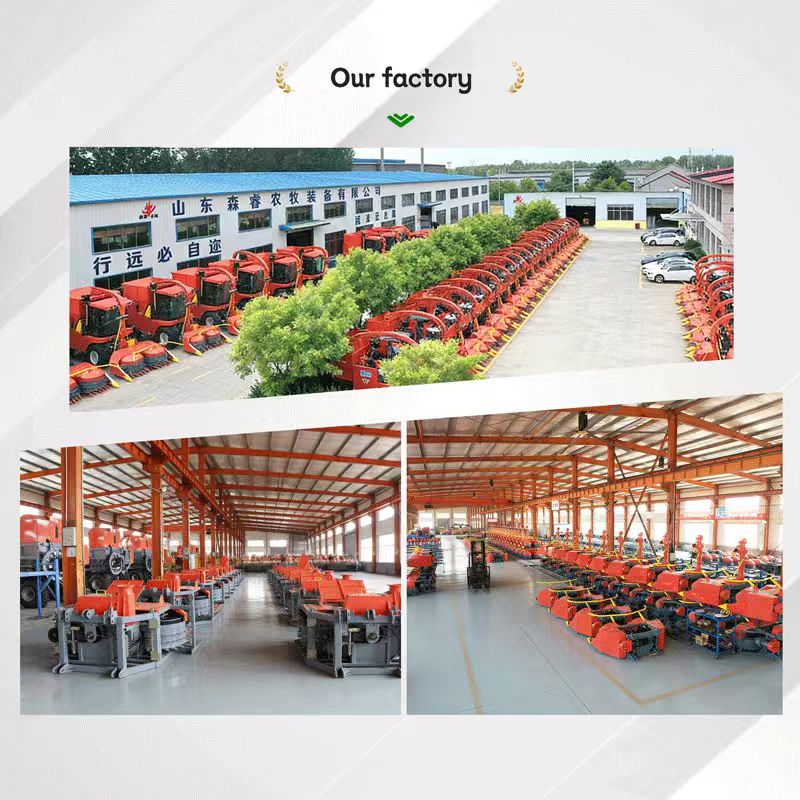

Company Strength:

Factory Supply 4Qx‑1800 Durable Tractor Mounted Silage Harvester For Hilly Sloping Land Complex Farm Terrain  Factory Supply 4Qx‑1800 Durable Tractor Mounted Silage Harvester For Hilly Sloping Land Complex Farm Terrain

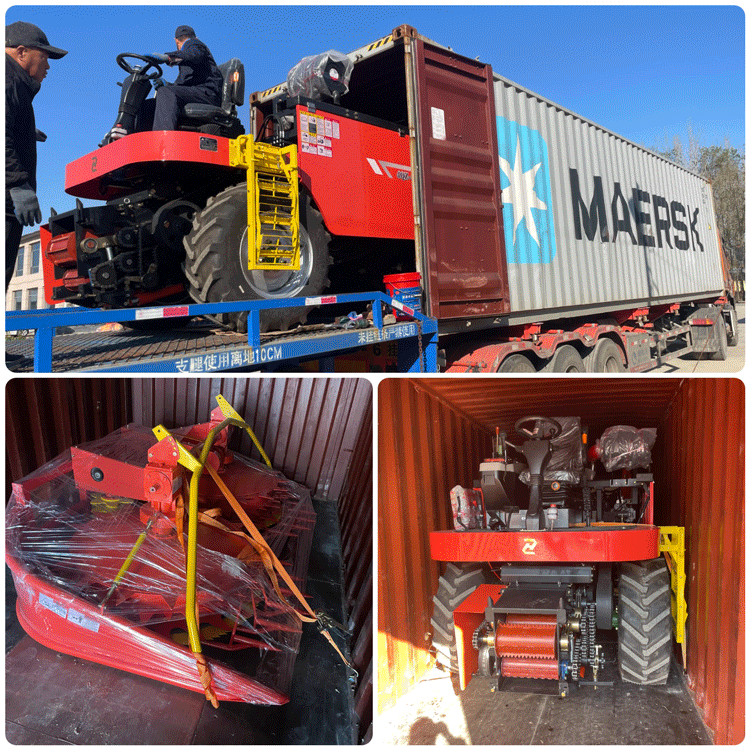

Packaging & Transportation:

Factory Supply 4Qx‑1800 Durable Tractor Mounted Silage Harvester For Hilly Sloping Land Complex Farm Terrain  Factory Supply 4Qx‑1800 Durable Tractor Mounted Silage Harvester For Hilly Sloping Land Complex Farm Terrain

Our Customers:

Factory Supply 4Qx‑1800 Durable Tractor Mounted Silage Harvester For Hilly Sloping Land Complex Farm Terrain  Factory Supply 4Qx‑1800 Durable Tractor Mounted Silage Harvester For Hilly Sloping Land Complex Farm Terrain
