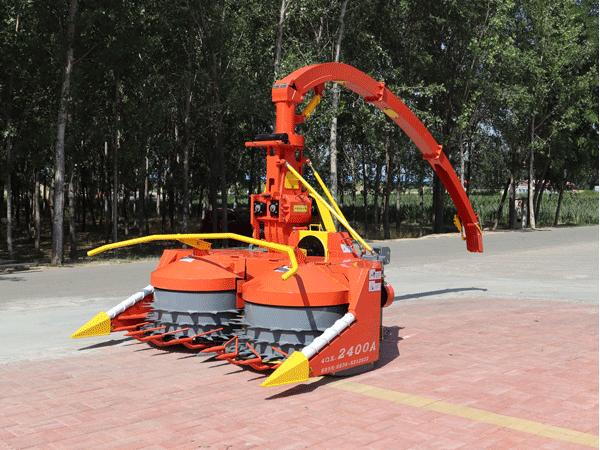

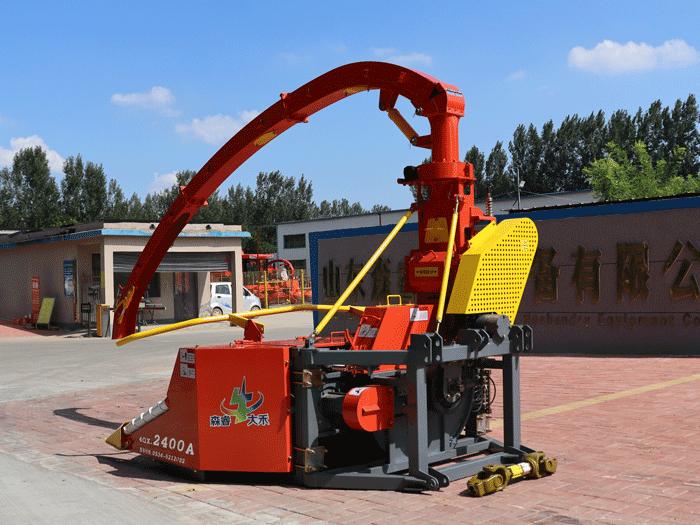

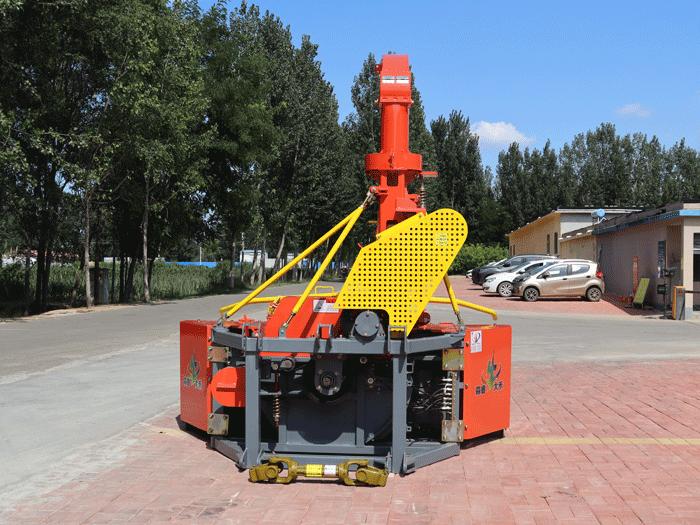

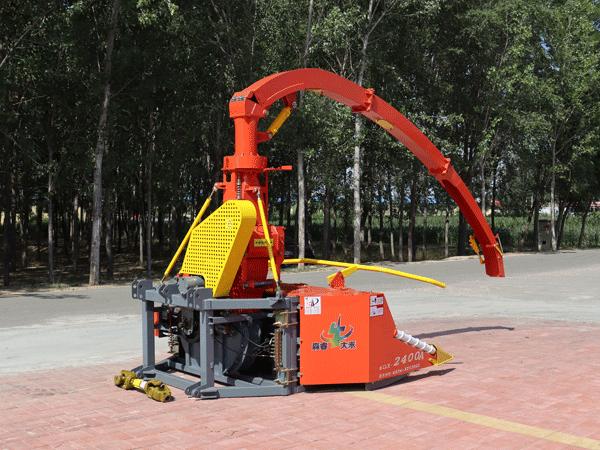

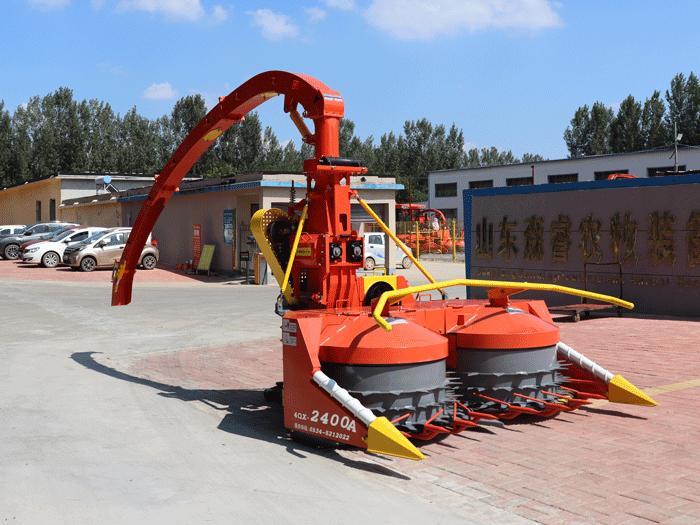

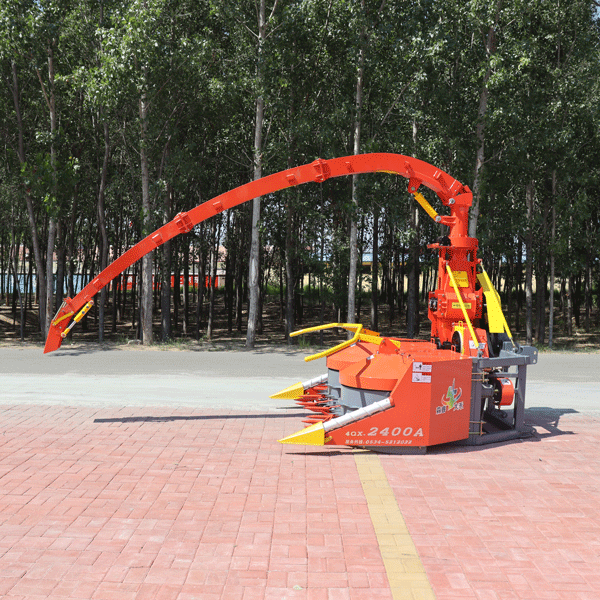

4QX-2400A Backpack Silage Machine
Product description:
The Senrui Dahe Series 4QX-2400A mounted forage harvester features an innovative design that enables non-row harvesting. Equipped with a grain crushing device, it achieves a crushing rate exceeding 97%. It can be used with any qualified tractor or harvester. Its automatic blade sharpening function eliminates the time-consuming and labor-intensive process of blade sharpening.
Product characteristics:

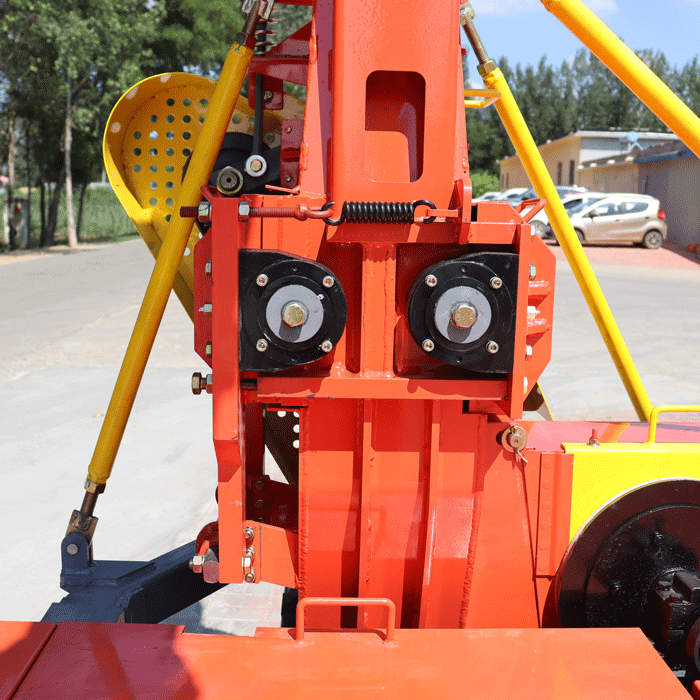

★ Grain Crushing: High-strength, quick-change double-roller crushing rollers achieve a grain crushing rate of over 97%, improving livestock palatability and feed intake.
★ The vertical drum feeder adapts to off-row harvesting of tall-stalk crops like corn and sorghum.
★ Chopping device allows for adjustable chopping length to meet the needs of different forage harvesting requirements.

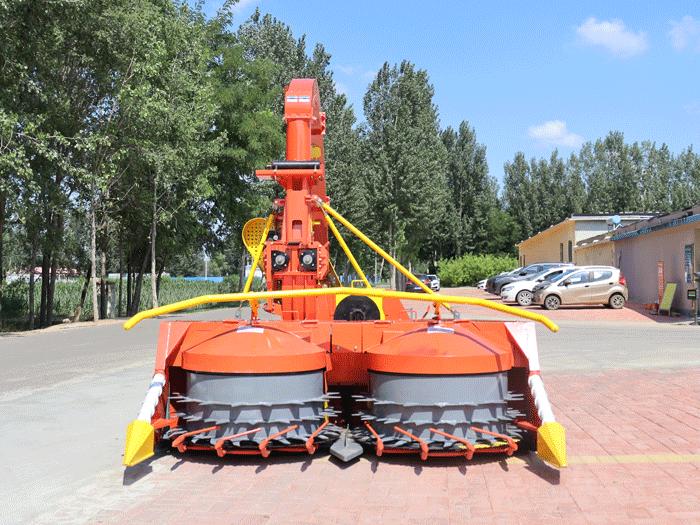

★ The cutting device utilizes dual circular saw blades for accurate and smooth cutting, leaving a uniform and consistent stubble.
Product parameter:
Projects | Unit | Design Value |
Model Name | / | 4QX-2400 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4900×2450×4930 |
structural quality | kg | 2108 |
Matching power range | kw | 117.6~132.3 |
Effective harvesting width of the cutter | mm | 2220 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2 pair |
Chopping mechanism rotor diameter | mm | 895 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 4850 |
Throwing Minimum Height | mm | 4500 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 12 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 10 |
Standard Grass Length Ratio | % | 95 |
Number of moving knives | Piece | 12 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 15~30 |
