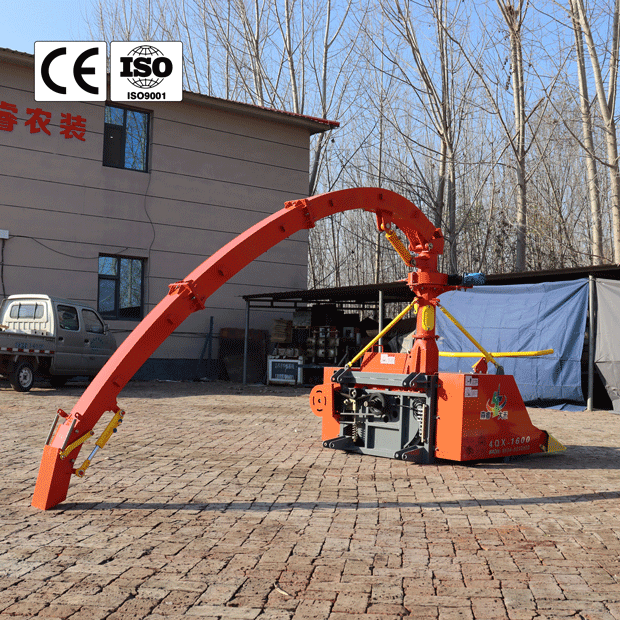

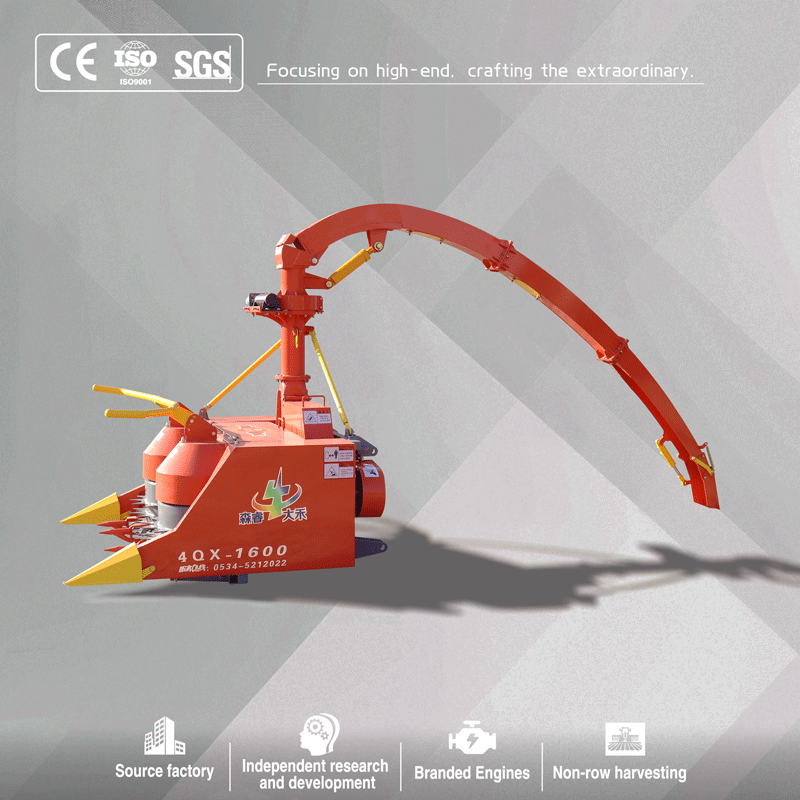

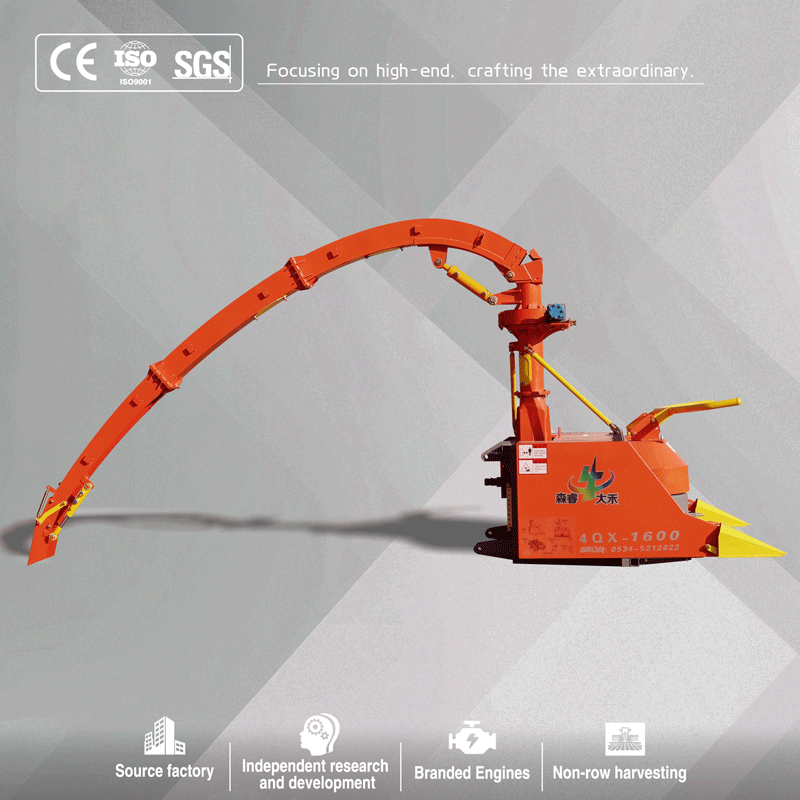

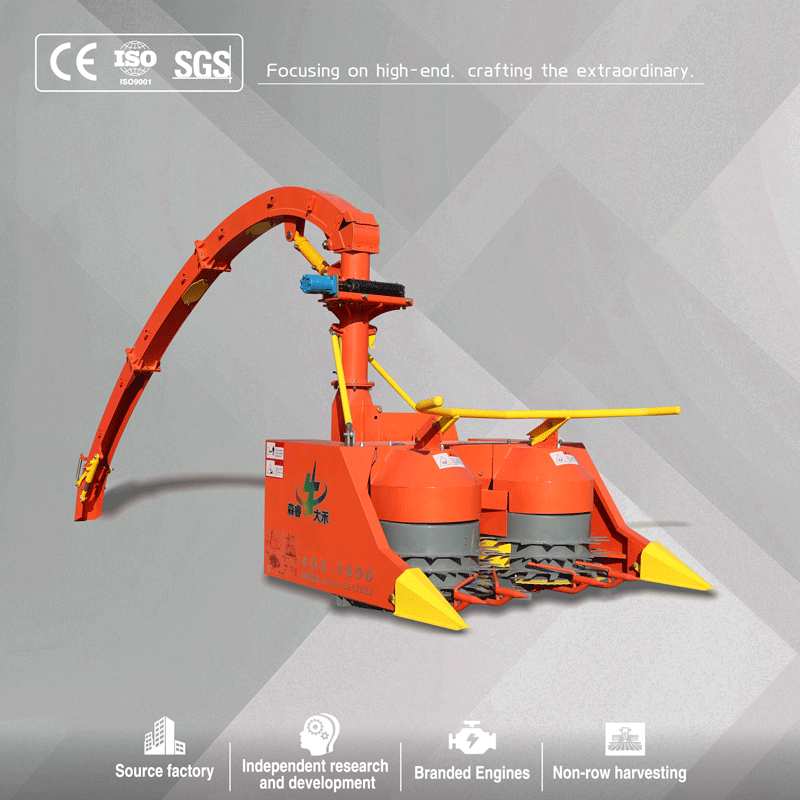

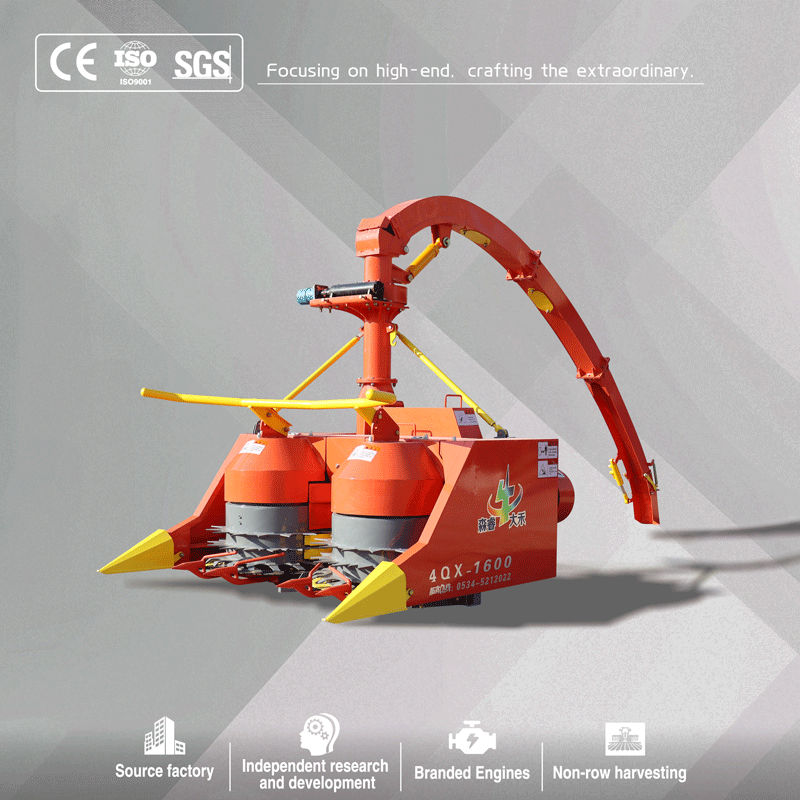

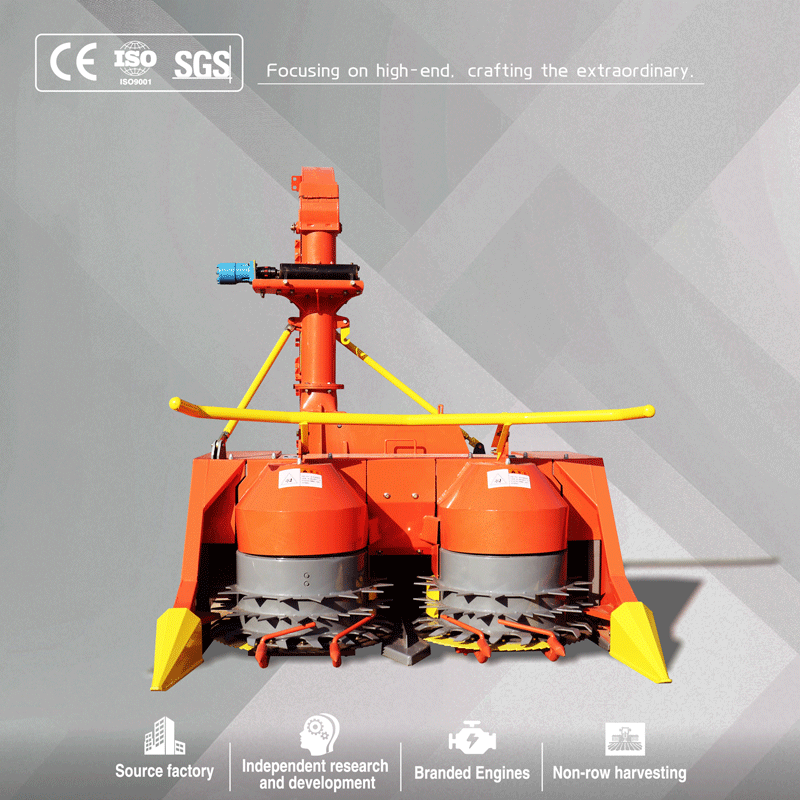

Agricultural 4Qx-1600 Durable Fully Automatic Lightweight Boasts Compact Mounted Forage Harvester For Silage Making
Product Advantages:
4QX-1600 mounted silage harvester is powered by a tractor's PTO, allowing users to leverage existing equipment and significantly reduce initial procurement costs. Featuring a row-independent harvesting design, it is not constrained by crop row spacing and efficiently harvests various forage crops—such as corn, sorghum, alfalfa, and elephant grass—while achieving high pickup rates for lodged stalks; it is suitable for diverse operating environments, including flat fields and hilly terrain.
Its three-point hitch system ensures quick attachment and detachment as well as flexible maneuverability between sites; the compact structure minimizes storage space requirements. An optimized feeding channel effectively reduces the risk of clogging, while uniform chopping ensures high-quality silage fermentation and improved forage palatability. The discharge chute supports multi-angle rotation, enabling direct material transfer to transport vehicles; harvesting, chopping, and loading are completed in a single pass, minimizing manual labor. Built with wear-resistant materials for core components, the machine offers low failure rates, simple maintenance, and easy part replacement, making it a cost-effective silage harvesting solution for small-to-medium-sized farms and livestock cooperatives.
Product introduction:
·It features a quick-mount three-point linkage system powered by the tractor's PTO, eliminating the need for an external power source; it allows for rapid attachment and detachment for easy transport and enables flexible operation in small agricultural plots.
·Designed for row-independent harvesting, the header is not restricted by crop row spacing and can efficiently pick up and harvest lodged corn stalks, elephant grass, and alfalfa.
·The optimized, anti-clogging intake channel, combined with a high-precision chopping blade assembly, ensures uniform forage particle size, thereby enhancing silage fermentation and palatability for livestock.
·The rotatable discharge chute enables multi-angle unloading, allowing for simultaneous harvesting, chopping, and loading; this significantly reduces the need for on-site manual labor and boosts the overall efficiency of the harvesting operation.
·Features a compact, lightweight body and high-strength, wear-resistant components; it is easy to maintain, takes up minimal space when stored, and meets the needs of various types of livestock farms.

Product parameter:
Projects | Unit | Design Value |
Model Name | / | 4QX-1600 type backpack silage harvester |
Structural form(hanging method) | / | Disc type(hanging type) |
Working condition external dimensions (L*W*H) | mm | 4750*1720*3410 |
structural quality | kg | 1032 |
Matching power range | kW | 44.1~58.5 |
Effective harvesting width of the cutter | mm | 1480 |
Crop collection cutter table type | / | Direct cutting table |
Type of cutting machine for making tables | / | Disc cutter |
Type of feeding mechanism | / | Feed rollers |
The maximum number of feeding institutions | / | 1 pair |
Diameter of rotor in shredding mechanism | mm | 790 |
Rated speed of spindle | r/min | 850/1000 |
Maximum throwing height | mm | 3400 |
Minimum throwing height | mm | 3100 |
Rotation angle of the conveyor belt | ° | ±180 |
Maximum horizontal distance for throwing | m | 10 |
Range of homework speed | km/h | 3~6 |
What is the average length of the material | mm | 20 |
Standard grass growth rate | % | 93 |
Number of knives used | Piece | 8 |
operating mode | / | fully hydraulic |
Adapt to crop height | mm | 400-5000 |
Productivity | t/h | 10~20 |
