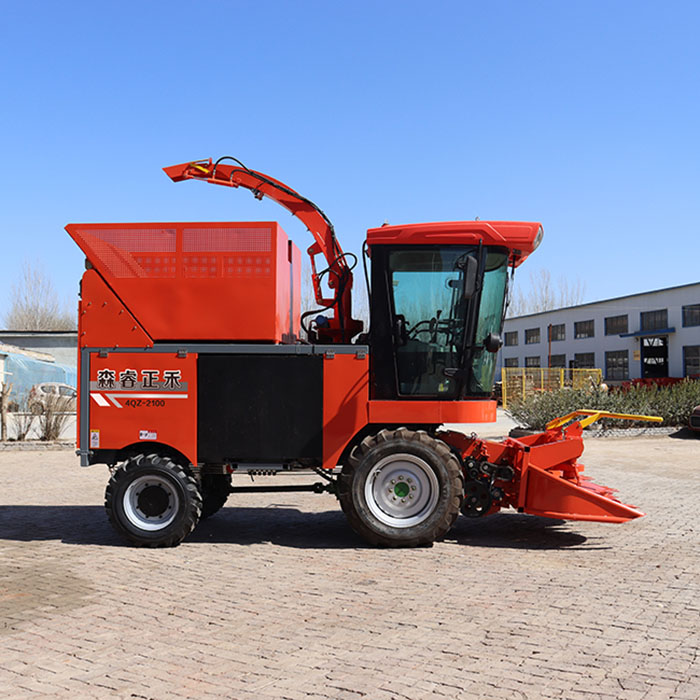

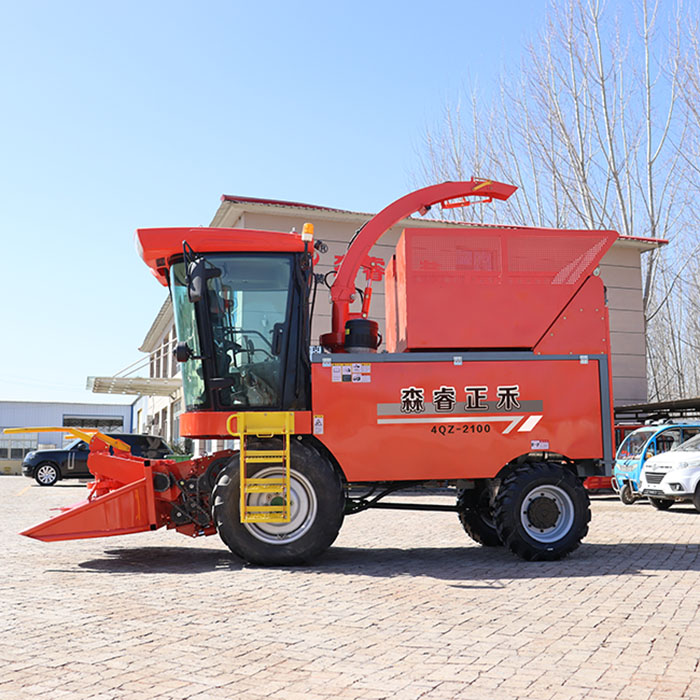

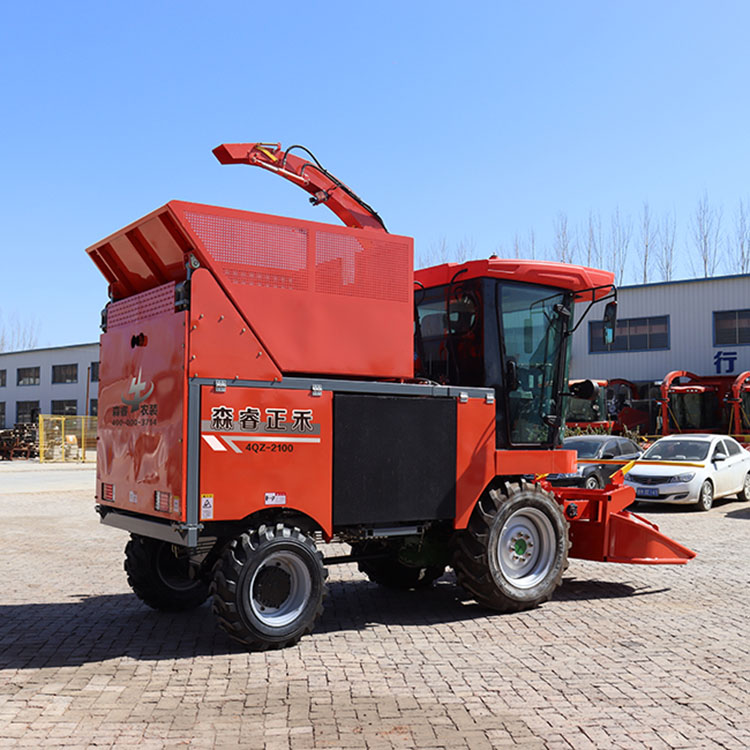

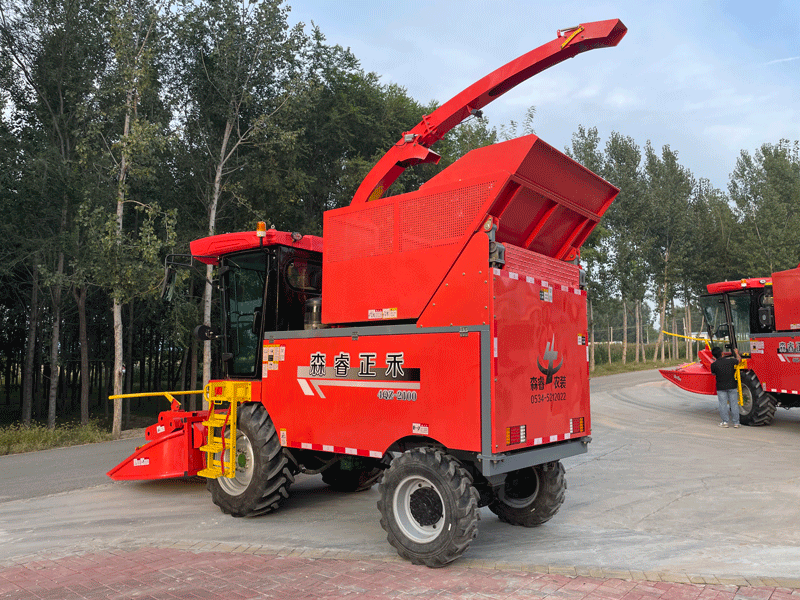

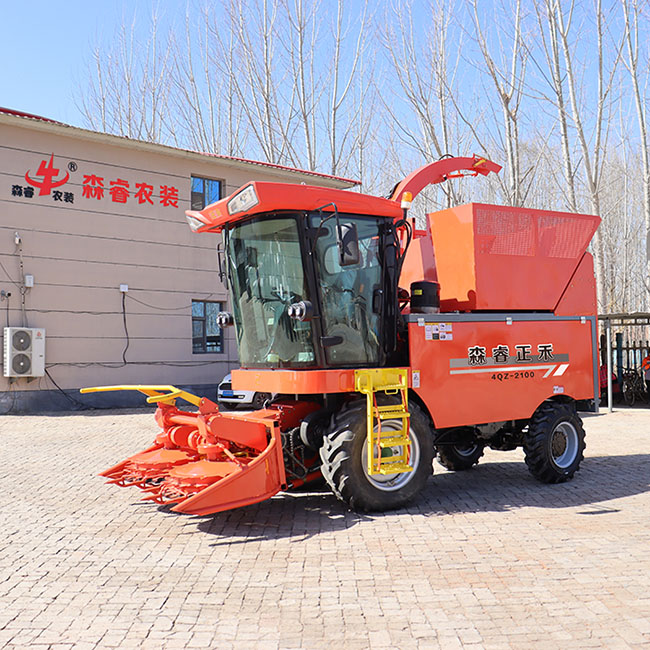

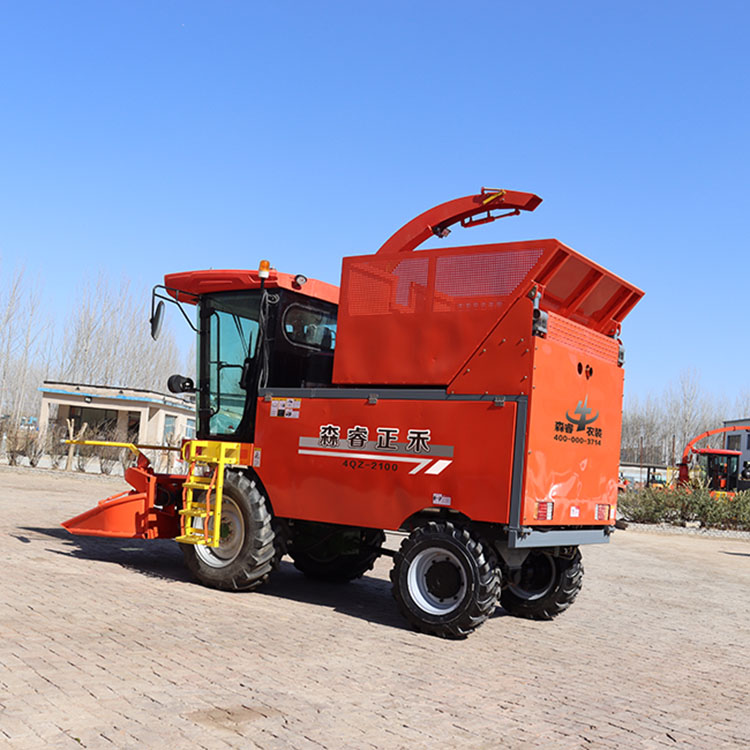

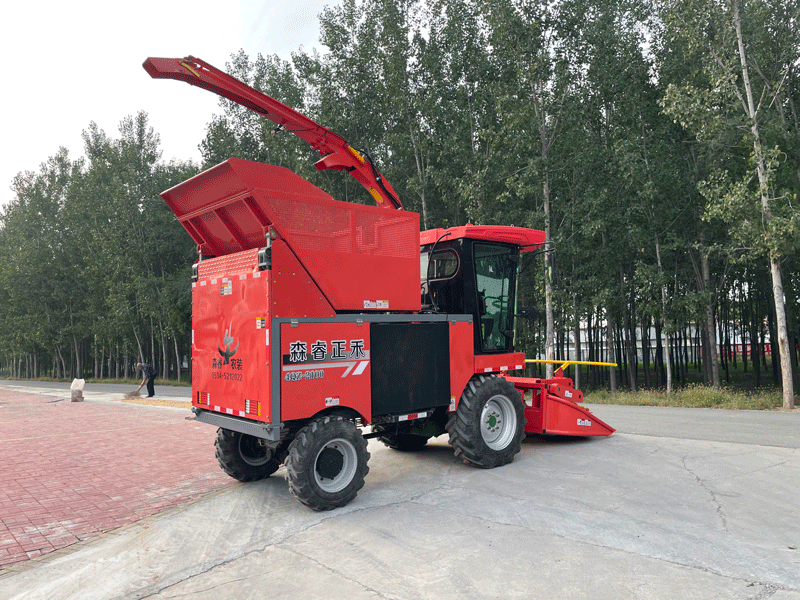

2.050m Silage Chopper Machine
Product introduction:
☆ The whole machine has a compact structure, small turning radius, easy operation and reliable quality.
☆ Grain crushing: The high-strength grain crushing rollers are used, and the grain crushing rate is more than 97%, which improves the palatability and feeding rate of livestock.
☆ Thrower assembly: The throwing barrel rotation adopts a worm gear mechanism, which can achieve 200° rotation, effectively lock the spray barrel angle, and make the spraying angle more stable.

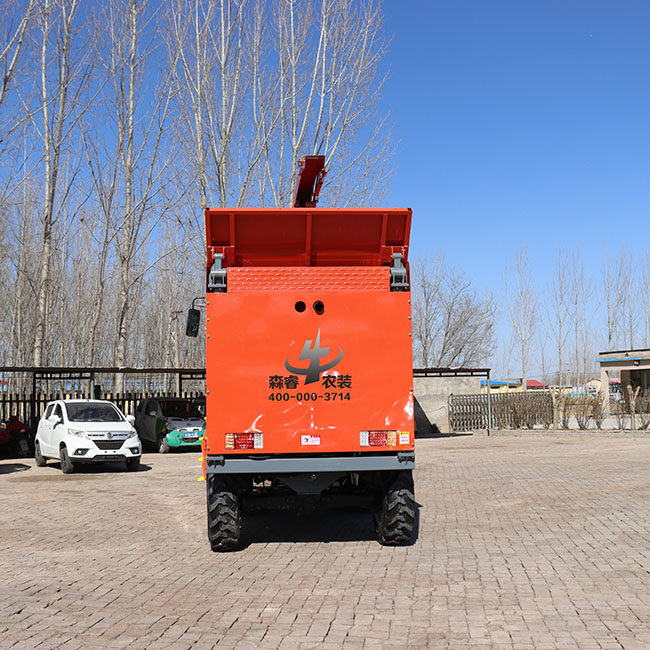

☆ Material box assembly: It comes with a loading box, and the back flip unloading operation is simple. The secondary lifting function is added to better adapt to various types of material receiving models, and unloading is more convenient.
☆ Control/hydraulic: Standard air conditioning, electronic operating handle, suspended seat, more comfortable driving, the cab host is standardly equipped with a large-screen LCD display and operation monitoring system, which improves the operating safety, reliability and intelligence of the machine. The whole machine is hydrostatically driven, and the driving is more comfortable.
Product Details:
Senrui Zhenghe Series 4QZ-2100 self-propelled green fodder harvester is independently developed and produced by our company. After years of practice and the perfect combination of the latest technology, it has a novel design and can achieve non-row harvesting operations. The throwing barrel adopts a worm gear mechanism and can rotate ±180°. The control room is equipped with air conditioning, electronic operating handles, and suspended seats as standard. The equipped hydraulic display screen can monitor the operation at any time, which improves the safety and reliability of the machine. The grain crushing system built into the fuselage improves the feed crushing rate. Four-roller feeding and horizontal clamping feeding device improve the reliability of the whole machine and make maintenance more convenient.
The machine adopts 18 double-row herringbone-shaped moving knives, an integrated spindle design, a double-edged fixed knife design, which can be reversed and replaced, and comes standard with automatic sharpening. The power part adopts a full diesel 220 horsepower engine, PTO intelligent fuel-saving control, light load, medium load, heavy load switching function, four-wheel drive system, etc.
Product parameter:
Projects | unit | Design value |
Model Name | / | 4QZ-2100 Self-propelled Green Forage Harvester |
Form of Construction (Hook-up) | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 5560*2200*4000 |
structural quality | kg | 6400 |
Matching power range | kW | 161.5 |
Matching engine rated speed | r/min | 2300 |
Cutting width | mm | 2050 |
Crop collecting header type | / | Straight cutting table |

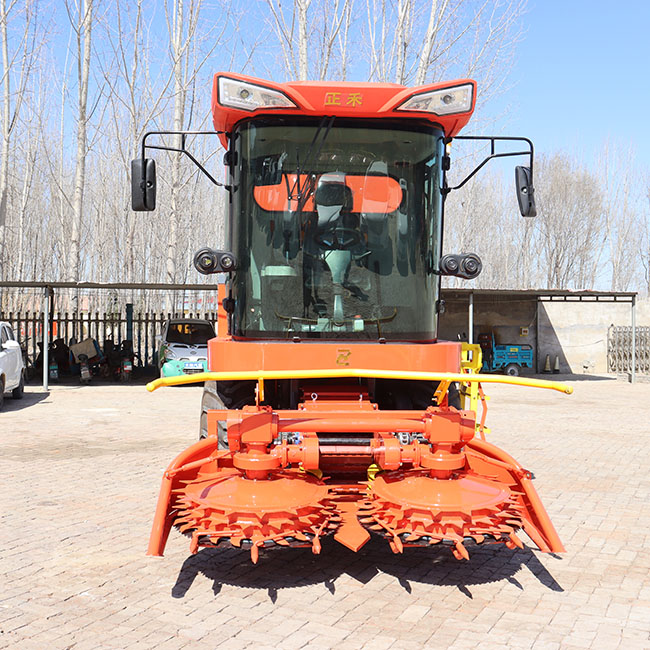

Header cutter type | / | Disc cutter |
Feeding mechanism type | / | Feeding roller |
Number of feeding mechanisms | / | 4 |
Straw chopping mechanism type | / | Drum type |
Grain crushing mechanism type | Roller type | |
Speed Shift | / | Manual speed shift |
Drive mode | / | Hydraulic drive |
Brake type | / | Disc |
Steering wheel track | mm | 1600 |
Guide wheel tire specifications | / | 10.0/80-18 |
Driving wheel track | mm | 1550 |
Driving wheel tire specifications | / | 400/70R24 |
Wheelbase | mm | 2355 |
Operating speed range | km/h | ≤7 |
Design cutting length | mm | 20 |
