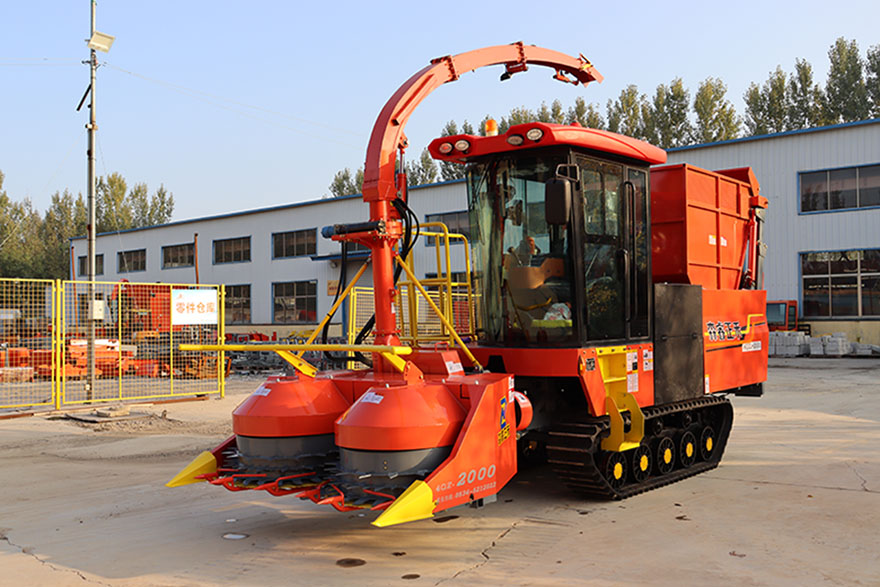

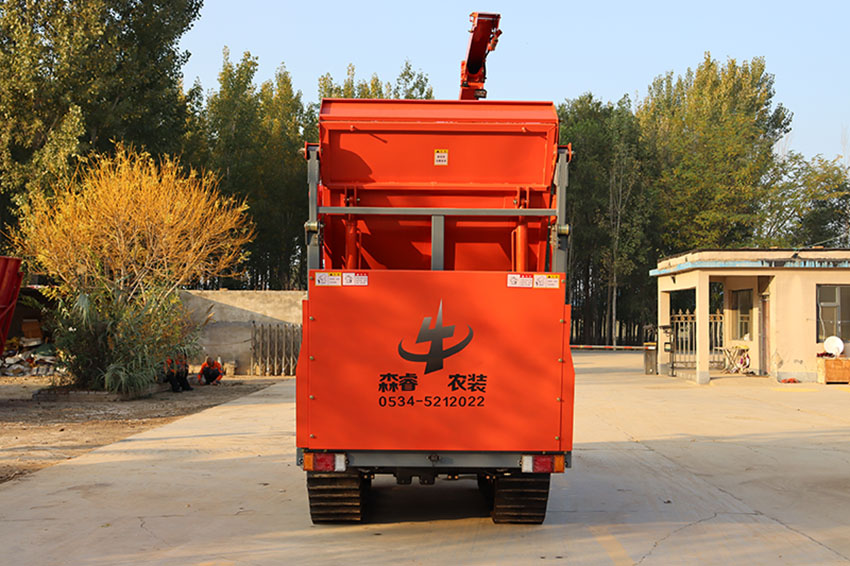

Crawler Disc Forage Harvester
Product Introduction：
Senrui Zhenghe Series 4QZL-2000 crawler self-propelled silage machine is small in size, high in efficiency, low in energy consumption, and can rotate 360°. It is flexible in action, not restricted by crop row spacing, has high operating efficiency, and safe and reliable performance! It uses a 175 horsepower engine, powerful power, and four-wheel drive. It uses a double-disc saw blade cutter, which can adapt to the non-row collection operation of all pole-shaped crops. It can complete multiple operations of green (yellow) silage crops at one time, such as cutting off the ground, sequential feeding, uniform chopping, throwing and loading.
Product Features：
●Short body, small turning radius, 360° turning on the spot, flexible and convenient operation.
●Chopping assembly: disc knife chopping device, realizes multi-level adjustable grass chopping length.
●Spray barrel assembly: The spray barrel rotation adopts worm gear mechanism, which can rotate ±180°, effectively locking the spray barrel angle, making the spraying angle more stable.
●Powertrain: 175 horsepower engine, sufficient horsepower, strong power, four-wheel drive system.
●Control/hydraulic: standard air conditioning, electronic operating handle, suspension seat, cab standard large-screen LCD display and operation monitoring system, improve the operation safety and reliability of the machine, and make driving more comfortable.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZL-2000 crawler self-propelled green fodder harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 6000*2200*4200 |
Structural quality | kg | 5200 |
Matching Engine Rated Power | kw | 129 |
Matching engine rated speed | r/min | 2300 |
Cut width (of a page) | mm | 2020 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Mechine |
Brake type | / | Friction plate type |
Guide wheel spacing | mm | / |
Guide wheel tyre specifications | / | / |
Driving Wheel Distance | mm | / |
Driving wheel tyre specifications | / | / |
Track width(self-propelled) | mm | 400 |
| Track grounding length(self-propelled) | mm | 1700 |
| Gauge(self-propelled) | mm | 1400 |
| Operating speed range | km/h | ≤6 |
Design Cutting Length | mm | 20 |
