Tracked Alfalfa Forage Harvester
Product Introduction：

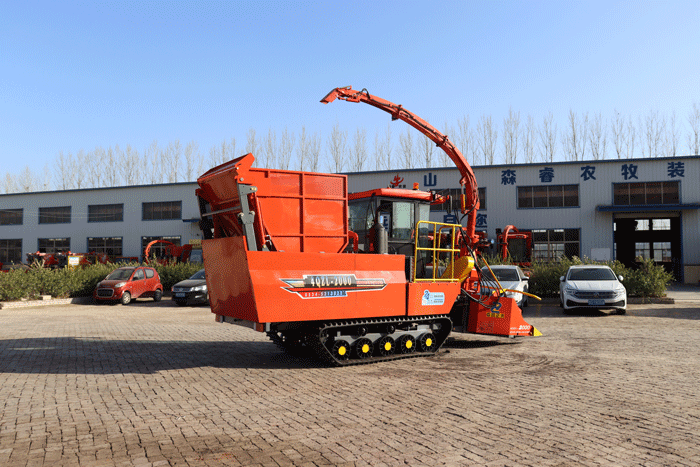

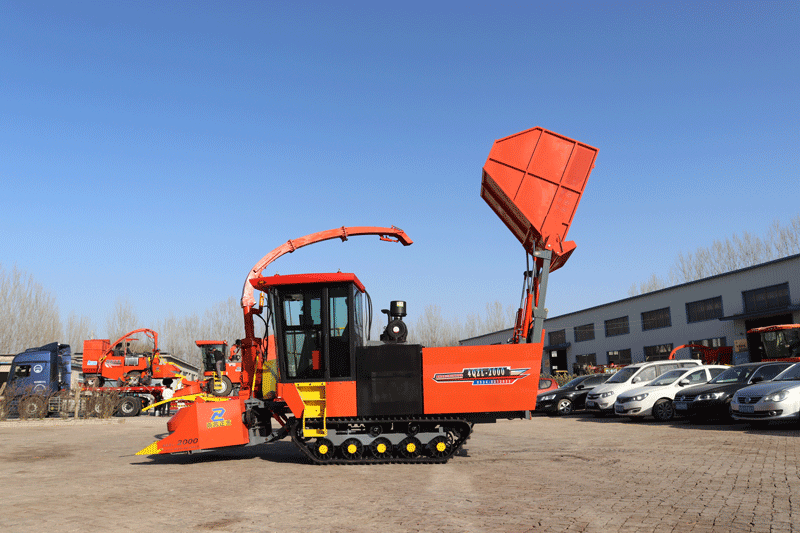

Senrui Zhenghe Series 4QZL-2000A crawler silage machine can carry out non-row harvesting operations for silage crops of various heights. The equipment is small in size, high in efficiency, low in energy consumption, widely used, and not restricted by crop row spacing. The disc silage machine header is equipped with a grain crushing device, with a crushing rate of more than 97%. The 175-horsepower engine brings endless power and four-wheel drive.
Product Features：
●The fuselage is short, the turning radius is small, and it can turn 360° in place. The operation is flexible and convenient.
●Grain crushing: Double-roll high-strength grain crushing rollers, quick replacement, grain crushing rate of more than 97%, improve the palatability and feeding rate of livestock.
●Nozzle assembly: The nozzle rotation adopts a worm gear and worm mechanism, which can rotate ±180°, effectively locking the nozzle angle and making the spraying angle more stable.
●Hopper assembly: It comes with a 3.5 cubic meter loading box. The rear tipping and unloading operation is simple. Adding a secondary lifting function can better adapt to various receiving vehicle models, and unloading is more convenient.
●Power assembly: 175 horsepower engine, with sufficient horsepower and strong power, and four-wheel drive system.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZL-2000A crawler self-propelled green fodder harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 6000*2200*4200 |
Structural quality | kg | 5770 |
Matching Engine Rated Power | kw | 129 |
Matching engine rated speed | r/min | 2300 |
Cut width (of a page) | mm | 2020 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Mechine |
Brake type | / | Friction plate type |
Guide wheel spacing | mm | / |
Guide wheel tyre specifications | / | / |
Driving Wheel Distance | mm | / |
Driving wheel tyre specifications | / | / |
Track width(self-propelled) | mm | 400 |
| Track grounding length(self-propelled) | mm | 1700 |
| Gauge(self-propelled) | mm | 1400 |
| Operating speed range | km/h | ≤6 |
Design Cutting Length | mm | 20 |
