Silage Making Equipment
Product introduction:

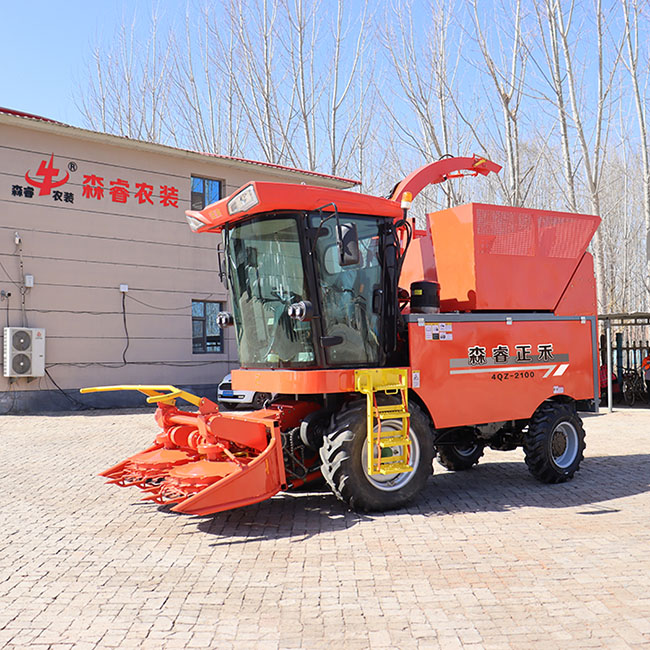

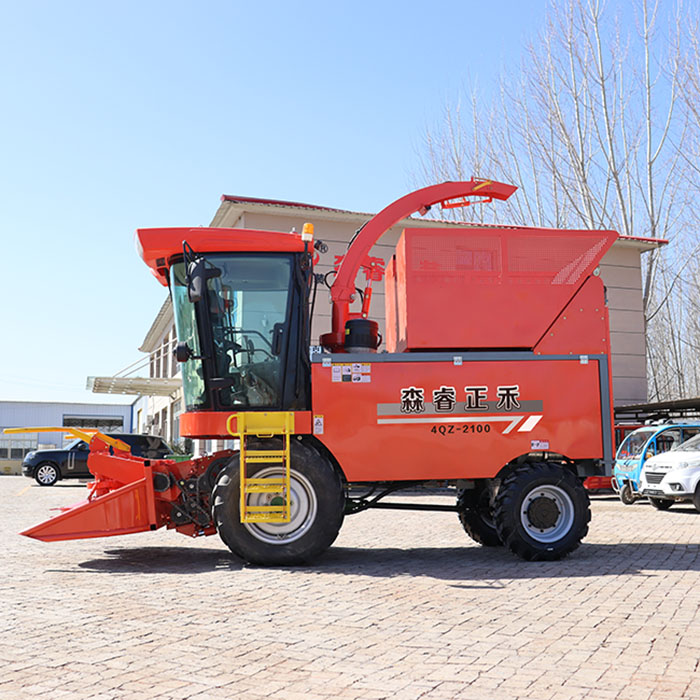

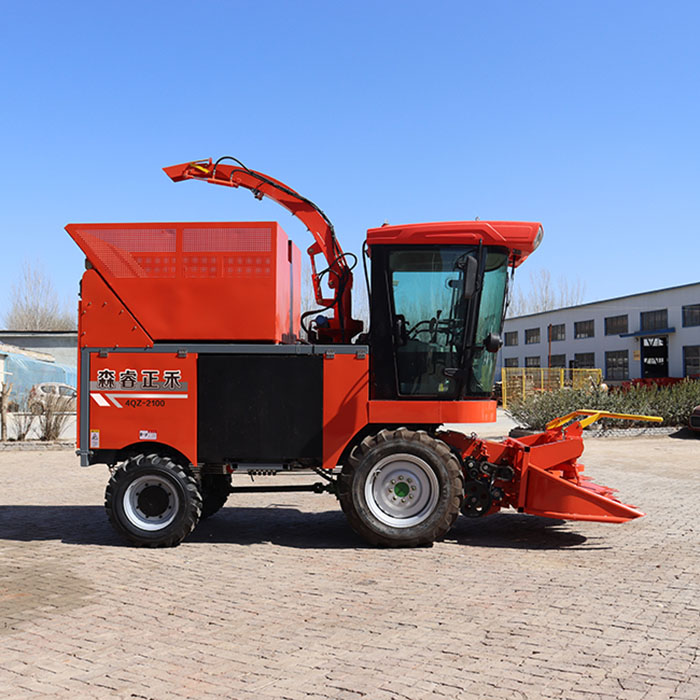

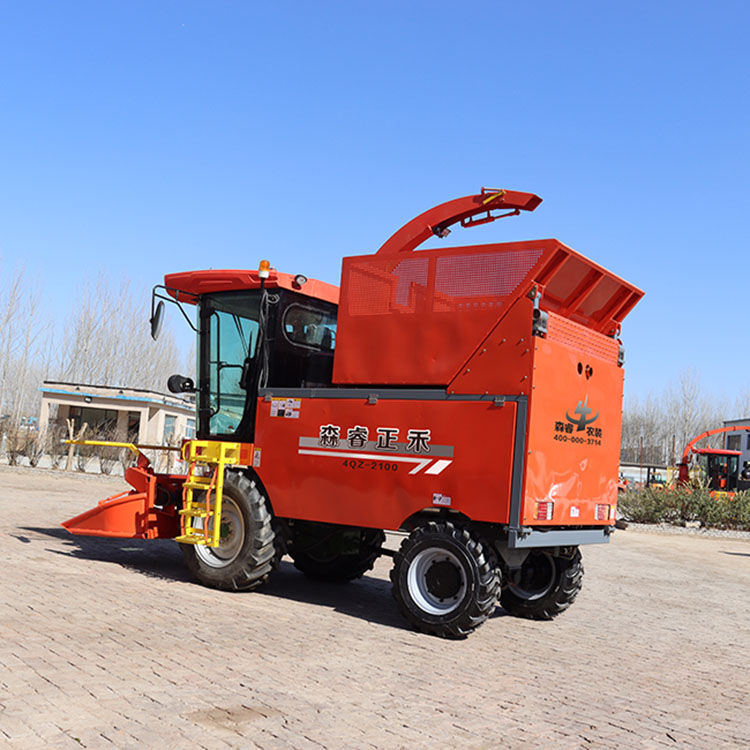

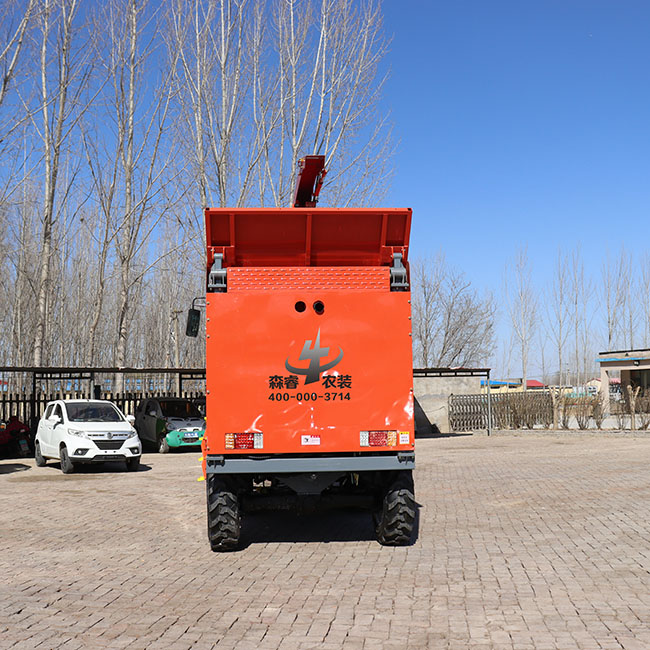

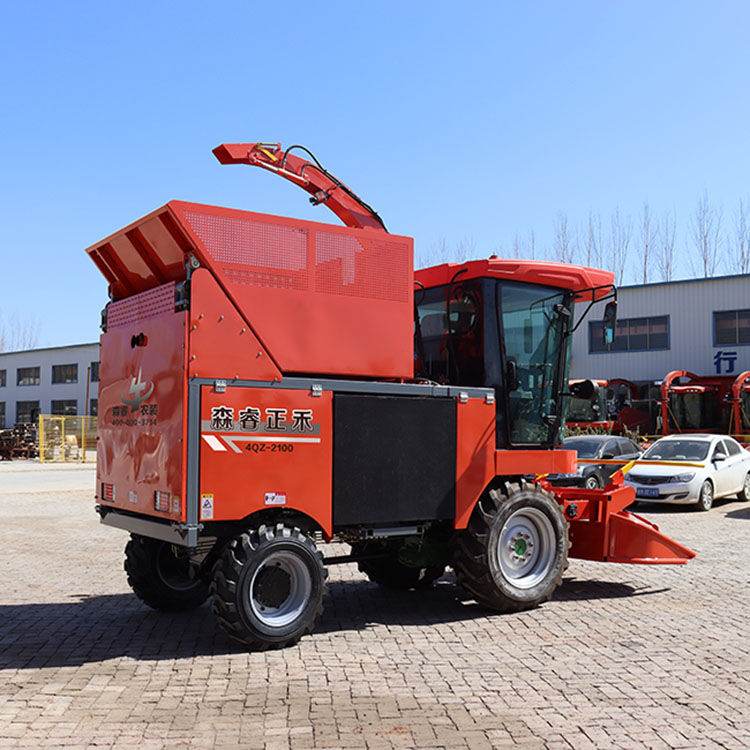

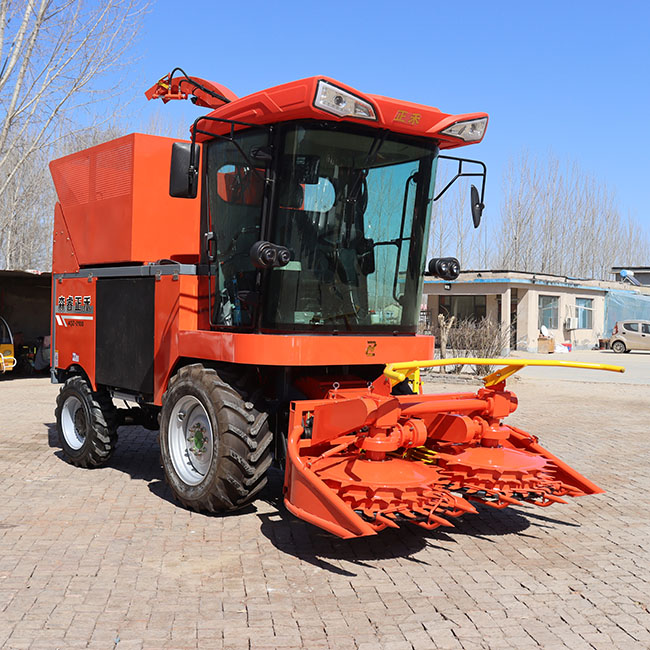

Senrui Zhenghe Series 4QZ-2100 self-propelled green fodder harvester is independently developed and produced by our company. After years of practice and the perfect combination of the latest technology, it has a novel design and can achieve non-row harvesting operations. It can complete multiple operations such as cutting off the ground, sequential feeding, uniform chopping, grain crushing, throwing and loading of green (yellow) silage crops at one time.
The machine adopts 18 double-row herringbone-shaped moving knives, an integrated main shaft design, and a double-edged fixed knife design that can be reversed and replaced, and comes standard with automatic sharpening. The power part adopts a full diesel 220 horsepower engine, PTO intelligent fuel-saving control, light load, medium load, heavy load switching function, four-wheel drive system, etc.
Product Details:
☆ Feeding assembly: Four-roller feeding chamber, segmented design, can achieve quick hook-up, horizontal clamping feeding device, improve the reliability of the whole machine, and make maintenance more convenient.
☆ Chopping assembly: Adopts 18 double-row herringbone-shaped moving knives, integrated spindle design, double-edged fixed knives, reversible replacement, and standard automatic sharpening.
☆ Grain crushing: Double-roller high-strength grain crushing rollers, grain crushing rate of more than 97%, improves the palatability and feeding rate of livestock.
☆ Powertrain: Quanchai 220 horsepower engine, PTO intelligent fuel-saving control, with light load, medium load, heavy load switching function, four-wheel drive system, etc.
Product parameter:
Projects | unit | Design value |
Model Name | / | 4QZ-2100 Self-propelled Green Forage Harvester |
Form of Construction (Hook-up) | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 5560*2200*4000 |
structural quality | kg | 6400 |
Matching power range | kW | 161.5 |
Matching engine rated speed | r/min | 2300 |
Cutting width | mm | 2050 |
Crop collecting header type | / | Straight cutting table |
Header cutter type | / | Disc cutter |
Feeding mechanism type | / | Feeding roller |
Number of feeding mechanisms | / | 4 |
Straw chopping mechanism type | / | Drum type |
Grain crushing mechanism type | Roller type | |
Speed Shift | / | Manual speed shift |
Drive mode | / | Hydraulic drive |
Brake type | / | Disc |
Steering wheel track | mm | 1600 |
Guide wheel tire specifications | / | 10.0/80-18 |
Driving wheel track | mm | 1550 |
Driving wheel tire specifications | / | 400/70R24 |
Wheelbase | mm | 2355 |
Operating speed range | km/h | ≤7 |
Design cutting length | mm | 20 |
