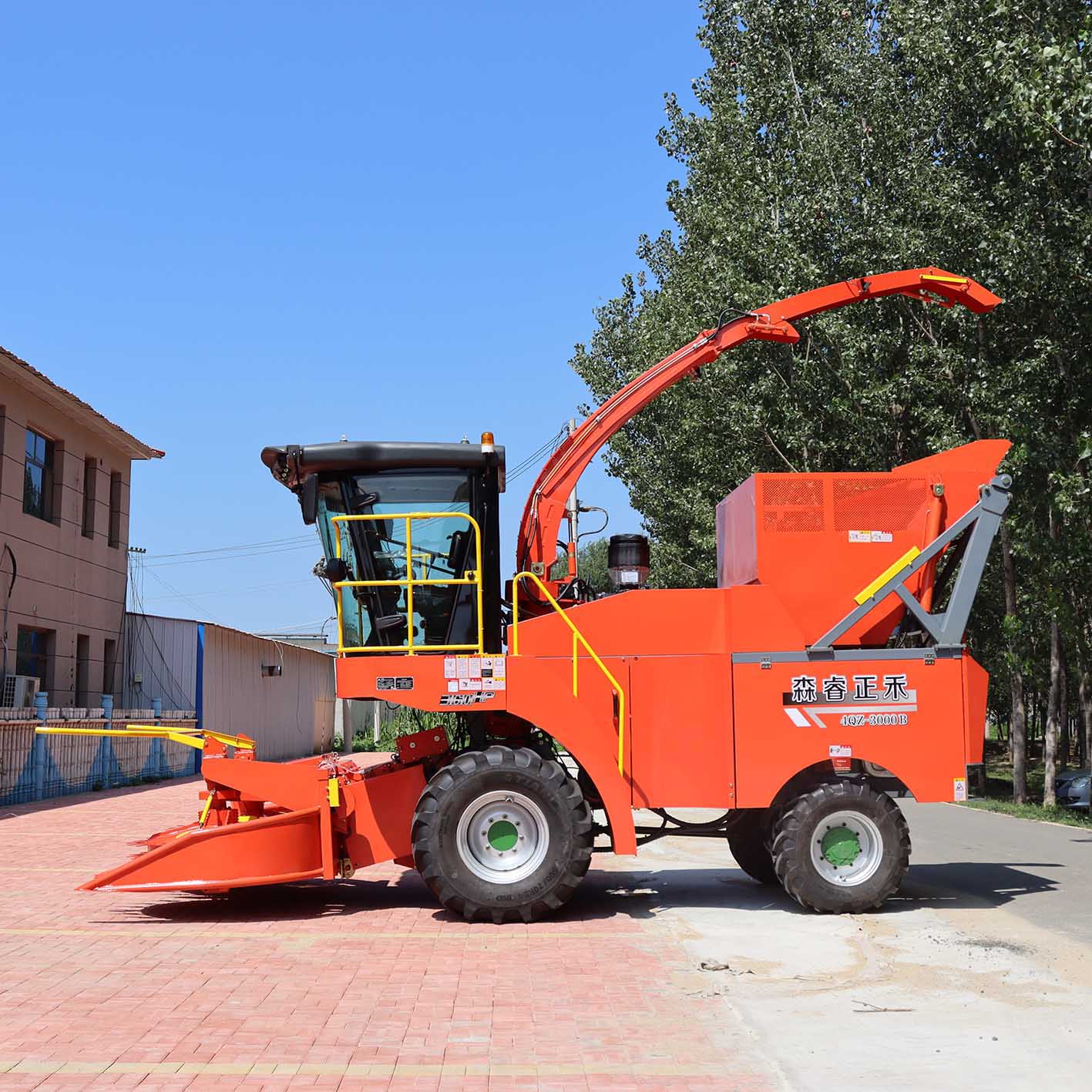

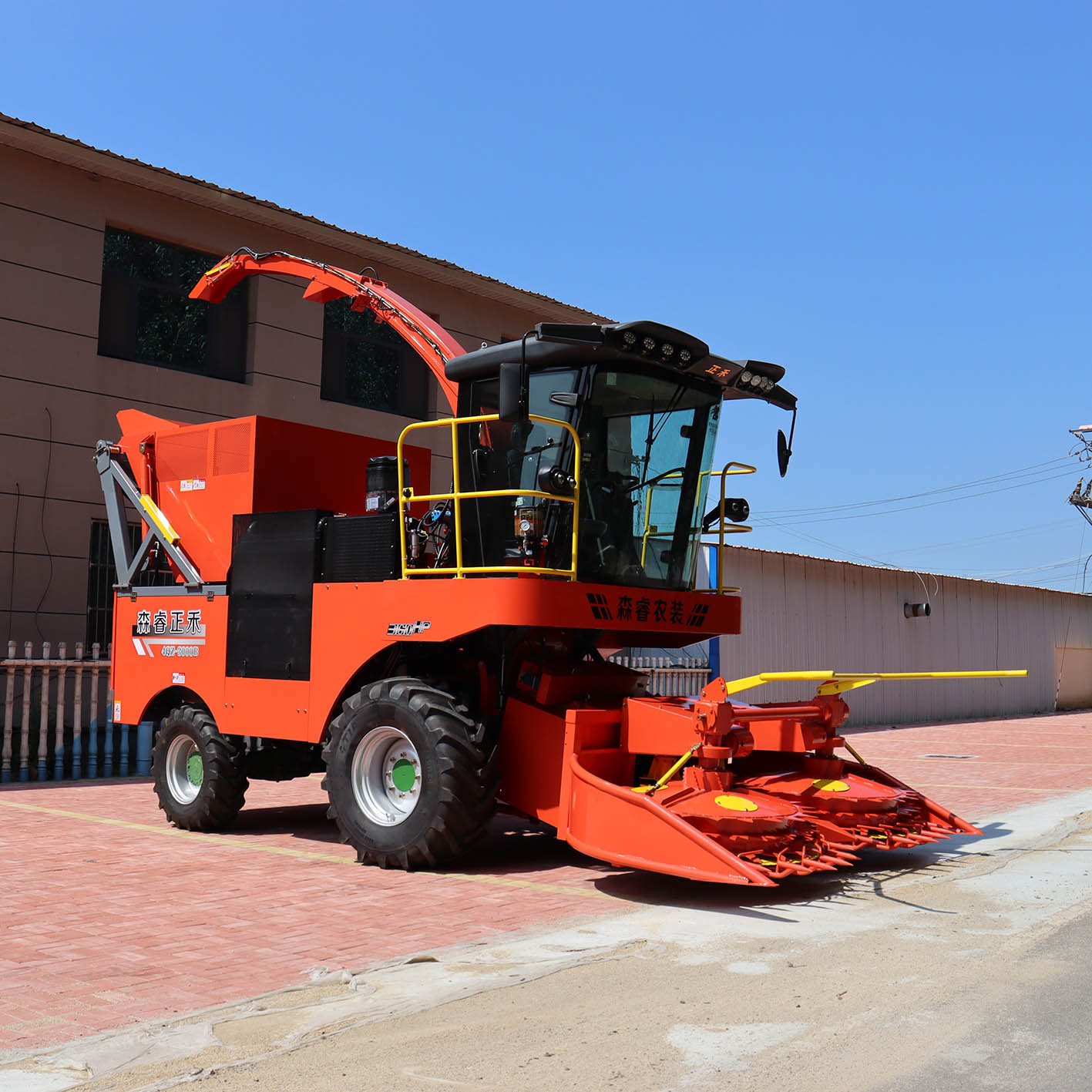

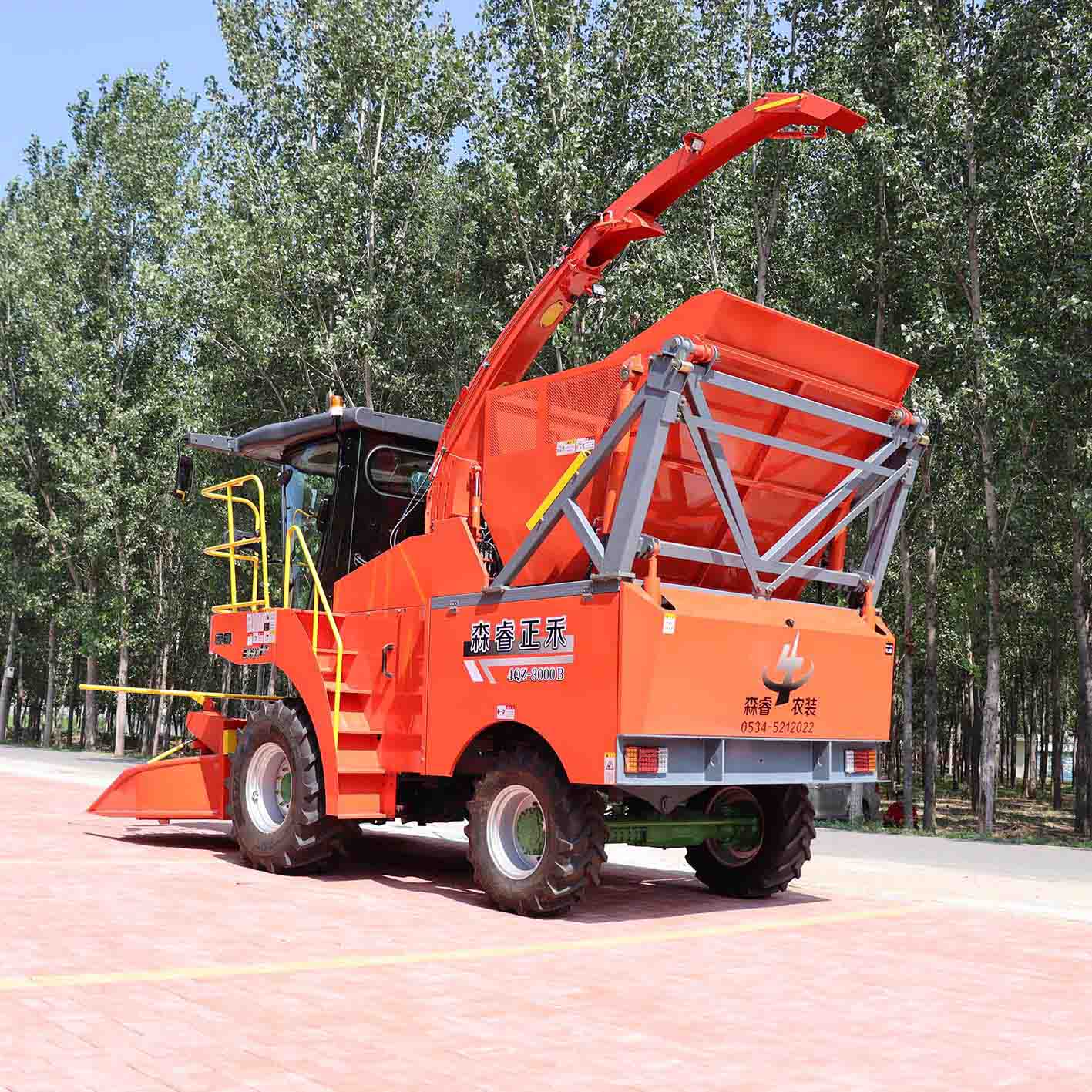

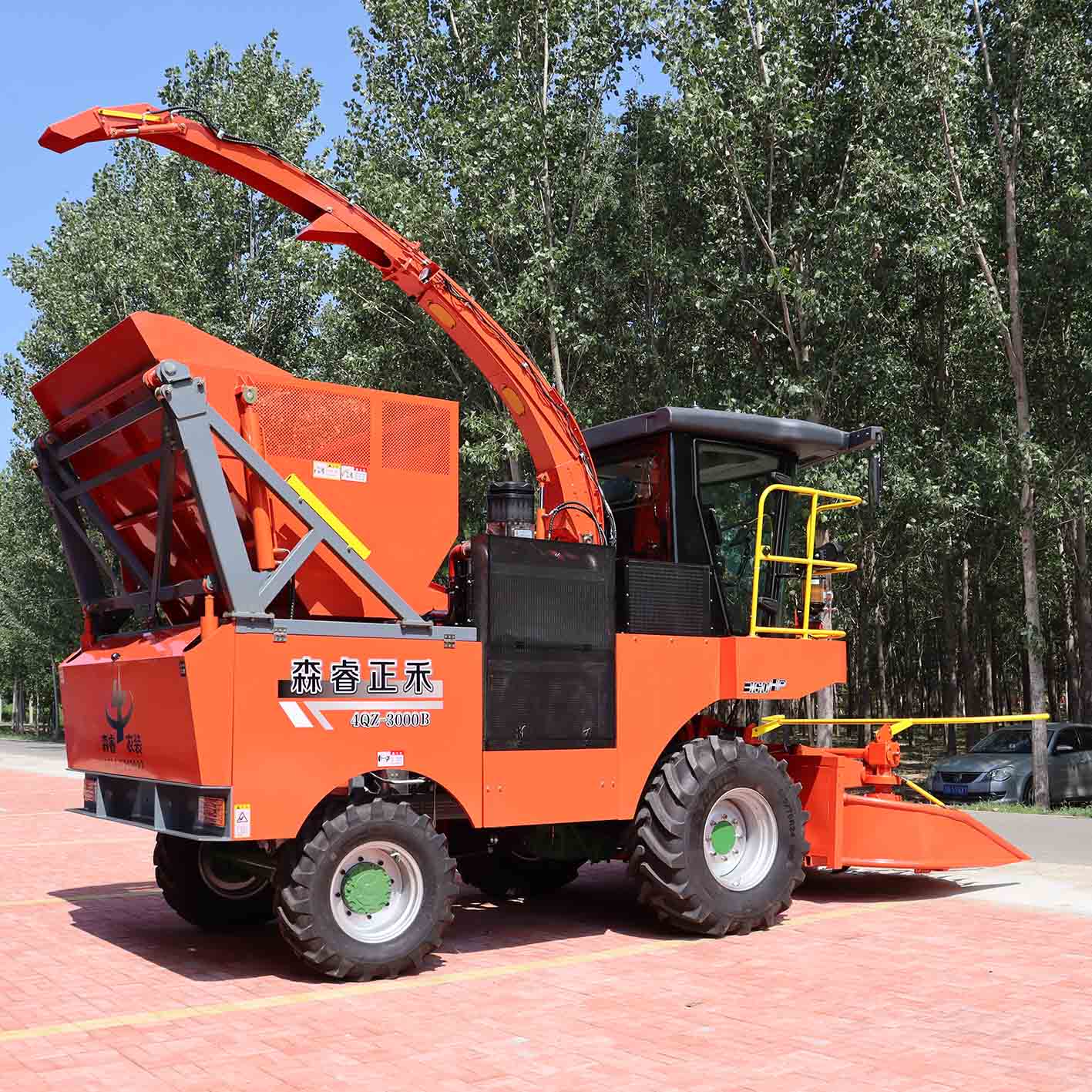

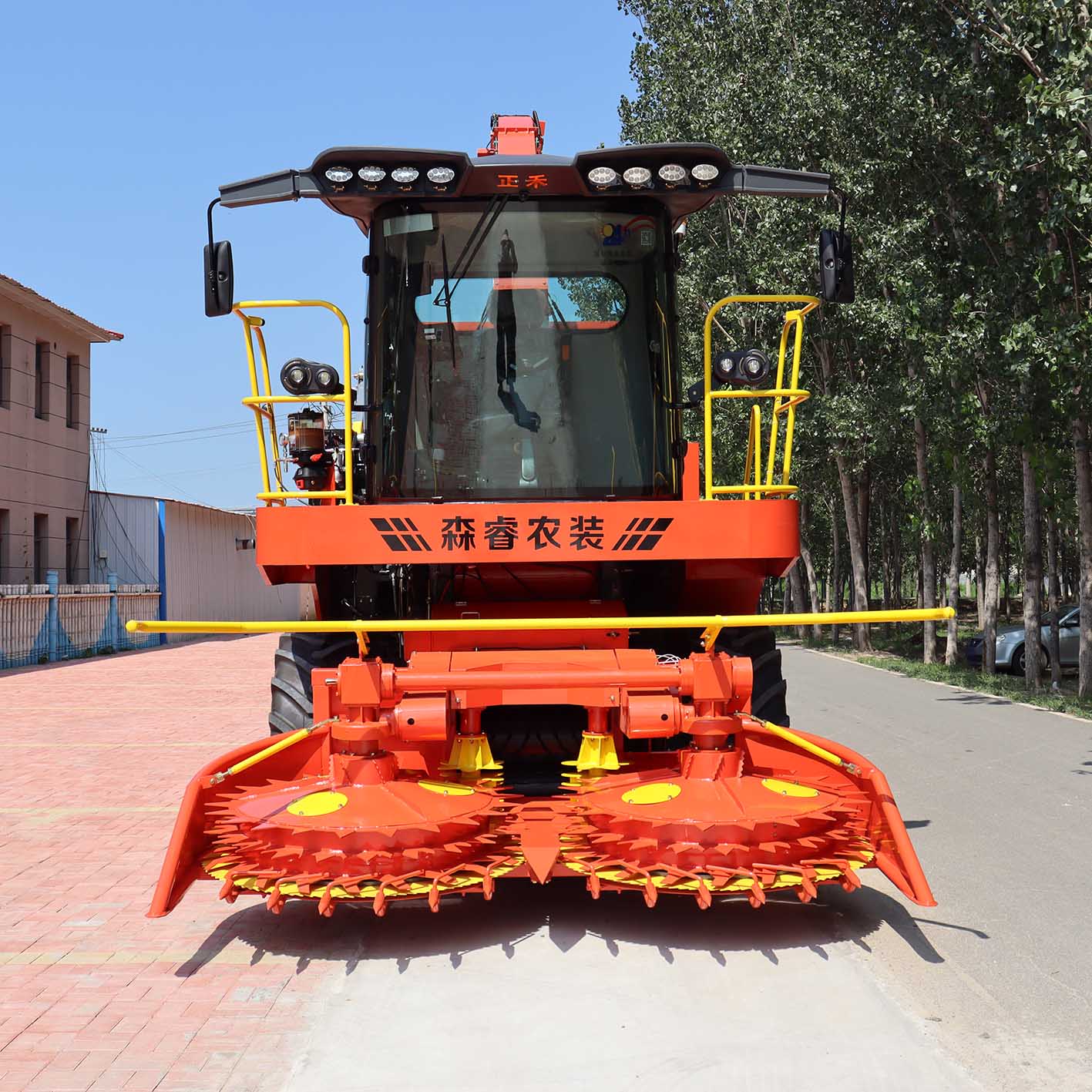

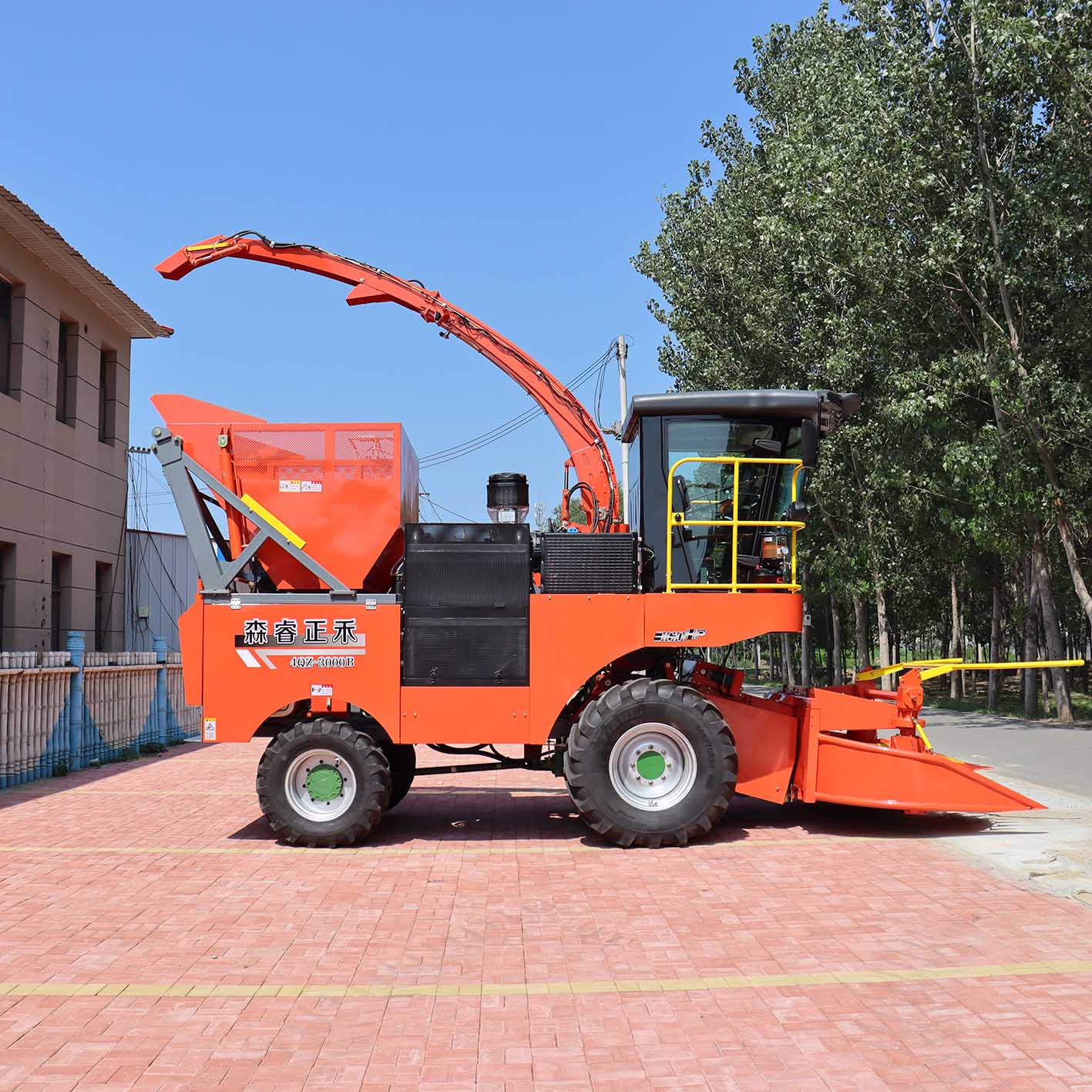

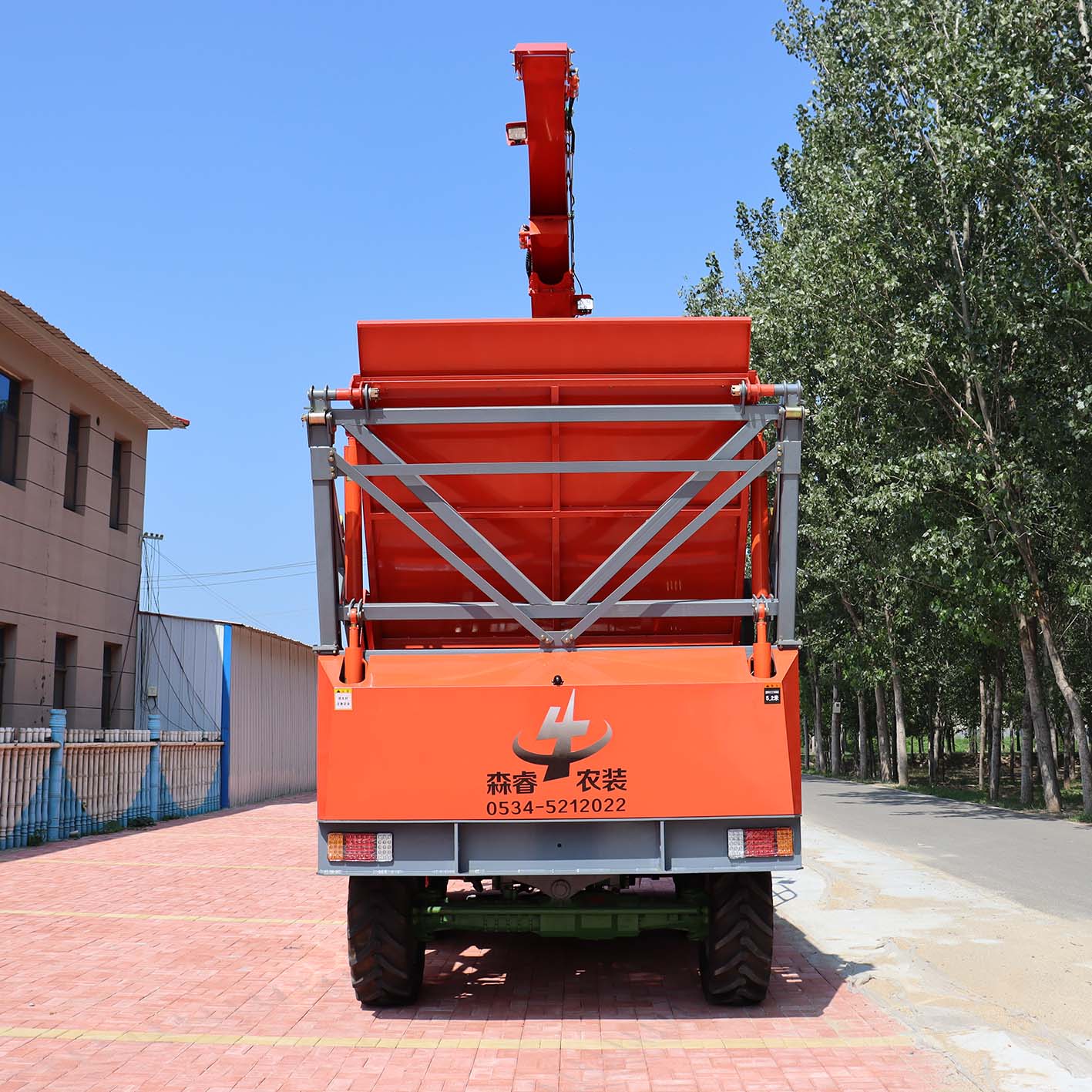

2.910m Napier Grass Forage Harvester
Product Introduction:
This machine is our own research and production of green (yellow) feed harvester, after years of practice and the perfect combination of the latest technology, the machine design is novel, complete realization of the row harvest operation. At present, it has become the leading technology and complete function of the green (yellow) feed harvester. Green (yellow) can be a one-time storage feed crops to complete cutting off the ground, sequential feeding, even chopping, grain crushing, throwing loading and other operations.
Product Features：
● The whole machine has a compact structure, small turning radius, easy operation, and reliable quality.
● Feeding assembly: Four roller feeding chamber, segmented desian, can achieve quick coupling, horizontal clamping feeding device, improves the reliability of the whole machine, and makes maintenance more convenient.
● Powertrain: Weichi 360 horsepower engine, PTO intelligent fuel saving control, with light load, medium load, and heavy load switching functions, optional receiving vehicle models, making unloading more convenient. four-wheel drive according to the application terrain, etc
● Material box assembly: Comes with a loading box, easy to flip and unload, with added secondary lifting function to better adapt to various material
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-3000B Self-propelled Green Forage Harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 7300×3030×5100 |
Structural quality | kg | 9740 |
Matching Engine Rated Power | kw | 265 |
Matching engine rated speed | r/min | 2200 |
Cut width (of a page) | mm | 2910 |
Crop collecting header type | / | Straight cutting table |
Header cutter type | / | Disc cutter |
Feeding mechanism type | / | Feeding roller |
Number of feeding mechanisms | / | 2 pairs |
Straw chopping mechanism type | / | Drum type |
Grain crushing mechanism type | / | Roller type |
Cab type | / | Normal |
Speed Shift | / | Manual speed shift |
Drive mode | / | Hydraulic drive |
Brake method | / | Drum |
Steering wheel track | mm | 1980 |
Guide wheel tire specifications | / | 340/80R20 |
Driving wheel track | mm | 2280 |
| Driving wheel tire specifications | / | 500/70R24 |
| Wheelbase | mm | 2500 |
| Operating speed range | km/h | ≤7 |
Design Cutting Length | mm | 20 |
