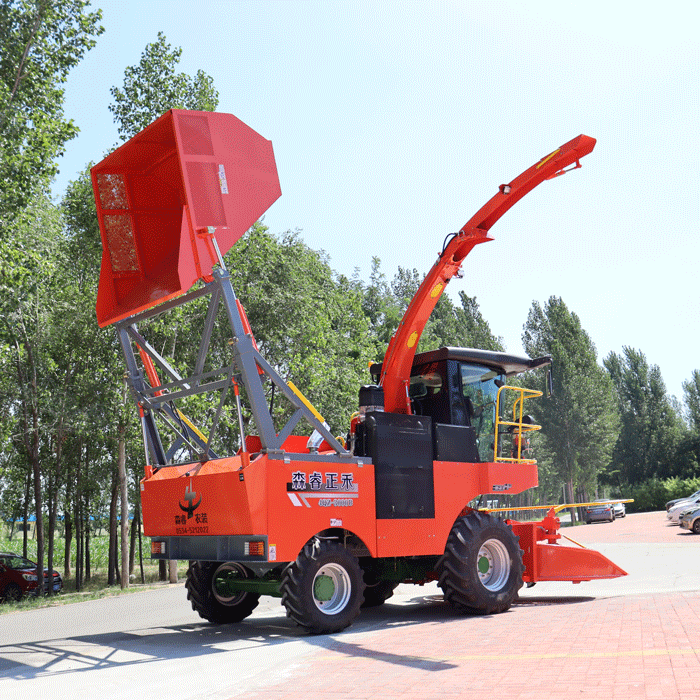

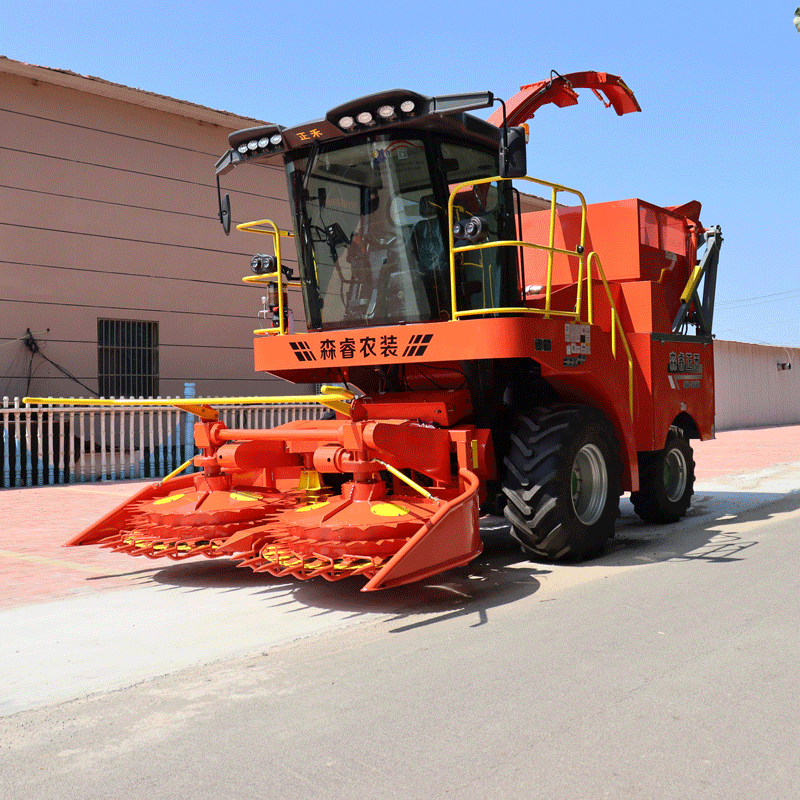

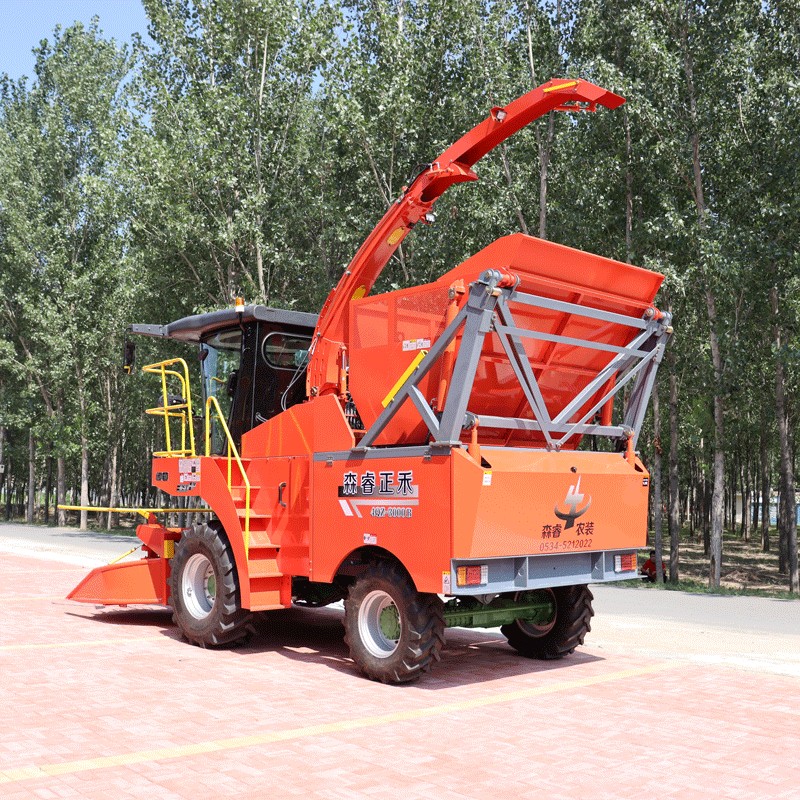

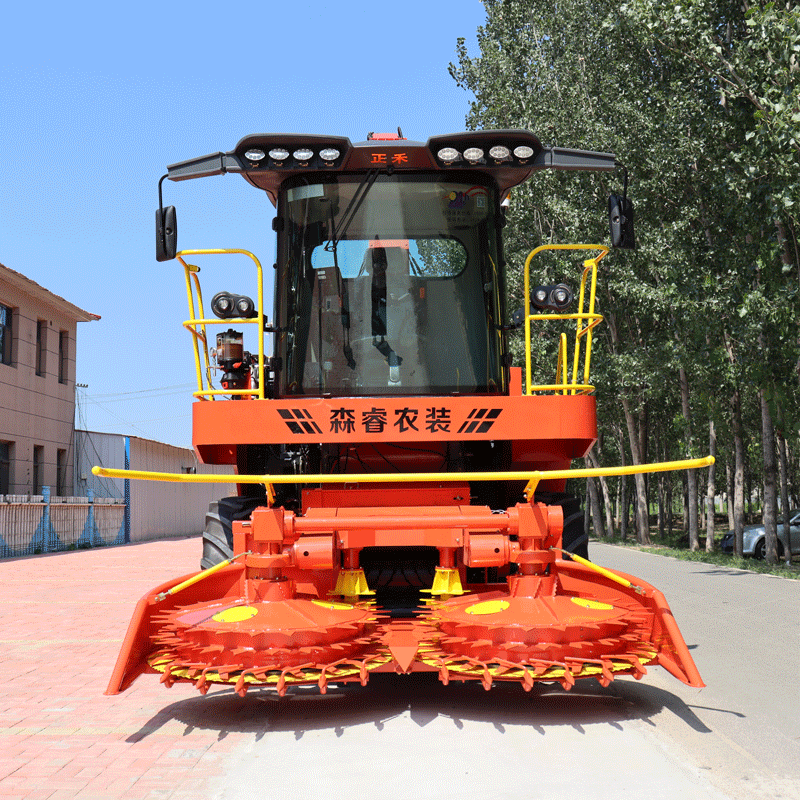

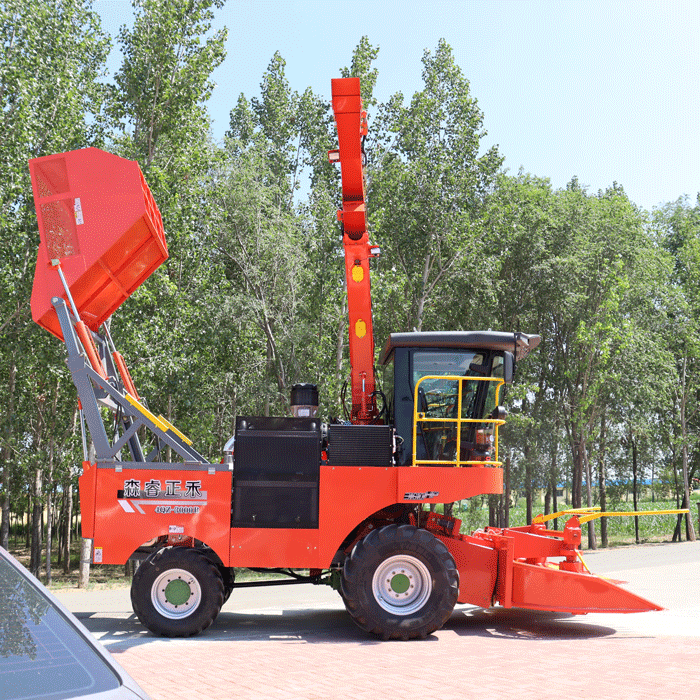

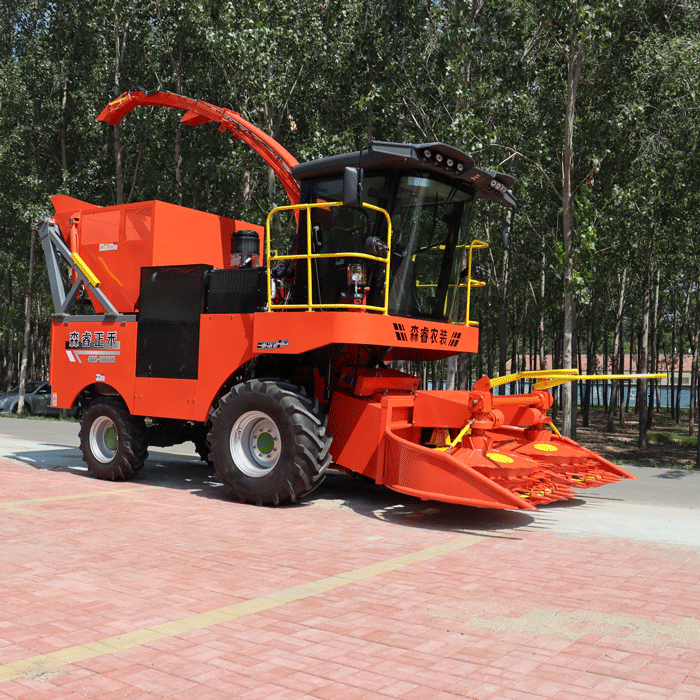

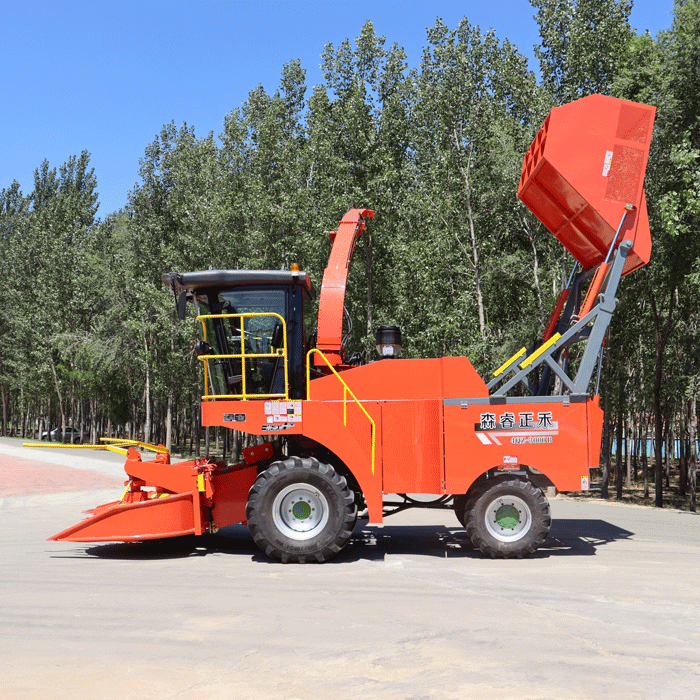

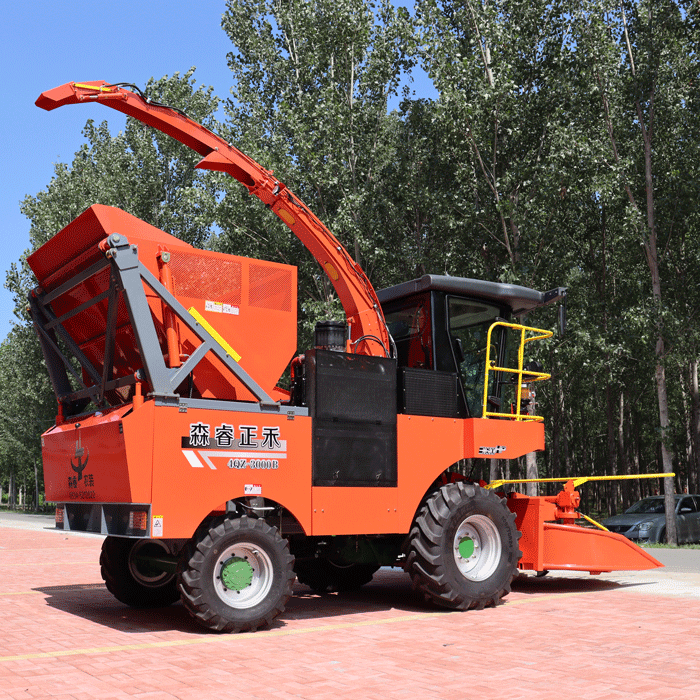

2.910m Grain Crushing Silage Harvester
Product Introduction:
The Senrui Zhenghe series 4QZ-3000B self-propelled forage harvester is independently developed and manufactured by our company, seamlessly integrating years of practical experience with the latest technologies. Its innovative design allows for fully non-row harvesting. Equipped with a 360-horsepower Weichai engine, it boasts ample horsepower and powerful performance, with two-wheel drive and four-wheel drive options available. The cab comes standard with air conditioning, electronic operating handles, a suspension seat, a large LCD display, and an operation monitoring system, enhancing operational safety, reliability, and intelligence. Its hydrostatic drive ensures a comfortable ride.
Product Features：
● The machine features a compact structure, a small turning radius, easy operation, and reliable quality.
● Feeding Assembly: The four-roller feed chamber features a segmented design for quick attachment and a horizontal clamping feed mechanism, enhancing overall reliability and facilitating maintenance.
● Chopping Assembly: Utilizes 24 double-row herringbone-shaped rotating blades, an integrated main shaft, and a double-edged, reversible, and interchangeable fixed blade. Automatic blade sharpening is standard.
● Kernel Crushing: High-strength, double-roller kernel crushing rollers achieve a kernel crushing rate exceeding 97%, improving livestock palatability and feed intake.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-3000B Self-propelled Green Forage Harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 7300×3030×5100 |
Structural quality | kg | 9740 |
Matching Engine Rated Power | kw | 265 |
Matching engine rated speed | r/min | 2200 |
Cut width (of a page) | mm | 2910 |
Crop collecting header type | / | Straight cutting table |
Header cutter type | / | Disc cutter |
Feeding mechanism type | / | Feeding roller |
Number of feeding mechanisms | / | 2 pairs |
Straw chopping mechanism type | / | Drum type |
Grain crushing mechanism type | / | Roller type |
Cab type | / | Normal |
Speed Shift | / | Manual speed shift |
Drive mode | / | Hydraulic drive |
Brake method | / | Drum |
Steering wheel track | mm | 1980 |
Guide wheel tire specifications | / | 340/80R20 |
Driving wheel track | mm | 2280 |
| Driving wheel tire specifications | / | 500/70R24 |
| Wheelbase | mm | 2500 |
| Operating speed range | km/h | ≤7 |
Design Cutting Length | mm | 20 |
