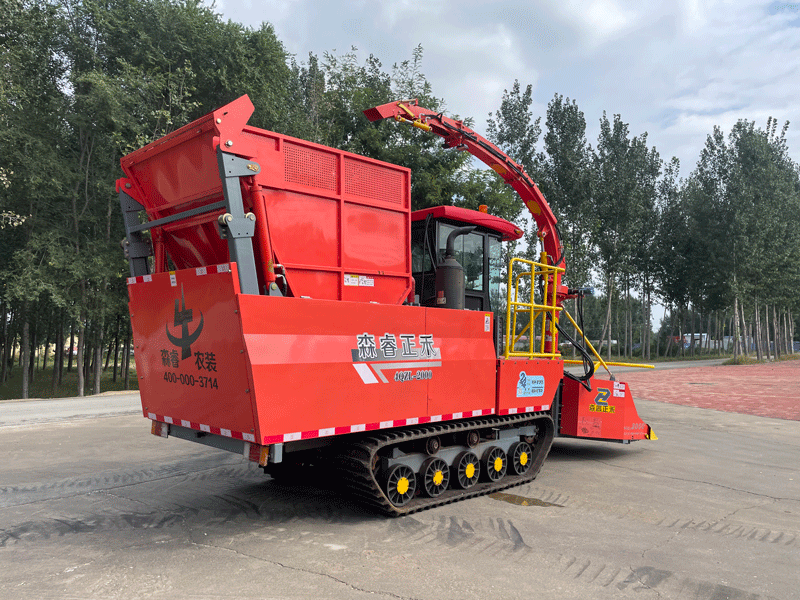

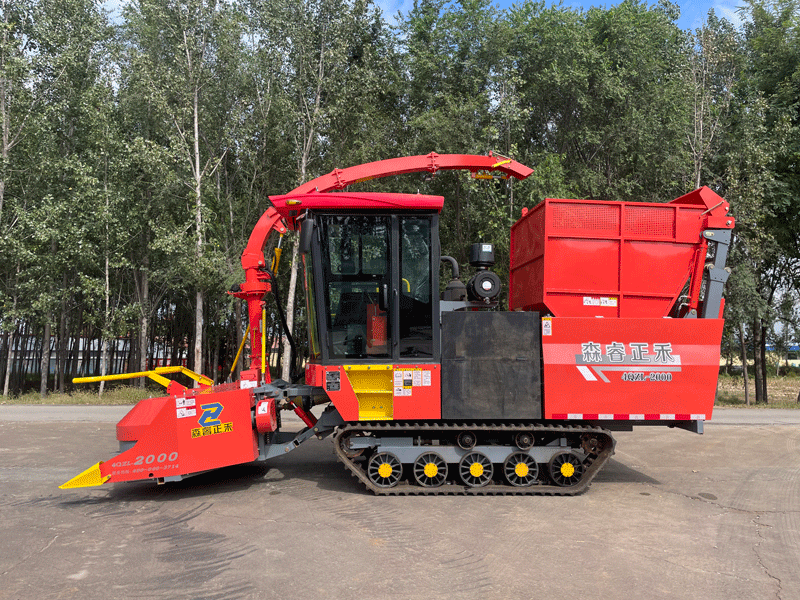

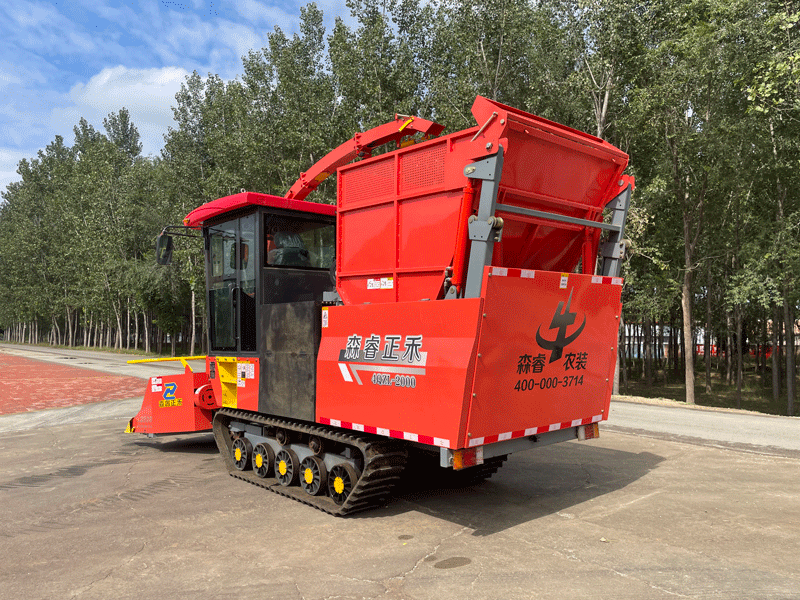

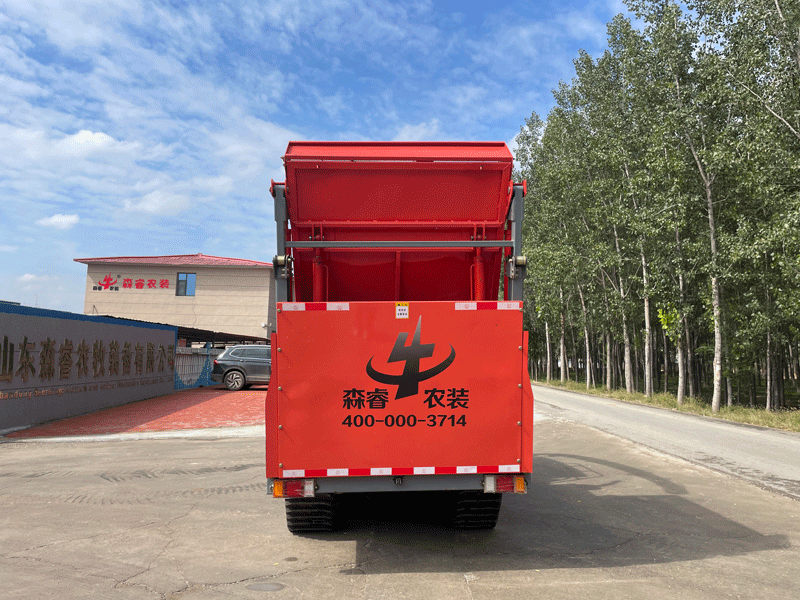

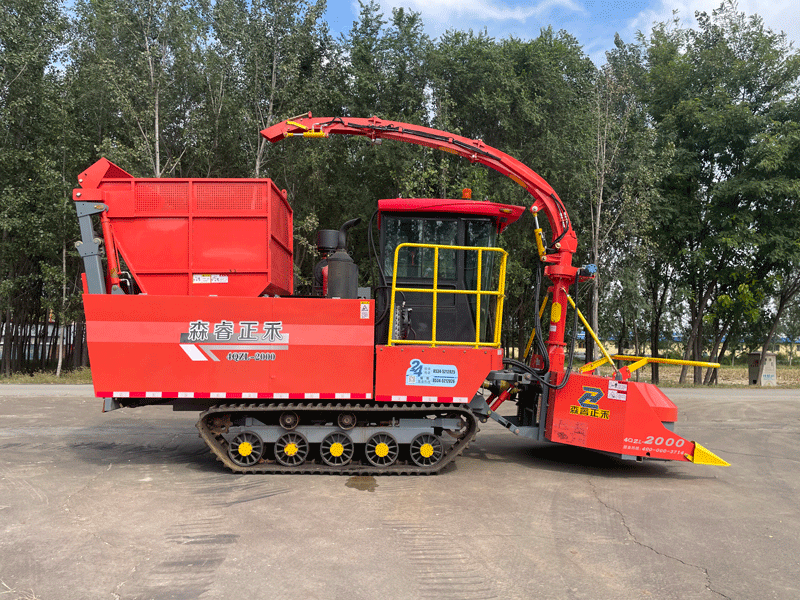

Crawler Model 175HP Silage Harvesting All-in-one Machine
Product Introduction:
Senrui 4QZL-2000 tracked silage harvester has become the preferred equipment for silage operations in various farms and pastures due to its precise structural design and strong core performance. The equipment is equipped with a crawler chassis and a flexible control system to adapt to a variety of complex terrains. The 175-horsepower engine provides sufficient power, and the double-disc header enables efficient harvesting without rowing.
Product Features：
It can rotate 360° in situ and is suitable for all-terrain harvesting operations. The crawler chassis has a large ground contact area and strong traction, and can drive stably on complex terrain such as hills, mountains, and wetlands.
Equipped with a 175-horsepower engine, it can be used in various farms and pastures. The power output is strong and stable, and the energy consumption is reasonable. It can not only meet the scattered harvesting needs of small farms, but also adapt to the large-scale and continuous operations of large ranches.

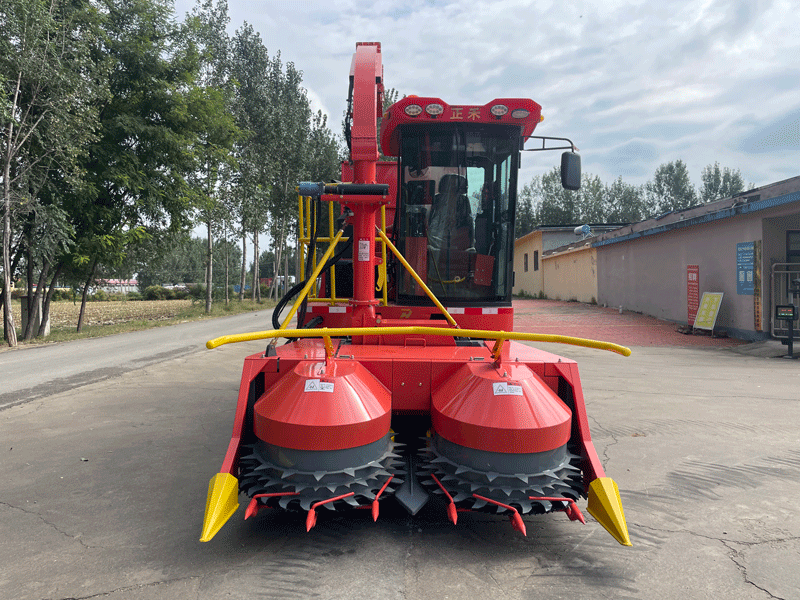

It adopts a double-disc saw blade design, which is not restricted by crop row spacing. It can efficiently harvest various silage crops such as corn stalks, bamboo grass, sweet elephant grass, etc., and cut neatly, reduce crop loss, and improve harvesting efficiency.
The spray barrel adopts a worm gear mechanism and can rotate ±180°. It has stable transmission and good self-locking properties. It can accurately lock the spray angle. The spray barrel rotates flexibly. The feed can be directly thrown to the transport vehicle during follow-up operations without the need for secondary transfer, saving time and effort.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZL-2000 crawler self-propelled green fodder harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 6000*2200*4200 |
Structural quality | kg | 5200 |
Matching Engine Rated Power | kw | 129 |
Matching engine rated speed | r/min | 2300 |
Cut width (of a page) | mm | 2020 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Mechine |
Brake type | / | Friction plate type |
Guide wheel spacing | mm | / |
Guide wheel tyre specifications | / | / |
Driving Wheel Distance | mm | / |
Driving wheel tyre specifications | / | / |
Track width(self-propelled) | mm | 400 |
| Track grounding length(self-propelled) | mm | 1700 |
| Gauge(self-propelled) | mm | 1400 |
| Operating speed range | km/h | ≤6 |
Design Cutting Length | mm | 20 |
