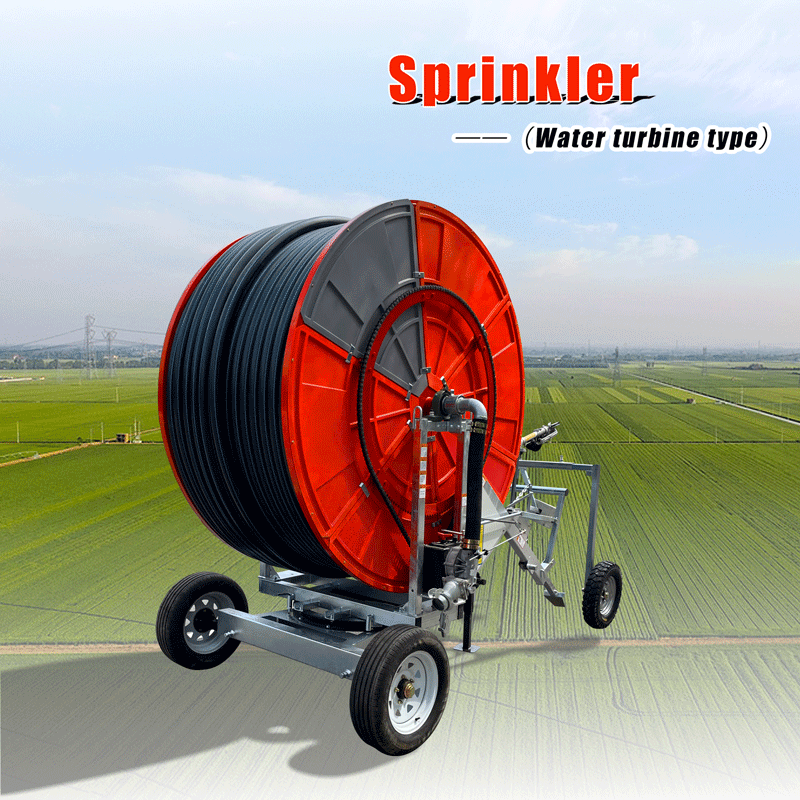

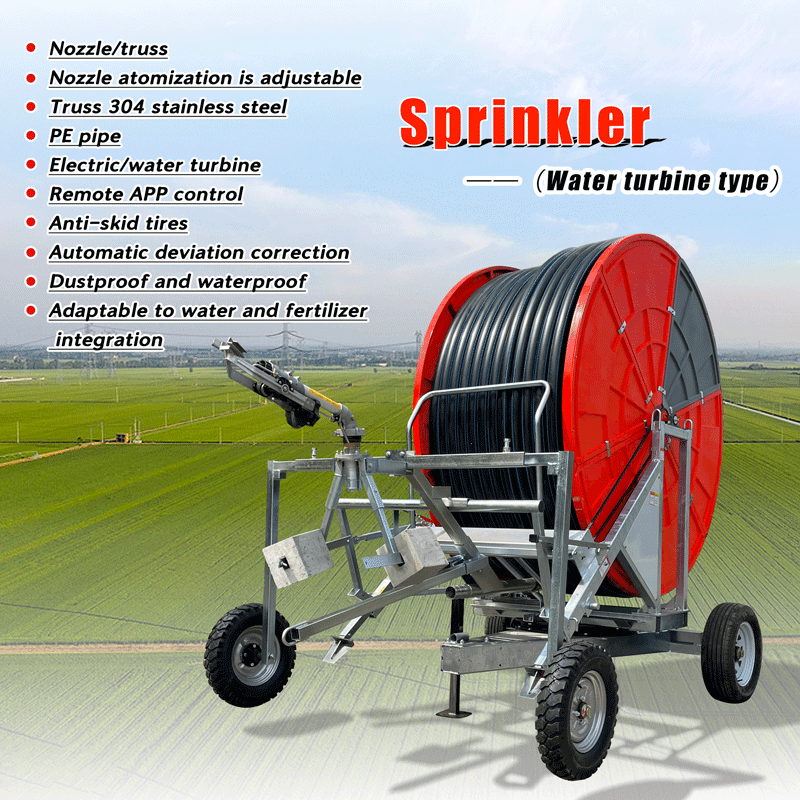

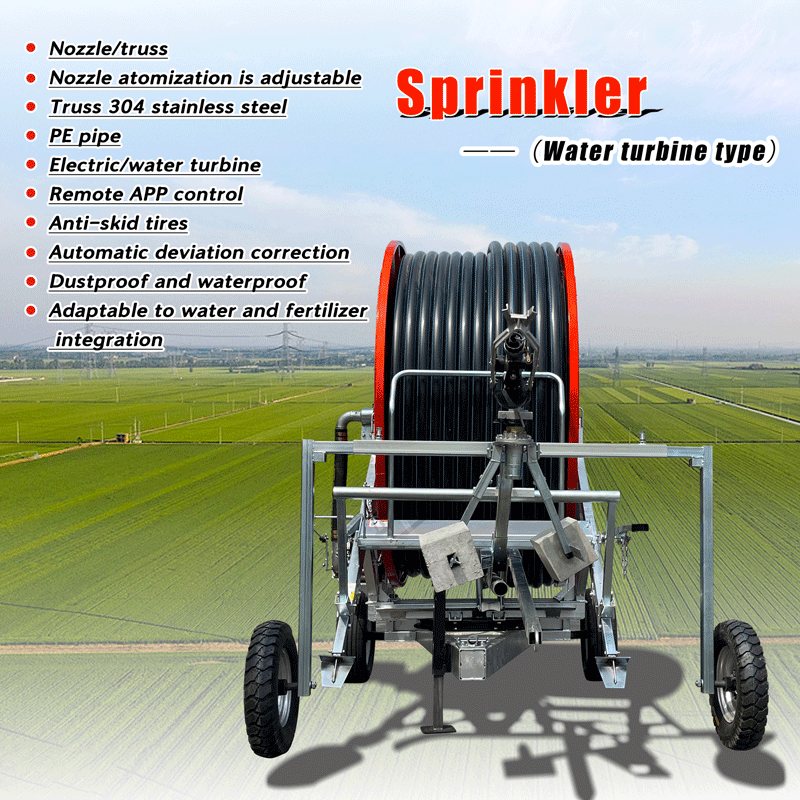

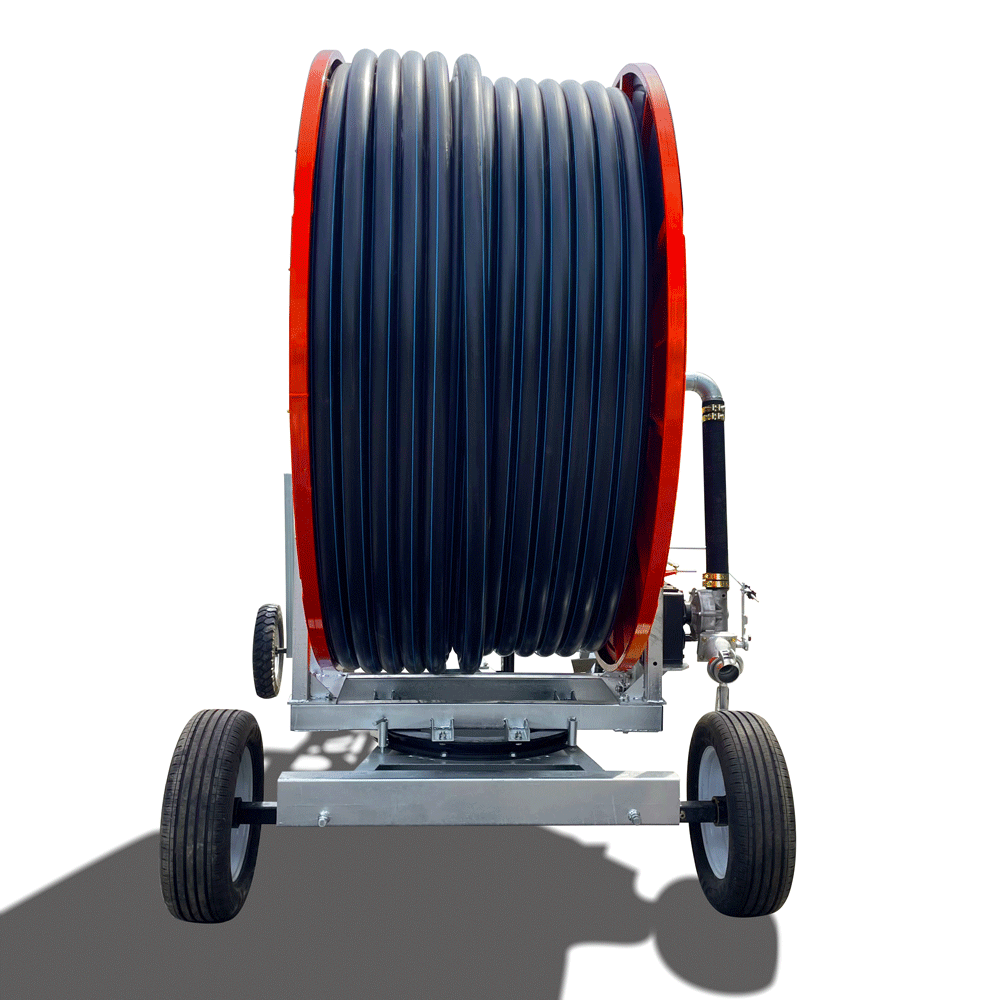

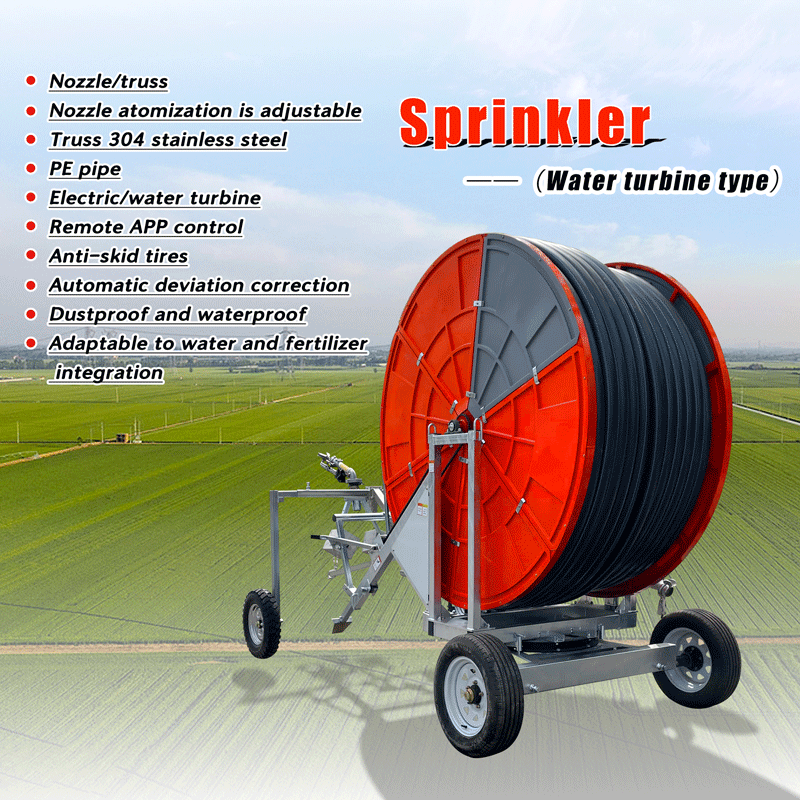

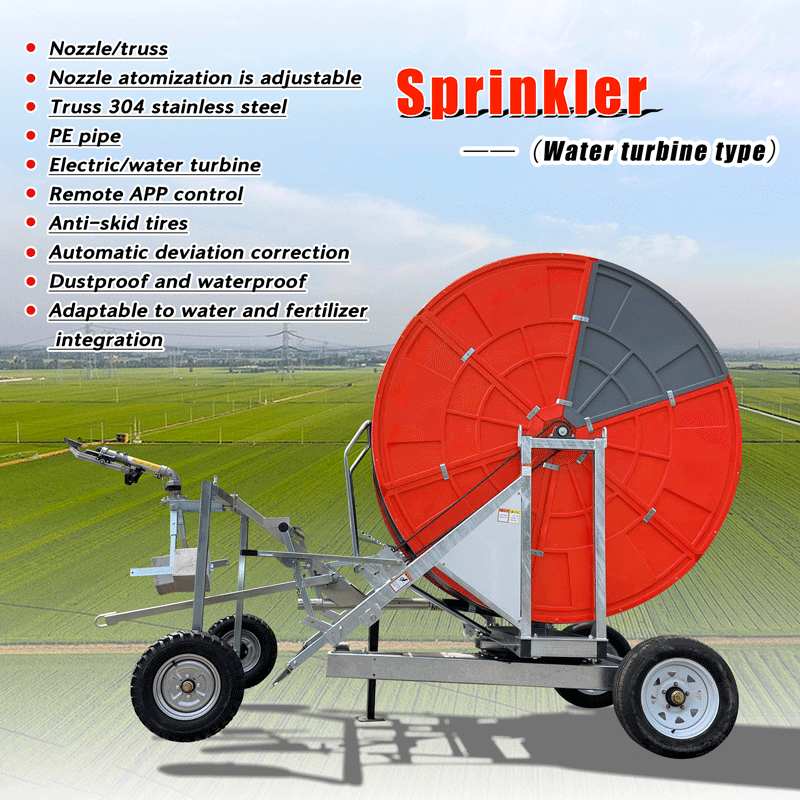

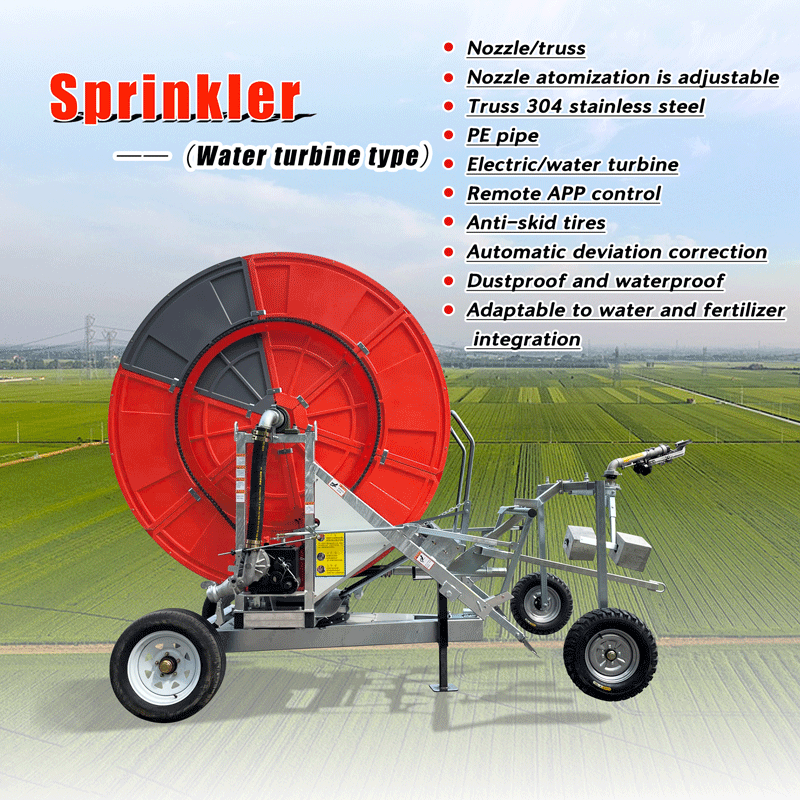

Mobile Hose Watering Sprinkler Equipment for Farm
Product Description:
The reel sprinkler is a highly efficient water-saving irrigation equipment suitable for fields such as farmland, orchards, lawns and gardens.The main types include vertical rocker-arm spray guns and trusses, which can adapt to different terrains and planting scales. The product has the characteristics of automatic control, corrosion-resistant materials and low energy consumption. Some models support intelligent adjustment of sprinkler intensity and range to achieve precise irrigation.
Product Features：
Drive and Control：Electric/water turbine drive is optional. The electric type has low noise and zero emission, which is suitable for closed environments such as greenhouses; the hydraulic type has strong power and can adapt to complex terrain.Intelligent control systems (such as remote APP control) can preset irrigation paths and times to achieve precise irrigation.
Traveling Mechanism：The wheel set is equipped with anti-skid tires, which are suitable for muddy and sandy land and reduce ground rolling damage.
Protection and Maintenance：Key components (such as motors and bearings) are equipped with dust covers and waterproof seals to adapt to harsh working conditions.Modular design facilitates troubleshooting and allows for quick replacement of parts during maintenance, reducing downtime.
Automatic Correction Function：The automatic deviation correction function ensures straight walking and avoids irrigation overlap or leakage.
Product parameter:
| NO. | Projects | Unit | Design value |
| 1 | Model Name | / | JP75-300/400/500 winch sprinkler |
| 2 | Overall dimensions (length x width x height) | mm | 5030×1900×2600 |
| 3 | Winch rewinding drive mode | / | Water Turbine/Electric Motor |
| 4 | Winch rewinding speed change mode | / | Gearbox |
| 5 | Winch horizontal steering angle | ( °) | 20~320 |
| 6 | Winch winding layers | / | 5 |
| 7 | Coil material | / | PE pipe |
| 8 | Coil outer diameter | mm | 75 |
| 9 | Coil wall thickness | mm | 6.3 |
| 10 | Coil length | mm | 300000/400000/500000 |
| 11 | Nozzle Model | / | Gantry Type |
| 12 | Driving mode of sprinkler carriage | / | Traction |
| 13 | Nozzle wheel distance | mm | 1300~2430 |
| 14 | Sprinkler vehicle passes through the gap | mm | 1200 |
| 15 | Injection device type | / | Vertical Rocker Spray Gun/Truss |
| 16 | Number of injection devices | / | 1 |
| 17 | Injection device model | / | 50PYC |
| 18 | Rated flow of matching water pump | m³/h | 20~40 |
| 19 | Supporting water pump head | m | 50~100 |
| 20 | Rated power of spray jacket water pump | kw | 7.5~15 |
| 21 | Transportation gap | mm | 260 |
