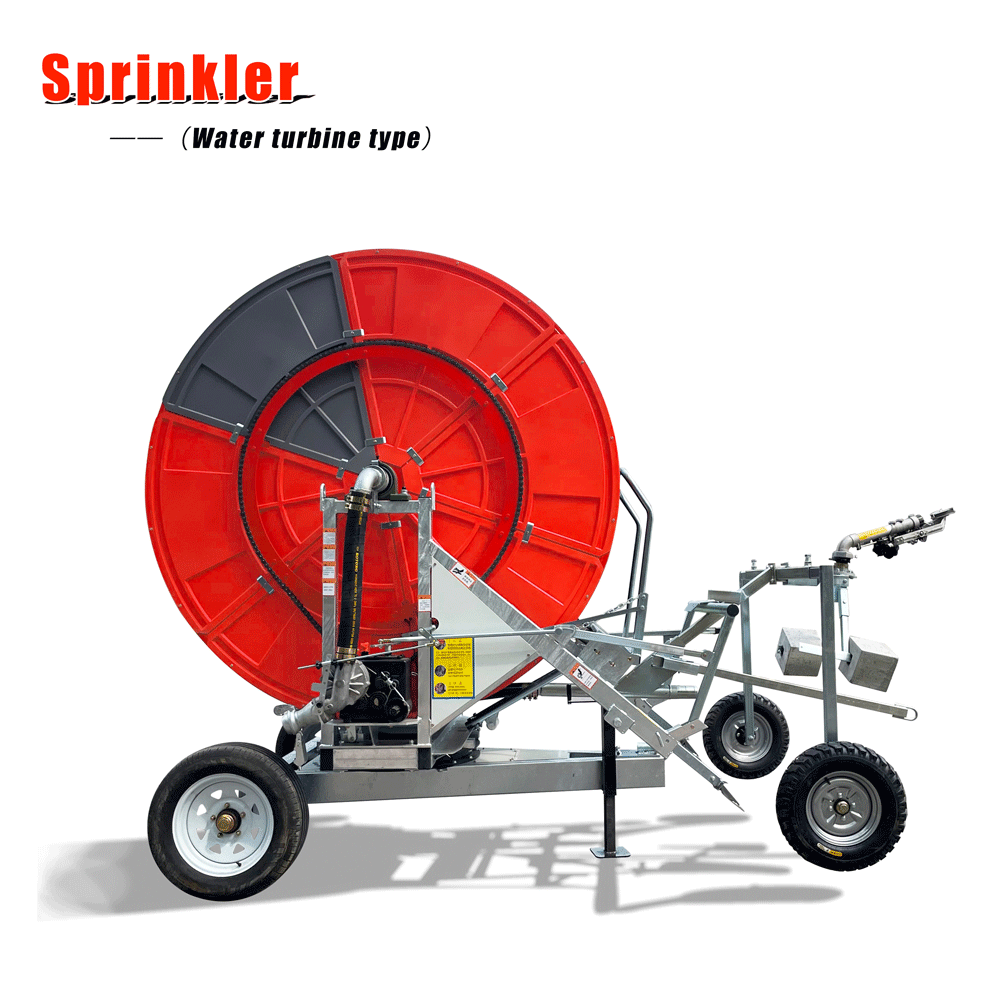

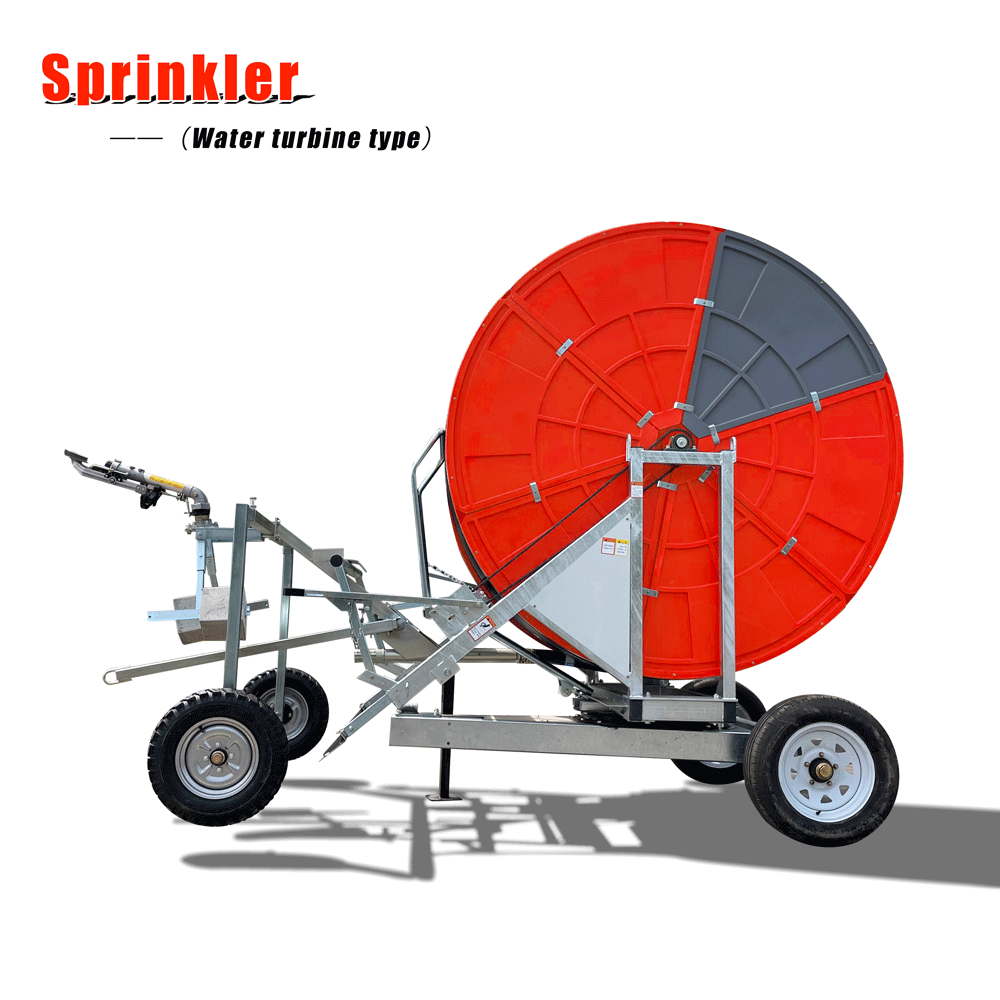

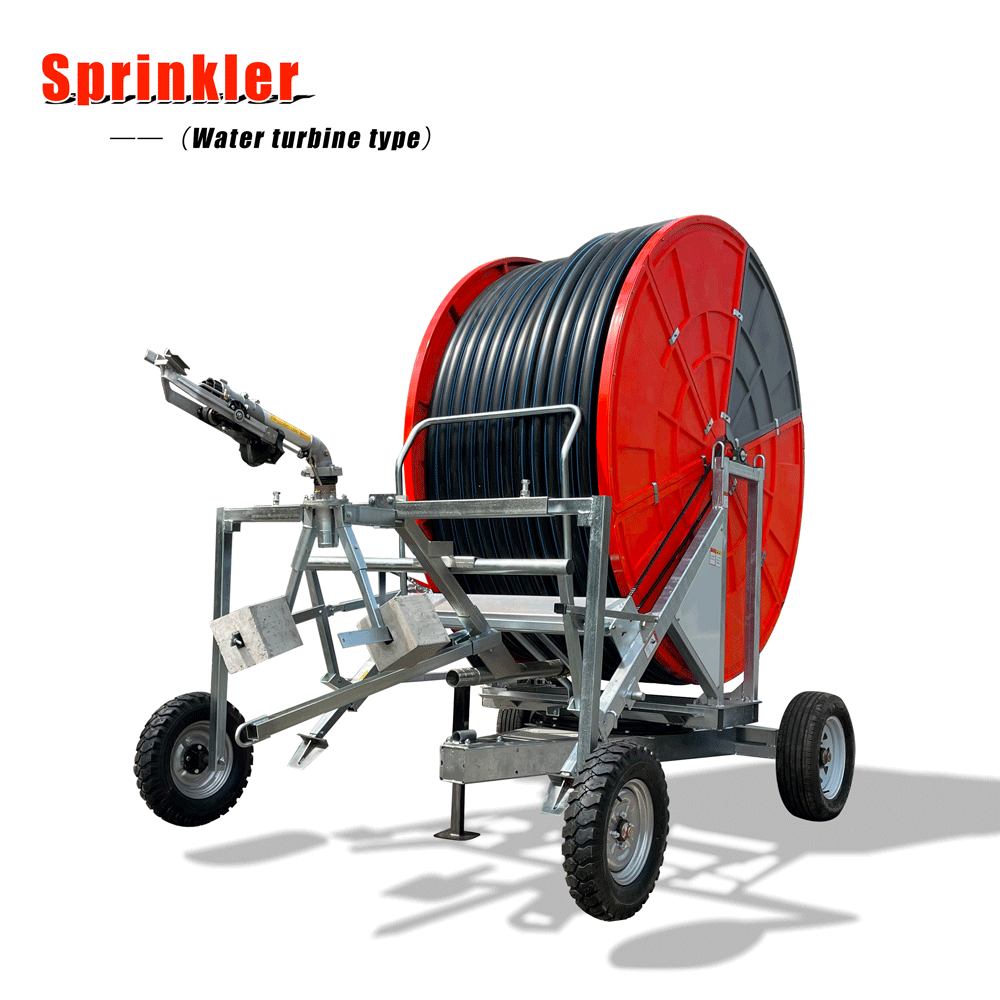

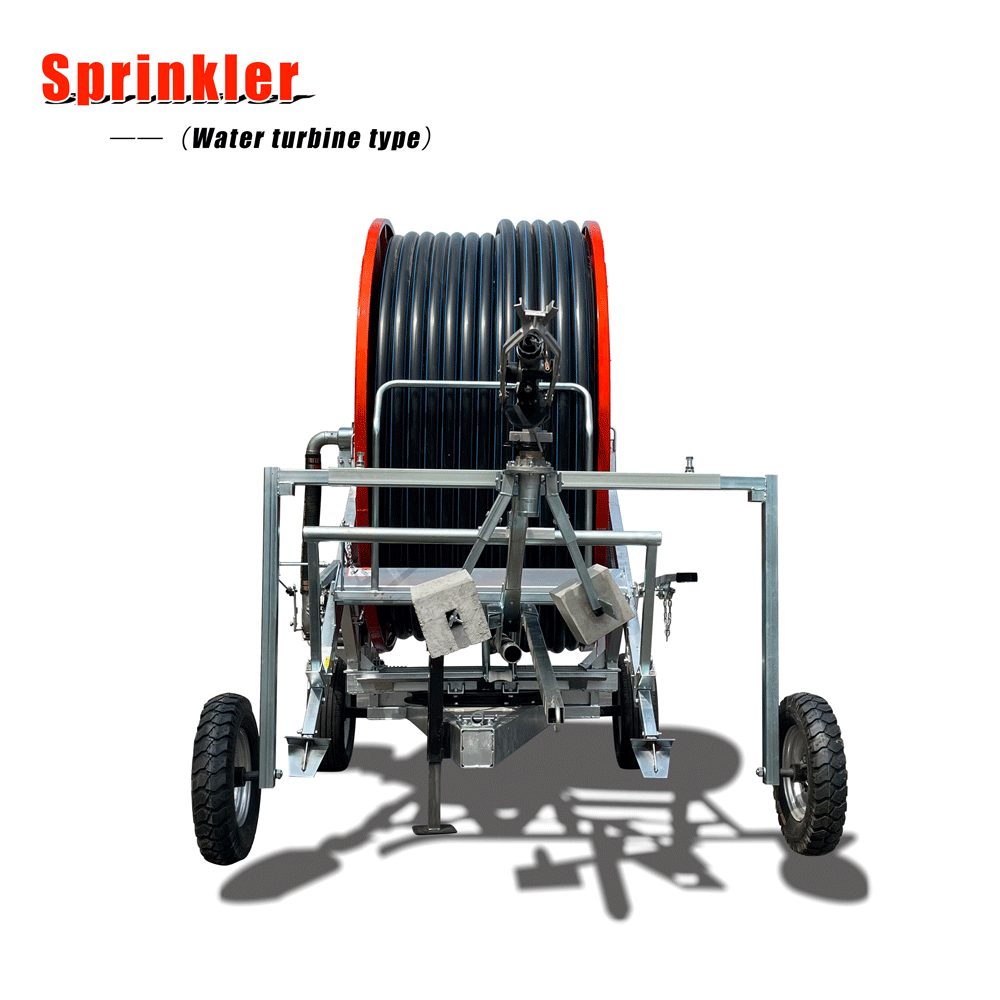

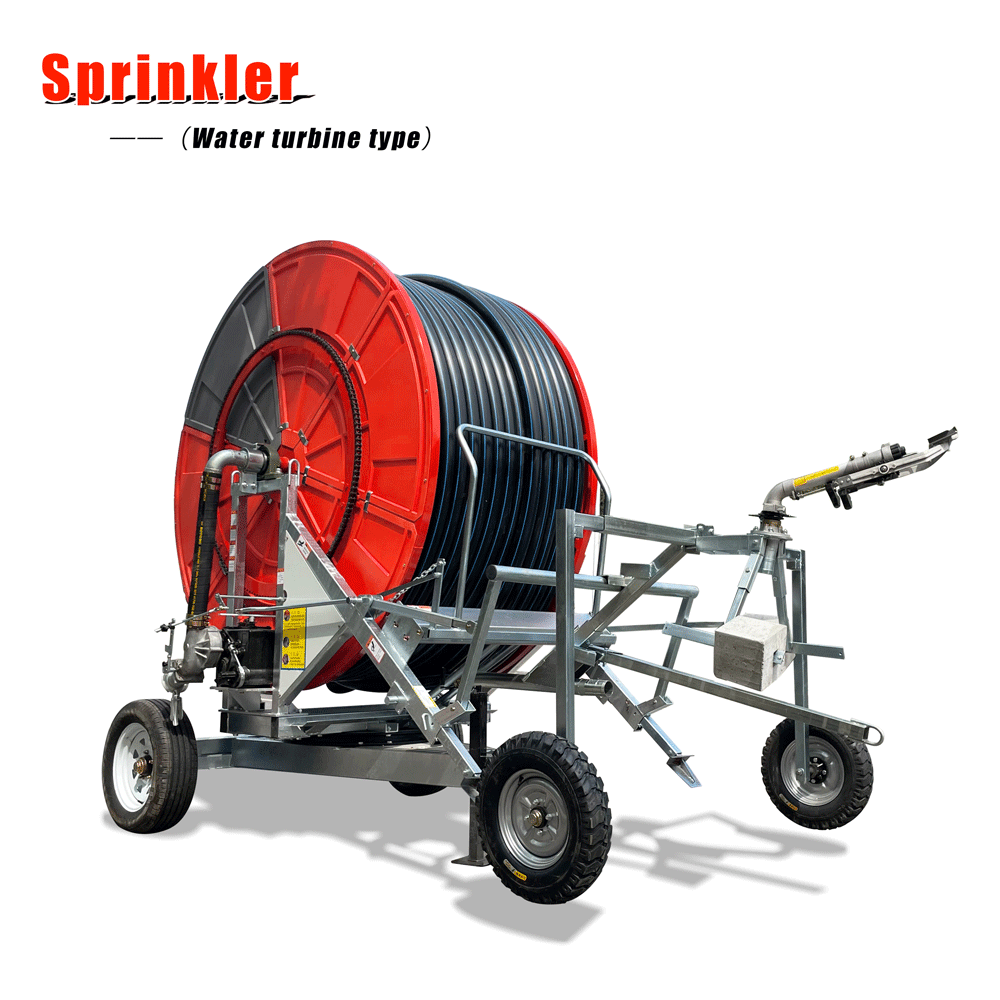

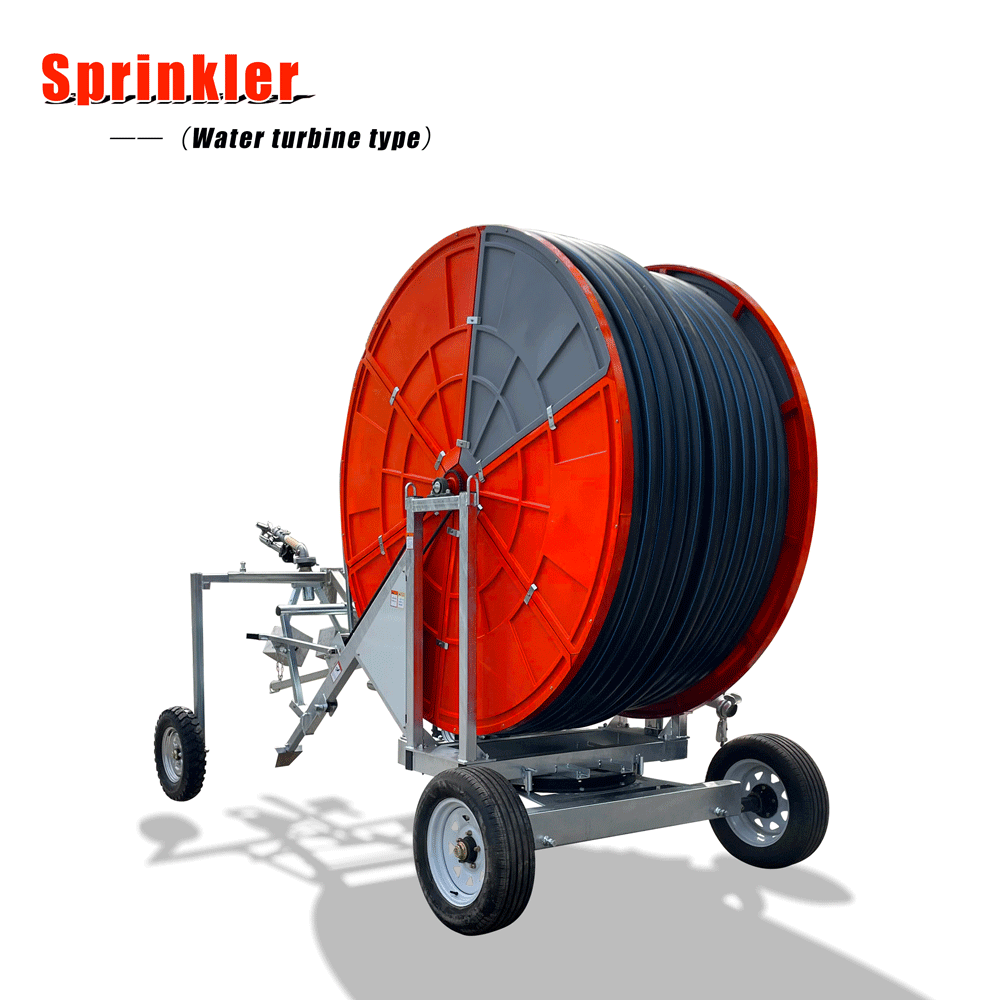

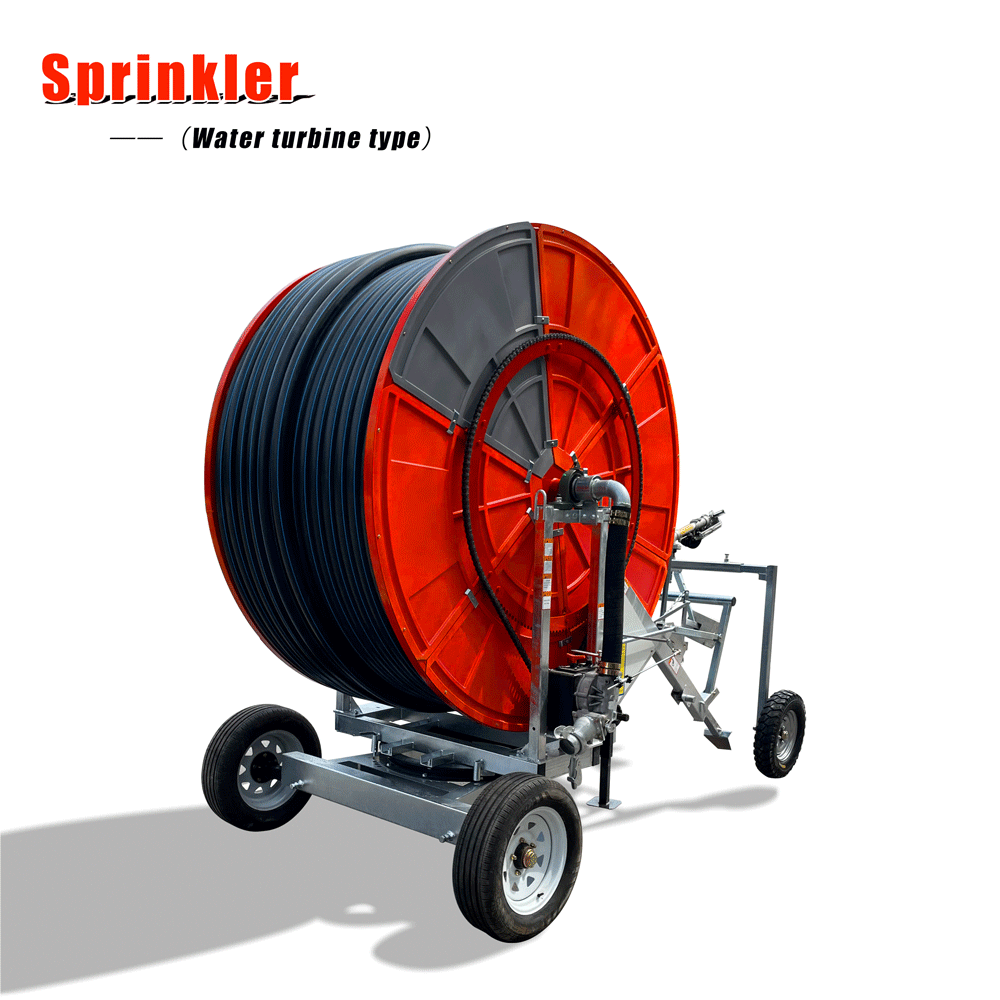

Automatic Agricultural Sprinkler Irrigation Machine
Product Description:
Reel sprinklers are highly efficient, water-saving irrigation systems that enable precise irrigation. Widely used in crops such as wheat, corn, and vegetables, they improve water resource utilization and promote agricultural modernization. They are suitable for fields, orchards, lawns, and gardens. They primarily include vertical arm and truss-type sprinklers, adapting to varying terrains and crop sizes.
Product Features：
Vertical Rocker Arm/Truss:Adjustable angle and atomization effect to suit different crop heights and irrigation needs (e.g. atomization is required to prevent impact during the seedling stage, and direct deep irrigation is required during the mature stage).Anti-drip structure prevents water droplets from falling when spraying stops, reducing water waste.
Pipeline System:PE (polyethylene) pipes are key components for water delivery. Compared with traditional PVC, iron pipes and other materials, they have outstanding advantages such as corrosion resistance, flexibility and pressure resistance, and long service life.The quick connector design supports quick disassembly and assembly, improving work efficiency.
Protection and Maintenance：Key components (such as motors and bearings) are equipped with dust covers and waterproof seals to adapt to harsh working conditions.Modular design facilitates troubleshooting and allows for quick replacement of parts during maintenance, reducing downtime.
Automatic Correction Function：The automatic deviation correction function ensures straight walking and avoids irrigation overlap or leakage.
Product parameter:
| NO. | Projects | Unit | Design value |
| 1 | Model Name | / | JP75-300/400/500 winch sprinkler |
| 2 | Overall dimensions (length x width x height) | mm | 5030×1900×2600 |
| 3 | Winch rewinding drive mode | / | Water Turbine/Electric Motor |
| 4 | Winch rewinding speed change mode | / | Gearbox |
| 5 | Winch horizontal steering angle | ( °) | 20~320 |
| 6 | Winch winding layers | / | 5 |
| 7 | Coil material | / | PE pipe |
| 8 | Coil outer diameter | mm | 75 |
| 9 | Coil wall thickness | mm | 6.3 |
| 10 | Coil length | mm | 300000/400000/500000 |
| 11 | Nozzle Model | / | Gantry Type |
| 12 | Driving mode of sprinkler carriage | / | Traction |
| 13 | Nozzle wheel distance | mm | 1300~2430 |
| 14 | Sprinkler vehicle passes through the gap | mm | 1200 |
| 15 | Injection device type | / | Vertical Rocker Spray Gun/Truss |
| 16 | Number of injection devices | / | 1 |
| 17 | Injection device model | / | 50PYC |
| 18 | Rated flow of matching water pump | m³/h | 20~40 |
| 19 | Supporting water pump head | m | 50~100 |
| 20 | Rated power of spray jacket water pump | kw | 7.5~15 |
| 21 | Transportation gap | mm | 260 |
