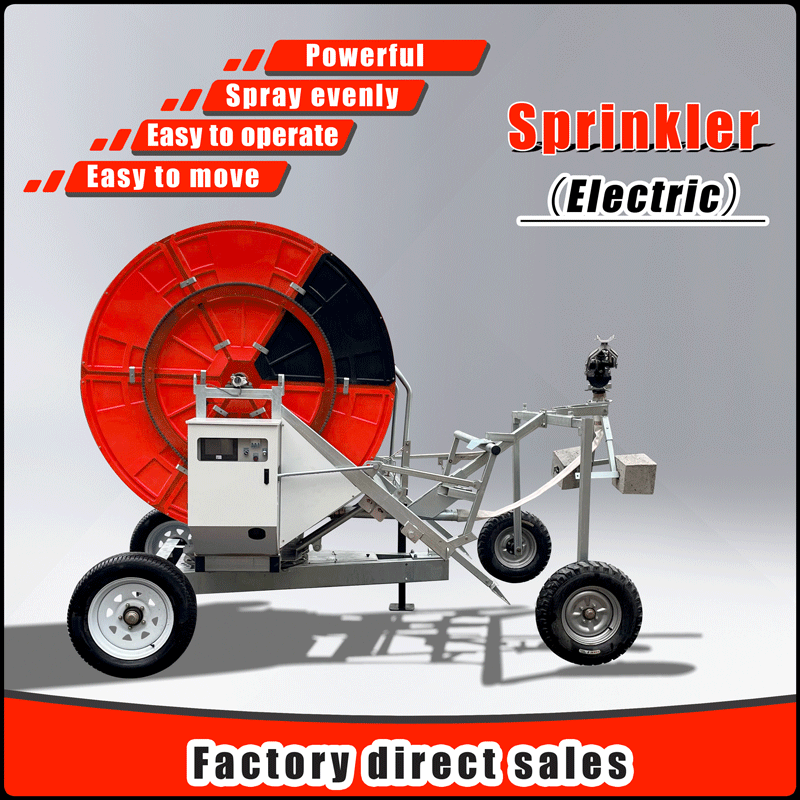

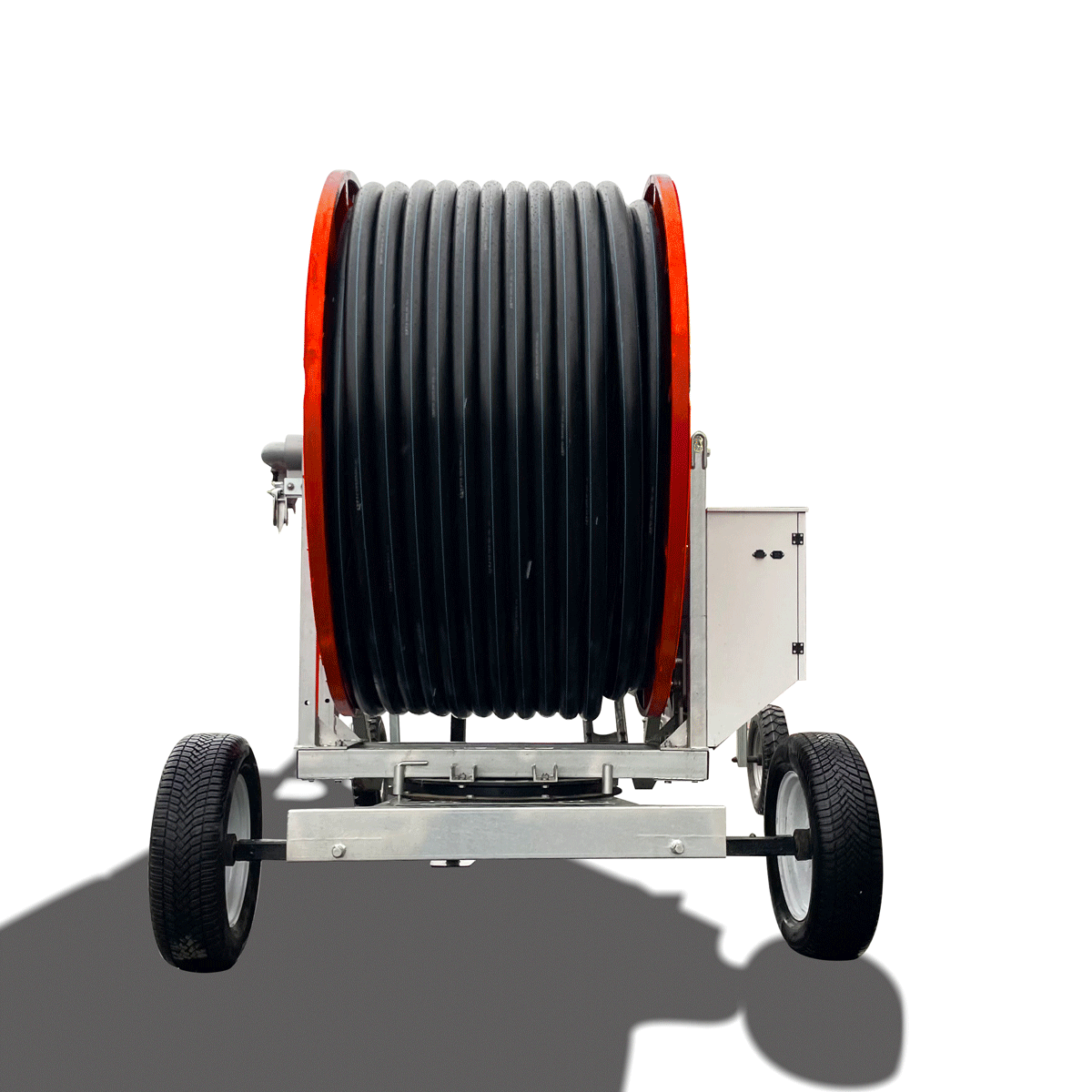

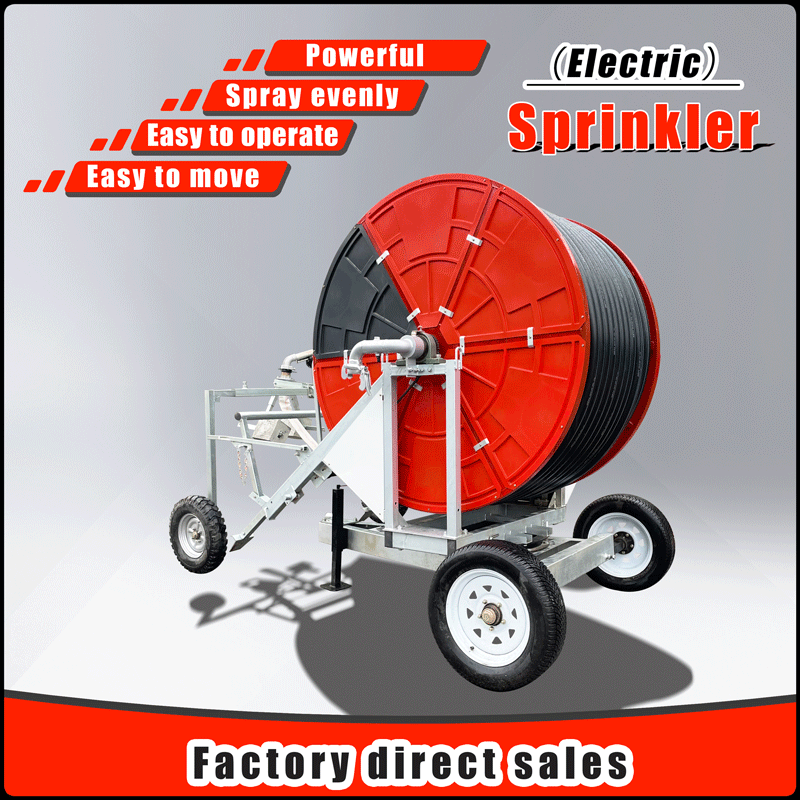

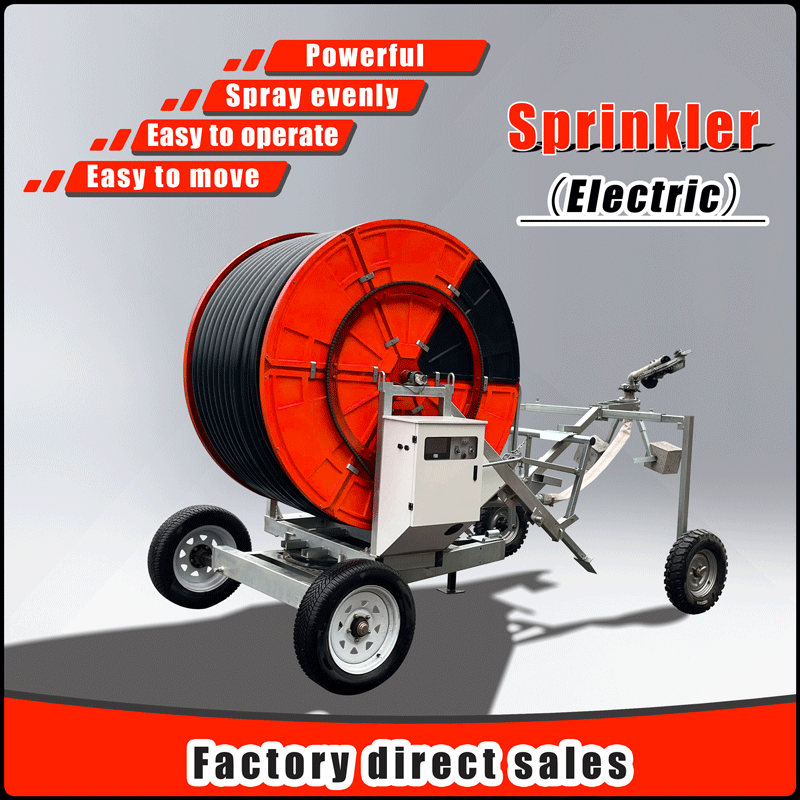

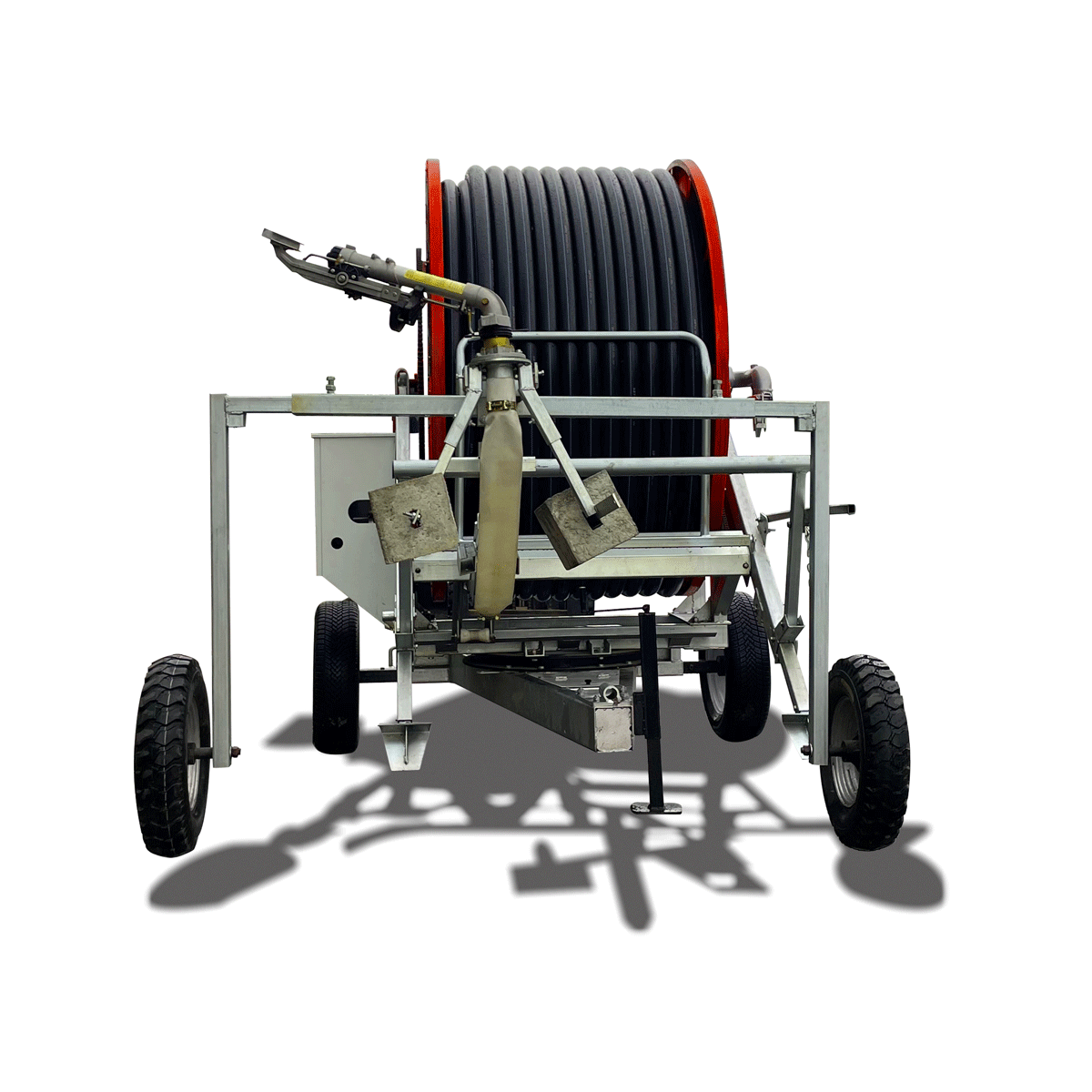

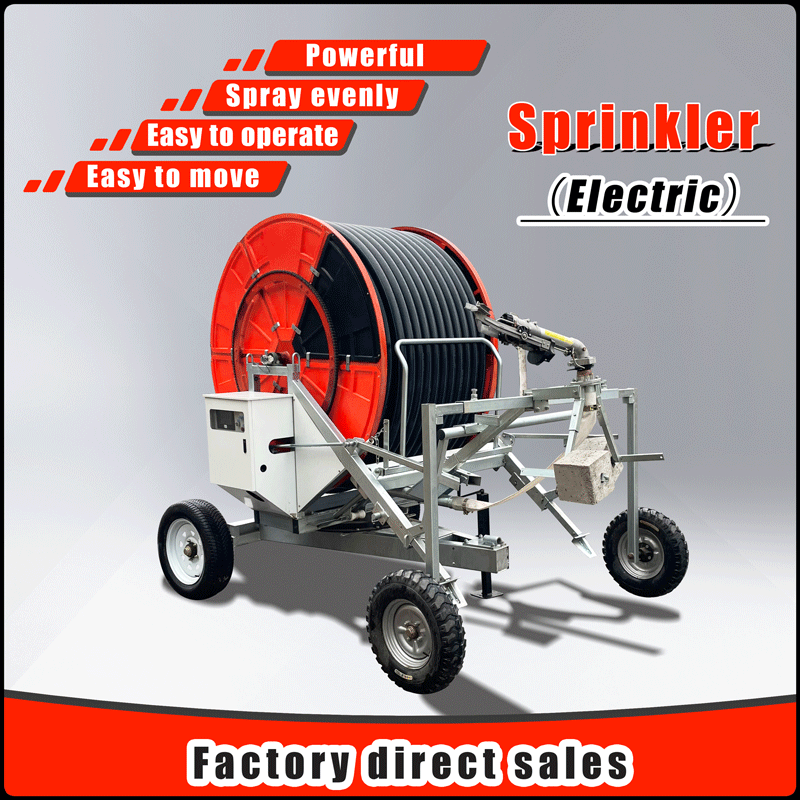

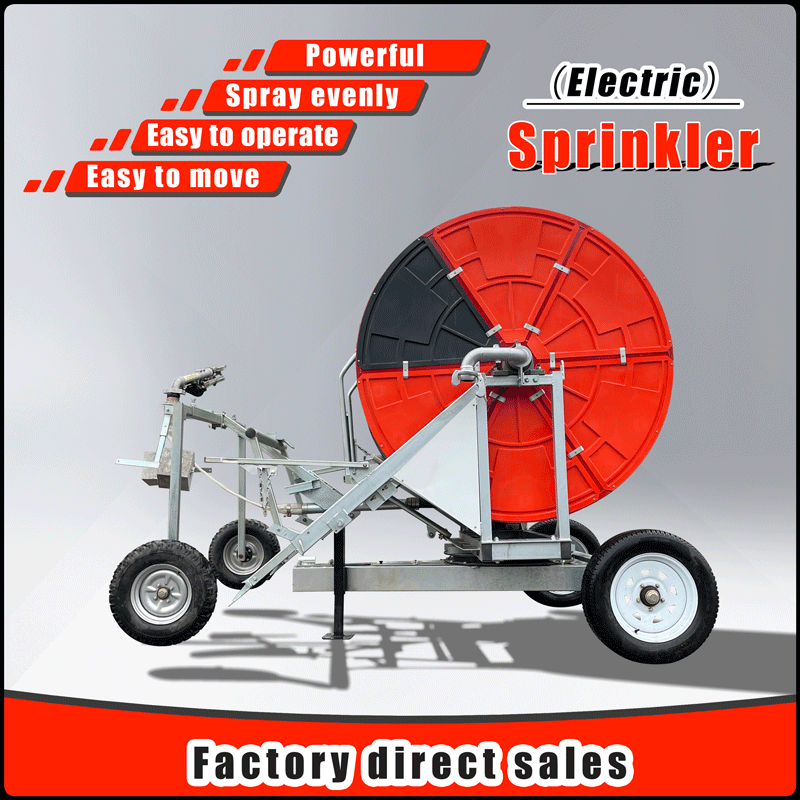

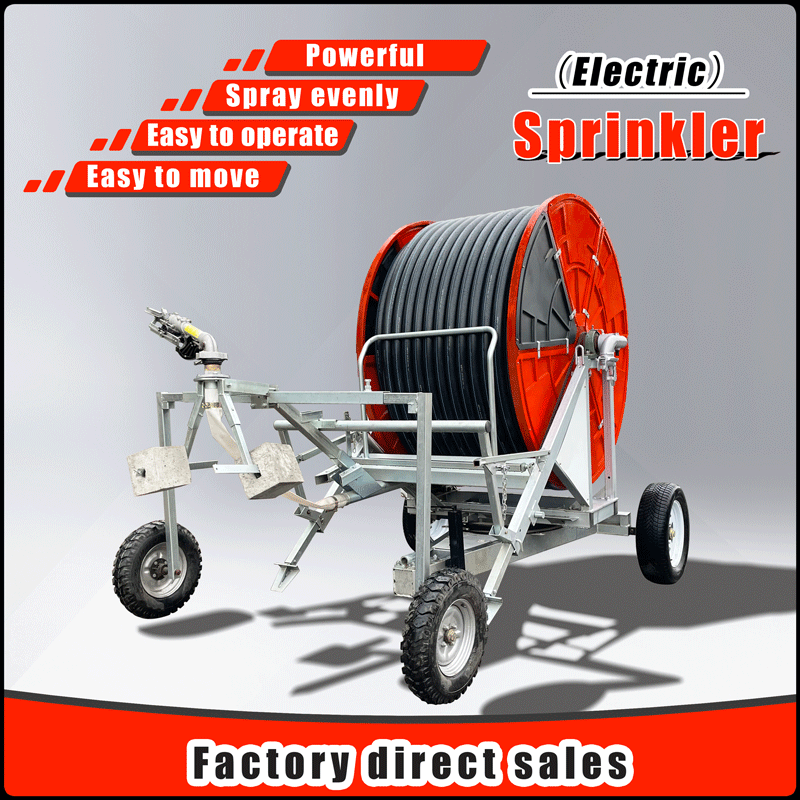

Hot Mobile Irrigation Machine Reel Sprinkling Intelligent Irrigation System
Product Description:
The reel sprinkler is a highly efficient water-saving irrigation equipment suitable for fields such as farmland, orchards, lawns and gardens.The main types include vertical rocker-arm spray guns and trusses, which can adapt to different terrains and planting scales. The product has the characteristics of automatic control, corrosion-resistant materials and low energy consumption. Sprinklers are widely used in crops such as wheat, corn, and vegetables to improve water resource utilization and promote agricultural modernization.
Product Features：
Vertical Rocker Arm/Truss：Adjustable angle and atomization effect to suit different crop heights and irrigation needs (e.g. atomization is required to prevent impact during the seedling stage, and direct deep irrigation is required during the mature stage).Anti-drip structure prevents water droplets from falling when spraying stops, reducing water waste.Truss is made of 304 stainless steel
Pipeline System：PE (polyethylene) pipes are key components for water delivery. Compared with traditional PVC, iron pipes and other materials, they have outstanding advantages such as corrosion resistance, flexibility and pressure resistance, and long service life.
Drive and Control：Electric/water turbine drive is optional. The electric type has low noise and zero emission, which is suitable for closed environments such as greenhouses; the hydraulic type has strong power and can adapt to complex terrain.Intelligent control systems (such as remote APP control) can preset irrigation paths and times to achieve precise irrigation.
Traveling Mechanism：The wheel set is equipped with anti-skid tires, which are suitable for muddy and sandy land and reduce ground rolling damage.
Product parameter:
| NO. | Projects | Unit | Design value |
| 1 | Model Name | / | JP75-300/400/500 winch sprinkler |
| 2 | Overall dimensions (length x width x height) | mm | 5030×1900×2600 |
| 3 | Winch rewinding drive mode | / | Water Turbine/Electric Motor |
| 4 | Winch rewinding speed change mode | / | Gearbox |
| 5 | Winch horizontal steering angle | ( °) | 20~320 |
| 6 | Winch winding layers | / | 5 |
| 7 | Coil material | / | PE pipe |
| 8 | Coil outer diameter | mm | 75 |
| 9 | Coil wall thickness | mm | 6.3 |
| 10 | Coil length | mm | 300000/400000/500000 |
| 11 | Nozzle Model | / | Gantry Type |
| 12 | Driving mode of sprinkler carriage | / | Traction |
| 13 | Nozzle wheel distance | mm | 1300~2430 |
| 14 | Sprinkler vehicle passes through the gap | mm | 1200 |
| 15 | Injection device type | / | Vertical Rocker Spray Gun/Truss |
| 16 | Number of injection devices | / | 1 |
| 17 | Injection device model | / | 50PYC |
| 18 | Rated flow of matching water pump | m³/h | 20~40 |
| 19 | Supporting water pump head | m | 50~100 |
| 20 | Rated power of spray jacket water pump | kw | 7.5~15 |
| 21 | Transportation gap | mm | 260 |
