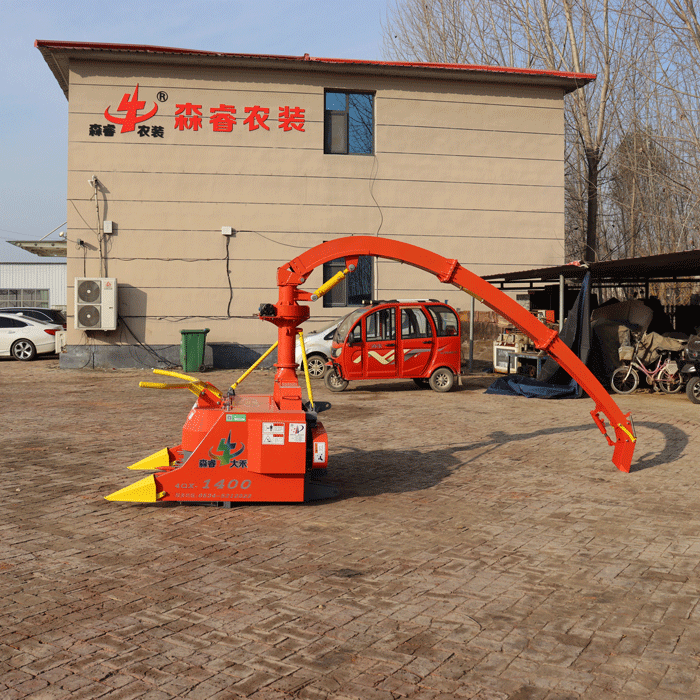

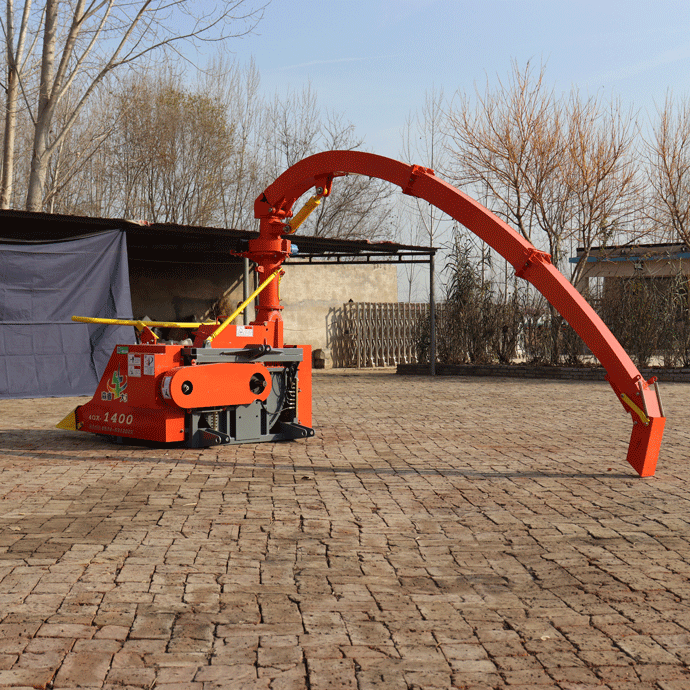

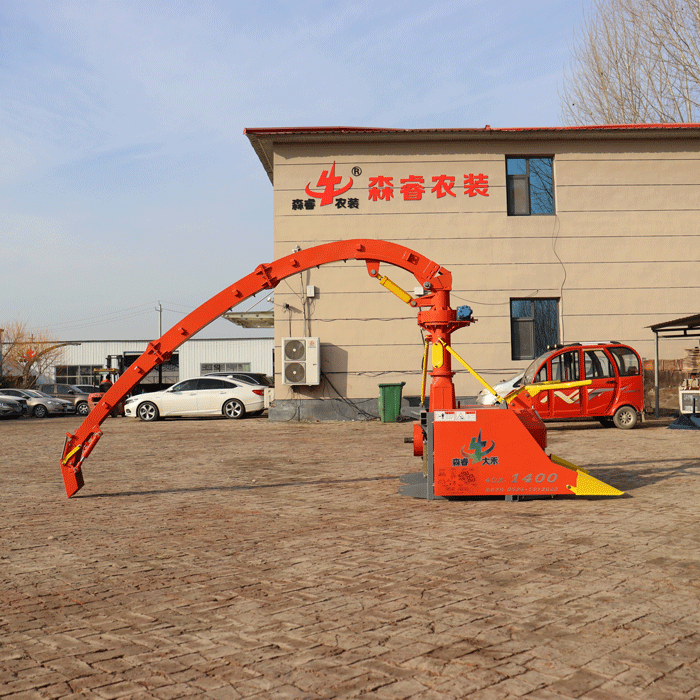

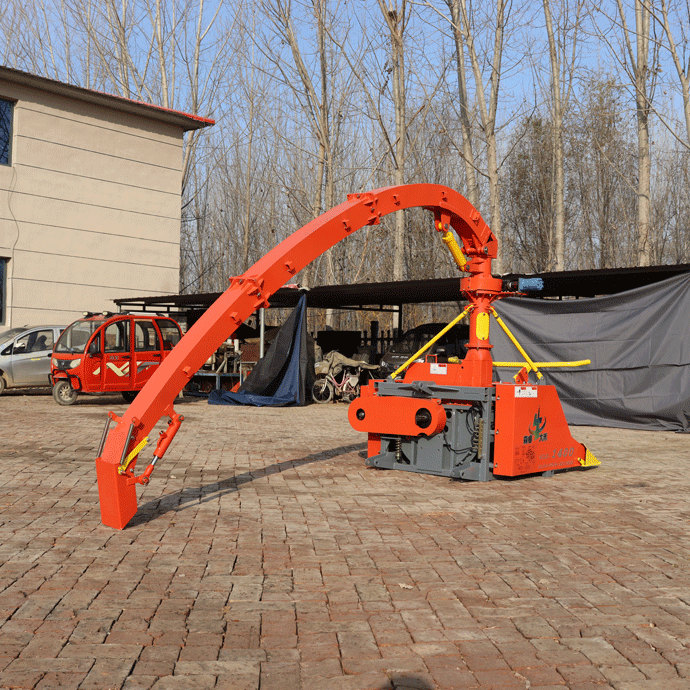

1270mm Small Tractor Forage Harvesting
Product Features:
Senrui 4QX-1400 backpack silage harvester is powered by a 55-75 horsepower tractor, is easy to install and quick to learn, and is suitable for small plots of land.The dual-disc harvester design enables non-row harvesting, easily handling uneven row spacing and a small amount of lodged forage, reducing missed harvests and improving the flexibility and efficiency of field operations.It is suitable for various forages such as corn stalks, alfalfa, rye grass, and Napier grass, and completes harvesting, chopping, crushing and tossing in one go, saving time and labor while taking into account the nutrition and quality of the forage.
Product introduction:

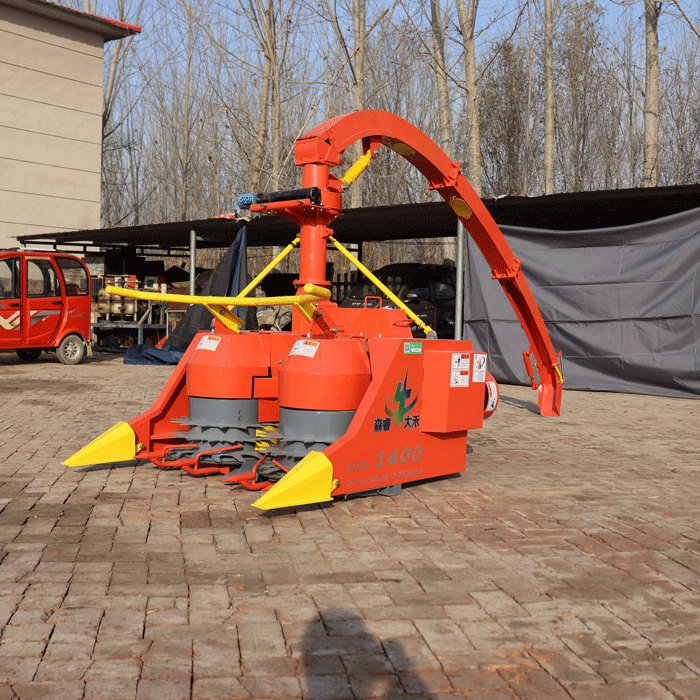

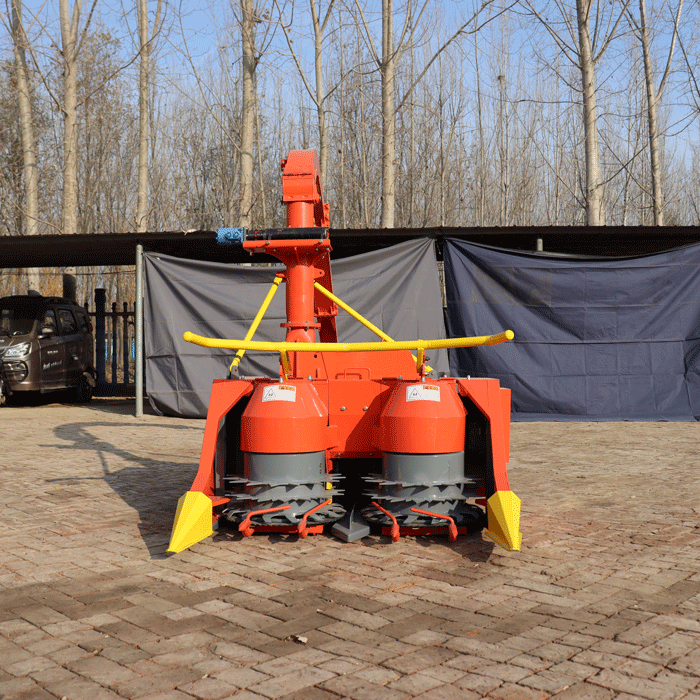

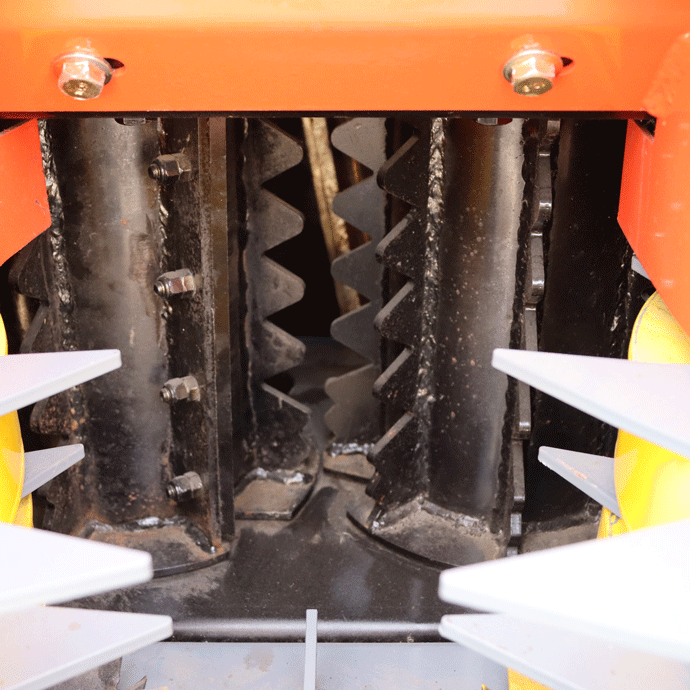

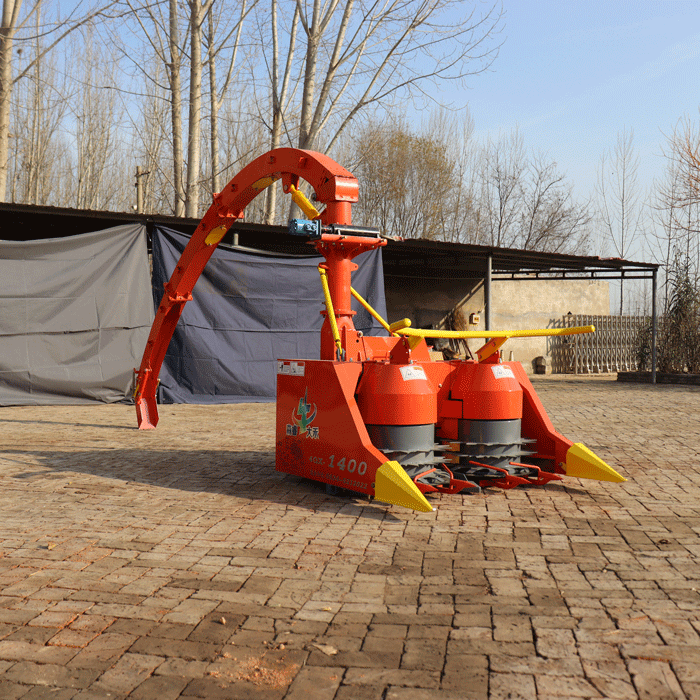

The double-disc saw blade can adapt to non-row harvesting operations of all stalk-shaped forage crops.
This equipment is small in size, highly efficient, versatile, and agile, and can meet the harvesting needs of small plots of land such as hills and mountains.
The spray nozzle adopts a worm gear mechanism, which can rotate freely within ±180°, effectively locking the spray angle and preventing vibration deviation. The throwing direction is controllable, uniform and stable.
Fully hydraulic operation is convenient and flexible, allowing for flexible adjustment of the throwing direction, throwing distance, and stubble height.
Product parameter:
Projects | unit | Design value |
Model Name | / | 4QX-1400 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4350*1490*3410 |
structural quality | kg | 1008 |
Matching power range | kW | 40.4～55.1 |
Effective harvesting width of the cutter | mm | 1270 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism rotor diameter | mm | 790 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 3400 |
Throwing Minimum Height | mm | 3100 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 10 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 20 |
Standard Grass Length Ratio | % | 93 |
Number of moving knives | Piece | 8 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 10~20 |

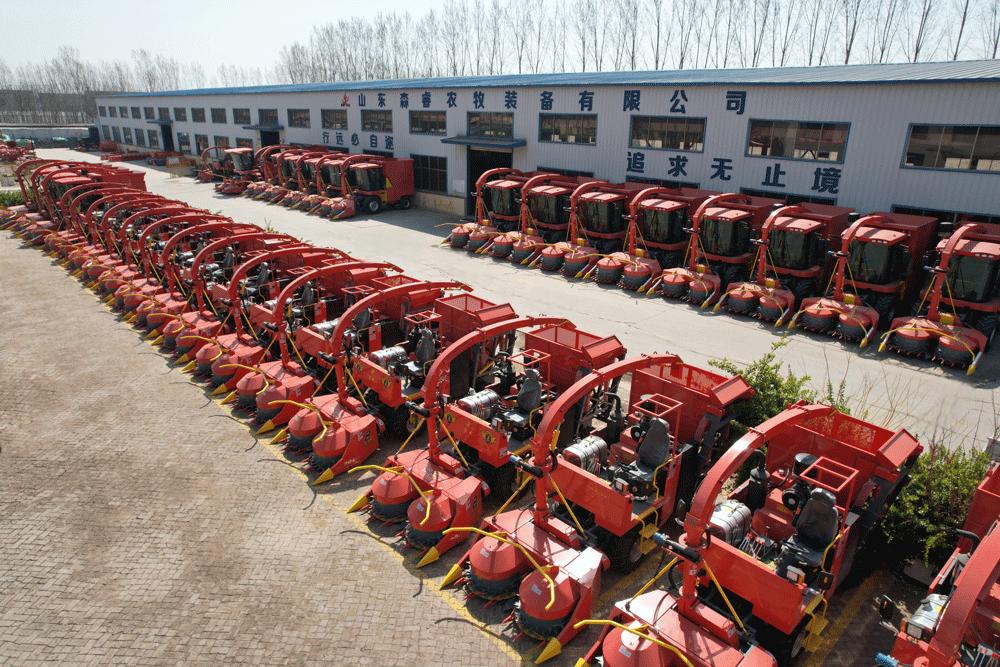

Company Strength：
