Welcome Yunnan Customers To Our Company To Order 4Qz-2000 Self-Propelled Green Fodder Harvester
Welcome Yunnan Customers To Our Company To Order 4Qz-2000 Self-Propelled Green Fodder Harvester
Welcome Yunnan customers to our company to order 4QZ-2000 self-propelled green fodder harvester,The product features are as follows:

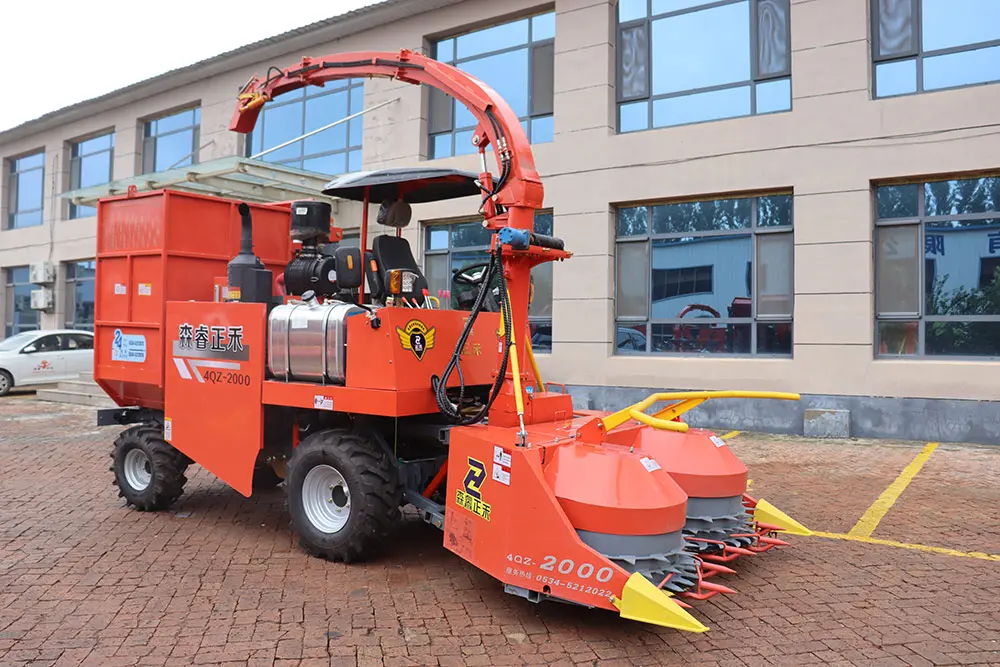

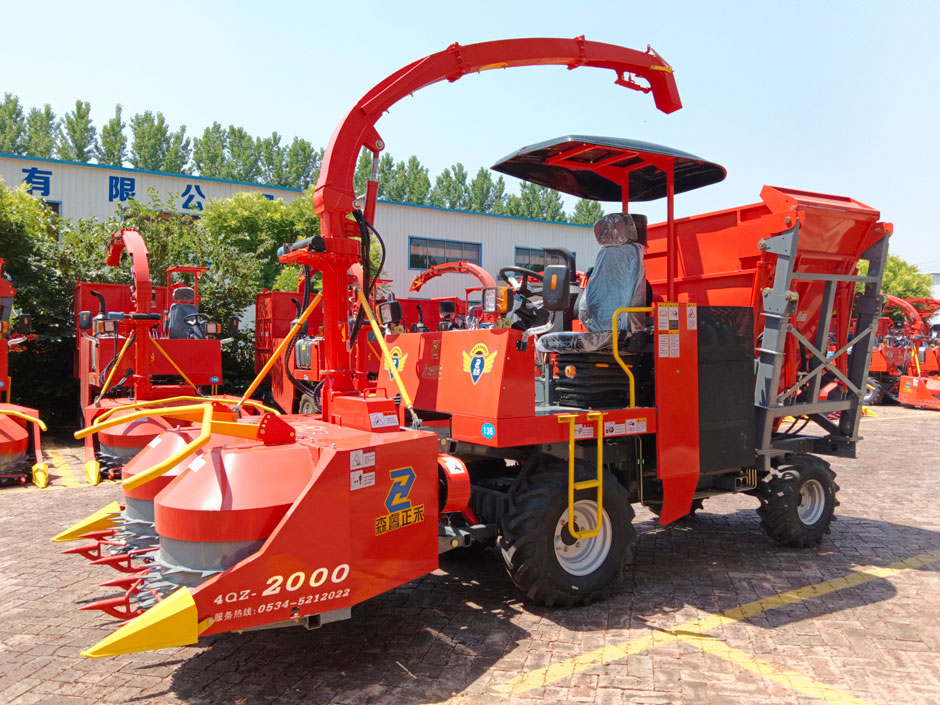

2.020m Self Propelled Forage Harvester For Sale
Product Introduction:

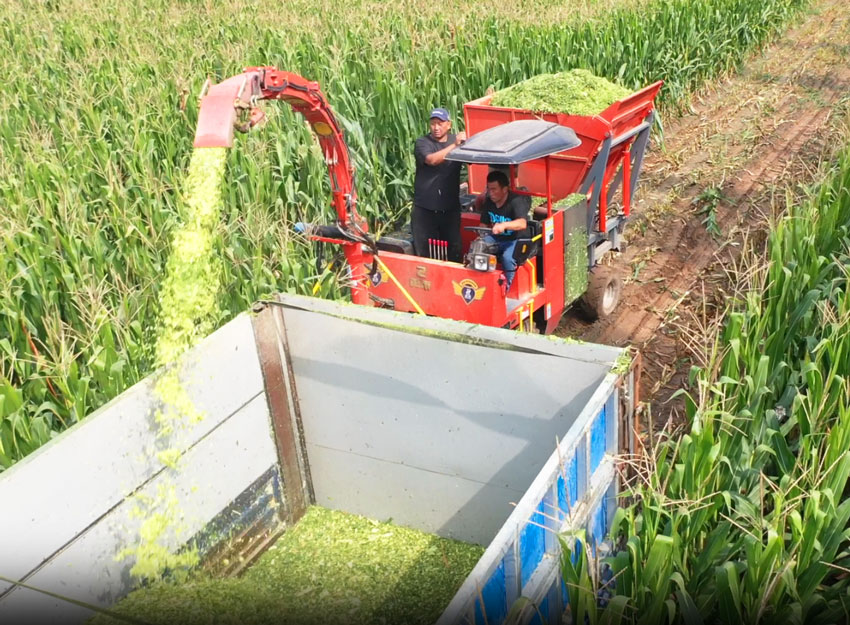

4QZ-2000 Self Propelled Forage Harvester For Sale, can be used for off-line harvesting operations. The equipment is small in size, high in efficiency, wide in use, low in energy consumption, flexible in movement, independent of crop spacing, and integrated with high efficiency and safe and reliable performance, green (yellow) can be a one-time storage feed crops to complete cutting off the ground, sequential feeding, even cutting, throwing loading and other operations.
Features:
● short fuselage, small turning radius, flexible and convenient operation, suitable for small and medium-sized plots, mountains, hills, terraces and other regional operations.
● Cut-off feeding assembly: two-roller feeding chamber, segmented design, more convenient maintenance, using double-disc saw blade cutter, can adapt to all straw-like forage crops not on the line operation.
● Shredding Assembly: A disc cutter shredding device to achieve multi-stage adjustable shredding length of grass fodder.
● Spray cylinder assembly: the spray cylinder rotates with worm gear and worm mechanism, can rotate ± 180 ° , effectively lock the spray cylinder angle, so that the spray angle is more stable.
● Feed Box Assembly: with a charging box, side dump operation is simple, increase the second lifting function, better adapt to a variety of receiving vehicles, unloading more convenient.
● Powertrain: 160 horsepower engine, horsepower foot, strong power, four-wheel drive system, mountain hills and other areas through high.
● control: suspension seat, driving more comfortable.
Product parameter:
Projects | Unit | Design value |
Model Name | / | 4QZ-2000 self-propelled forage harvester |
Formality | / | Self-propelled |
Working condition external dimensions (L*W*H) | mm | 5200*2200*4000 |
Structural quality | kg | 3950 |
Matching Engine Rated Power | kw | 118 |
Matching engine rated speed | r/min | 2400 |
Cut width (of a page) | mm | 2020 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism type | / | Disc |
Transmission mode | / | Manual gearbox |
Drive method | / | Mechine |
Brake type | / | Drum |
Guide wheel spacing | mm | 1180 |
Guide wheel tyre specifications | / | 10.0/80-12 |
Driving Wheel Distance | mm | 1230 |
Driving wheel tyre specifications | / | 11.5/80-15.3 |
Wheelbases | mm | 2190 |
Operating speed range | km/h | ≤6 |
Design Cutting Length | mm | 20 |

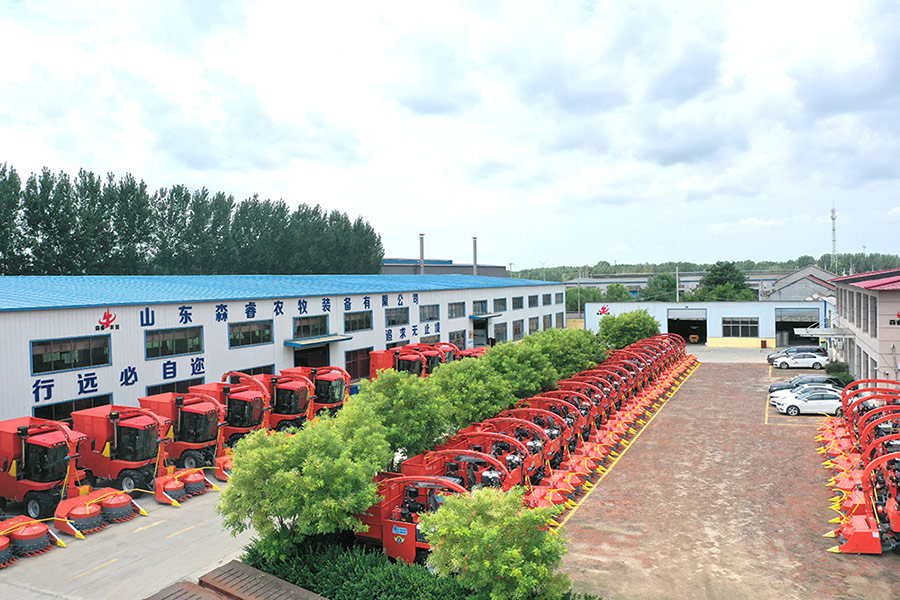

Plant area:

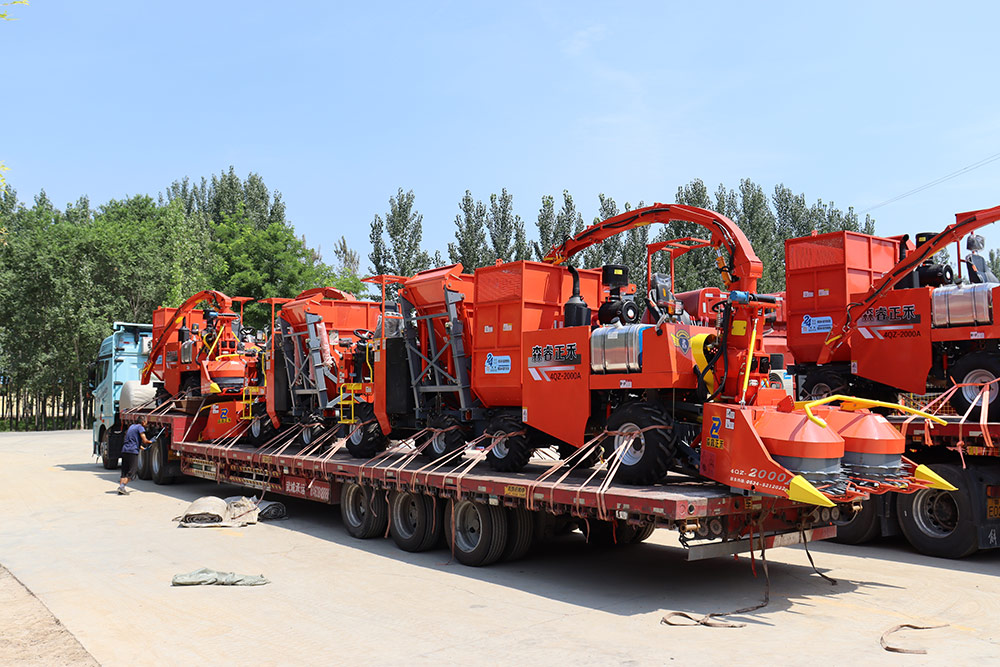

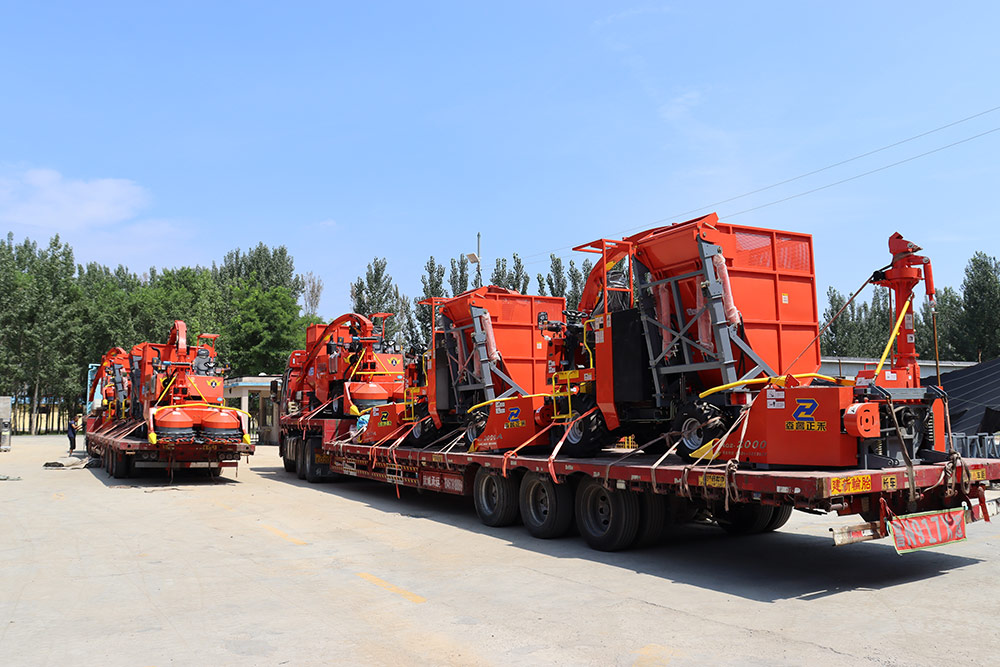

Delivery site:
