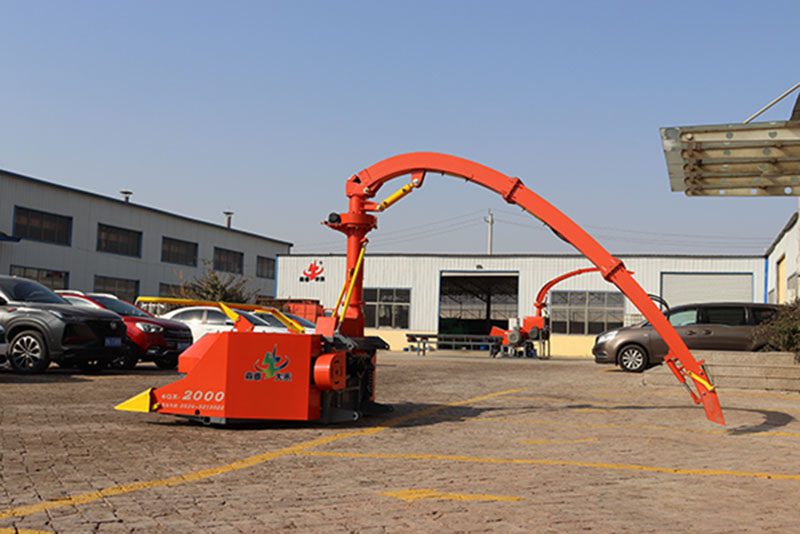

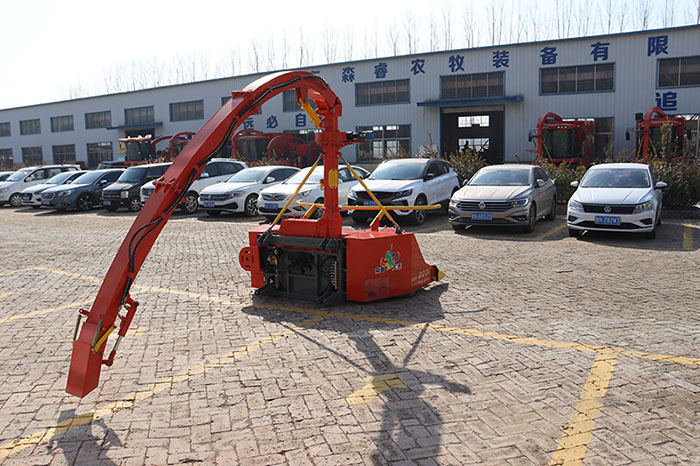

Disc Grass Harvester
Product advantages:
★ Double disc saw blade cutter, can adapt to all stalk forage crops in the wrong line harvest.
★ Disc cutter shredding device to achieve multi-stage adjustable cutting length of grass.
★ Spray cylinder rotation using worm gear mechanism, can be ±180° rotation, effectively lock the spray cylinder Angle, so that the spray Angle is more stable.
★ Full hydraulic operation, convenient and flexible, so that the throwing direction, throwing distance, stubble height flexible adjustment.
Product Details:
☆ The 2020-meter suspended silage harvester (fully extended) can achieve non-row-aligned harvesting operations. This equipment is small in size, high in efficiency, wide in application, low in energy consumption, agile in movement, and not restricted by the row spacing of crops. It has high operational efficiency and its performance is safe and reliable.
☆ The three-stage spray barrel is easy to disassemble. Adopting a worm gear and worm mechanism, it can rotate ±180°, effectively locking the angle of the spray barrel and making the spraying angle more stable.
☆ It adopts full-hydraulic operation, which is convenient and flexible, enabling flexible adjustment of the throwing direction, throwing distance, and stubble height.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-2000 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | suspended type |
Working condition external dimensions (L*W*H) | mm | 4750*2200*3410 |
structural quality | kg | 1188 |
Matching power range | kW | 66.1~88.2 |
Effective harvesting width of the cutter | mm | 2020 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 1 pair |
Chopping mechanism rotor diameter | mm | Φ790 |
Rated spindle speed | r/min | 850-1000 |
Maximum throwing height | mm | 3400 |
Throwing Minimum Height | mm | 3100 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 10 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 20 |
Standard Grass Length Ratio | % | 93 |
Number of moving knives | Piece | 8 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 10~20 |
