Factory Direct Sale: Mini Corn Silage and Straw Round Bale Baler
Product Description:
The Senrui 9YDB-50CY diesel-powered silage baler is an efficient machine for livestock farming and crop residue processing. Powered by a diesel engine, it does not require an external power source, making it suitable for use in various locations without access to electricity, such as farms and fields. It can quickly compress fresh crop residue and silage into high-density round bales, effectively reducing material volume and improving work efficiency.
Product Features：
Diesel Engine：Equipped with a 15 horsepower diesel engine, it has strong power, stable quality, higher bale compaction density and longer shelf life of bale straw.

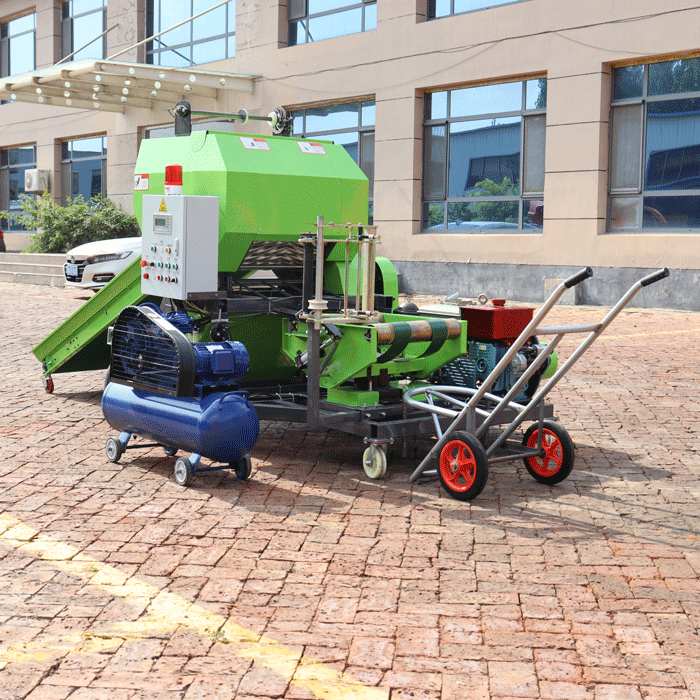

Distribution Box：It can accurately control various actions of the green fodder baler: baling speed, opening and closing of the compartment door, bale compaction density, etc. The operation interface is simple and the button layout is reasonable, which is convenient for the staff to perform various operations and parameter settings. High stability: It uses high-quality electrical components, with stable performance, can adapt to harsh working environments, and reduce the probability of failure.

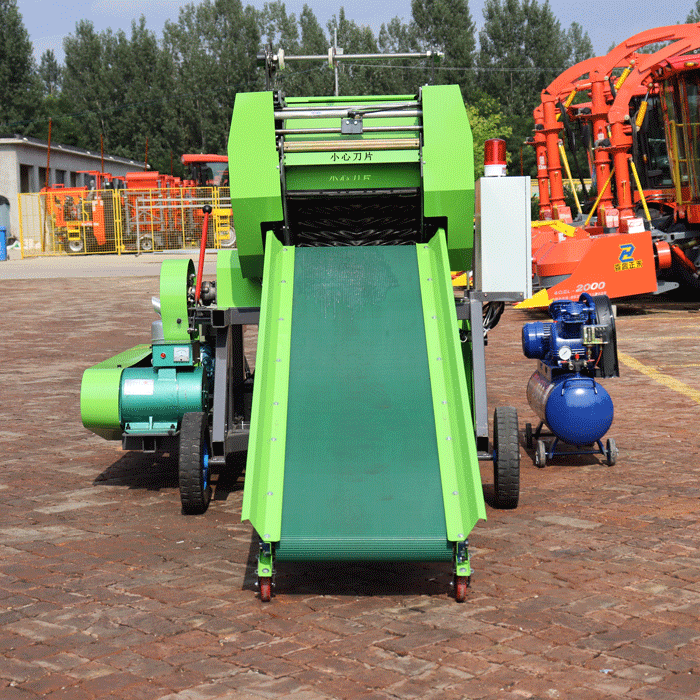

Conveyor：It is equipped with a 2-meter-long conveyor belt with a patterned belt to increase the friction of the grass on the conveyor belt, making the feeding speed faster and more uniform. It uses wear-resistant materials to extend its service life.
Dynamo：Equipped with three-phase electricity, 3KW generator, and control envelope cabin.
Product parameter:
| NO. | Projects | Unit | Design value |
| 1 | Model Name | / | 9YDB-50CY Silage Baler(Diesel version) |
| 2 | Form | / | Stationary |
| 3 | Dimensions | mm | 3600*1880*1850 |
| 4 | Machine weight | kg | 750 |
| 5 | Supporting Motor Power | kw | 3 |
| 6 | Coating machine motor power | kw | 11 |
| 7 | Rated Speed | r/min | 280 |
| 8 | Aluminum Roller Quantity | pcs | 30 |
| 9 | Production Efficiency | pkts/h | 50-70 |
| 10 | Bale Weight | kg | 70-90 |
| 11 | Bale Density | kg/m³ | ≥800 |
| 12 | Power Supply Options | / | Three-phase electricity |
| 13 | Bale size | mm | φ550*520 |
| 14 | Feed opening width | mm | 520 |
| 15 | System Features | / | 1,Programming control 2,touch screen operation 3,alarm system 4,automatic winding 5,automatic film wrapping 6,automatic film cutting 7,automatic film clamping |
