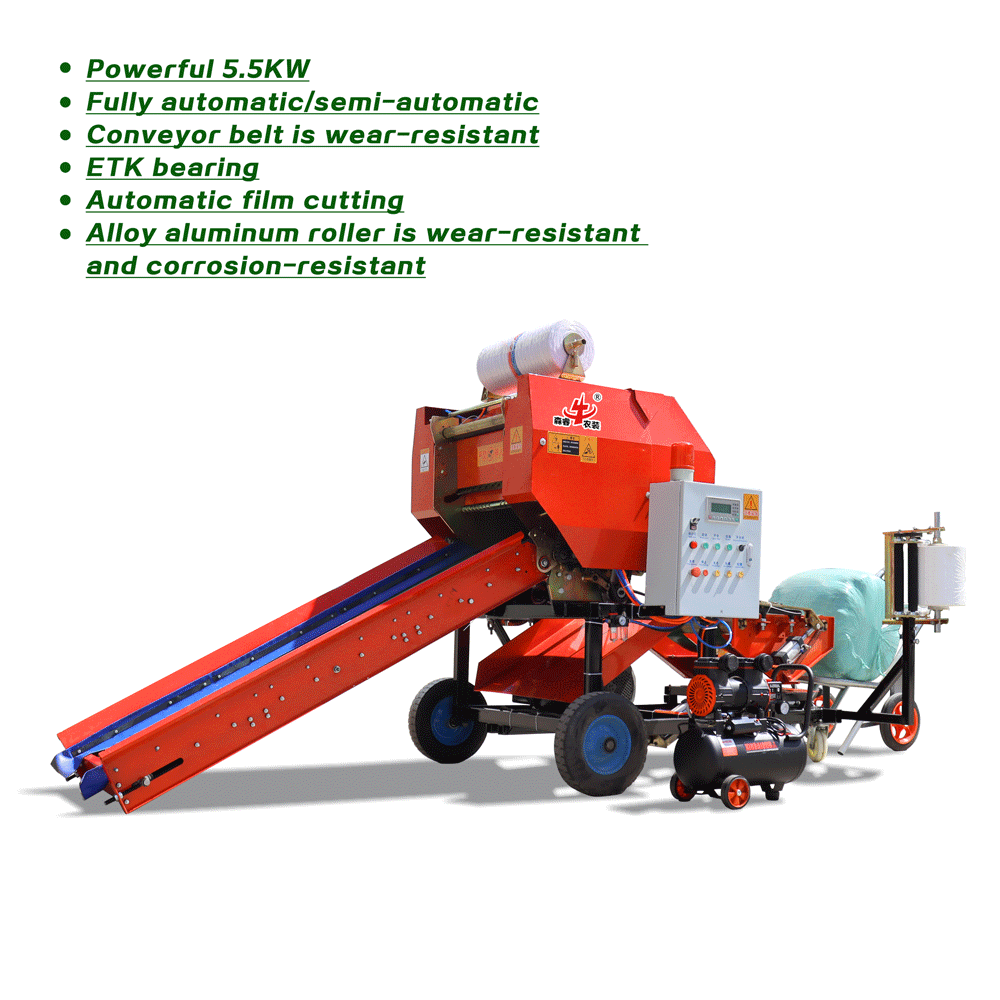

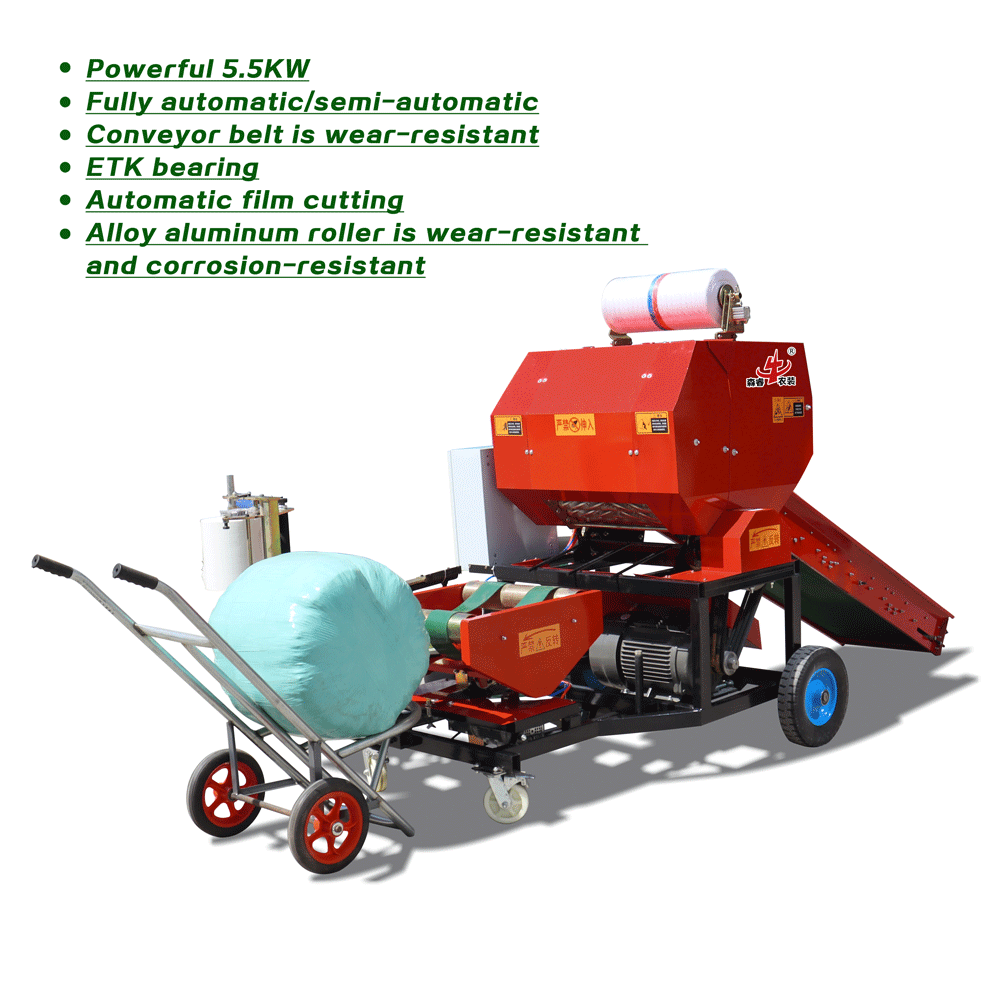

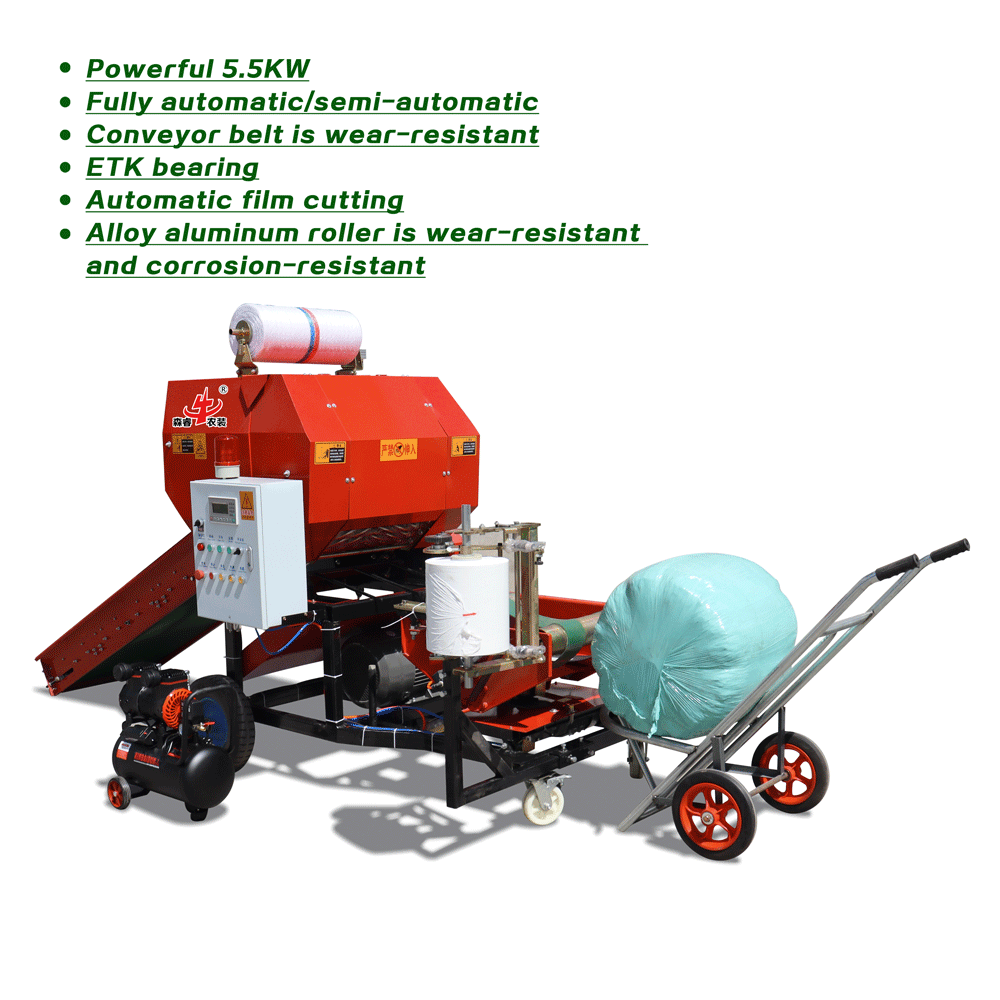

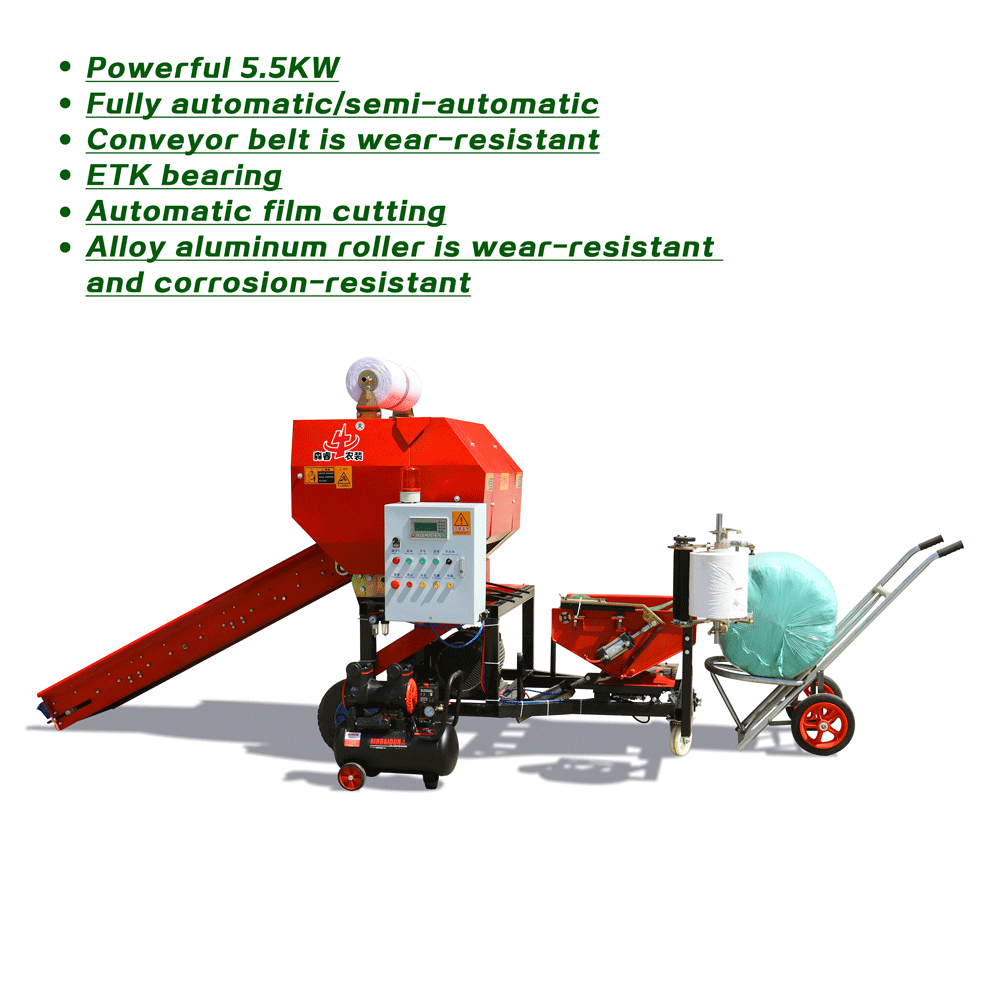

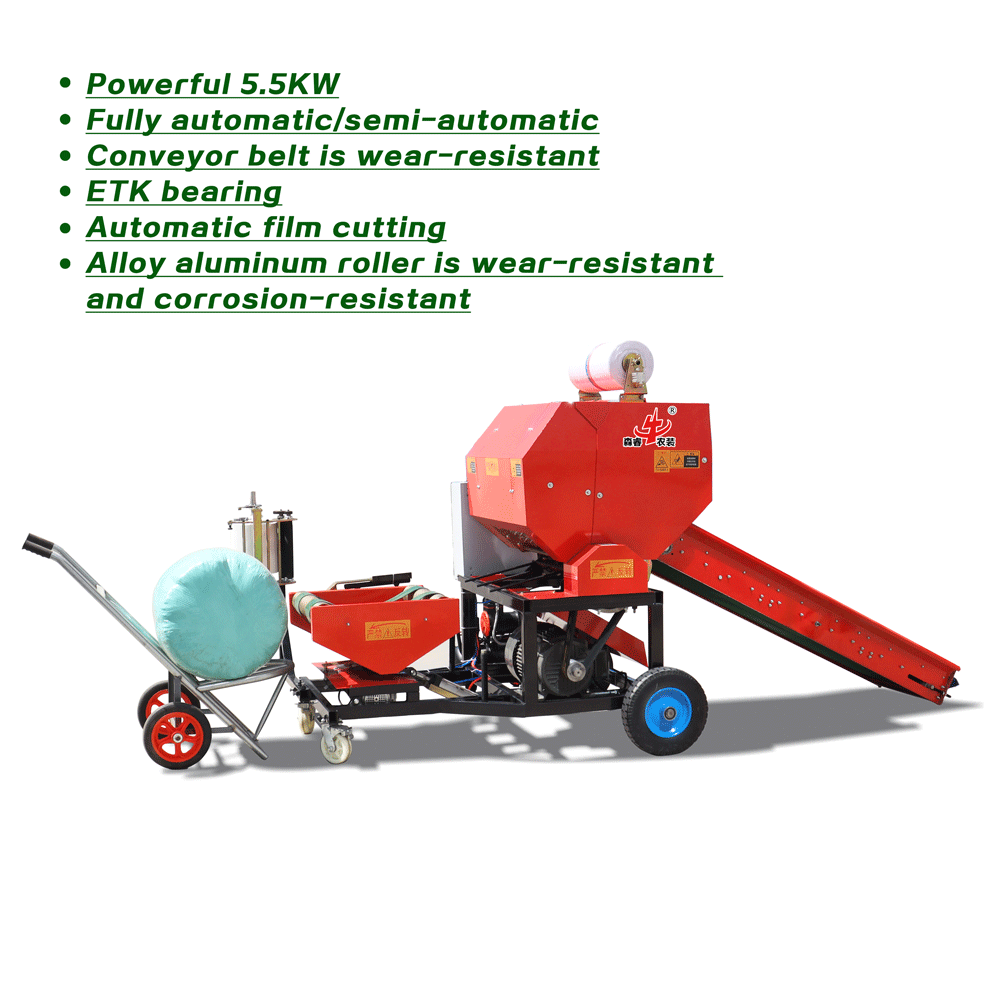

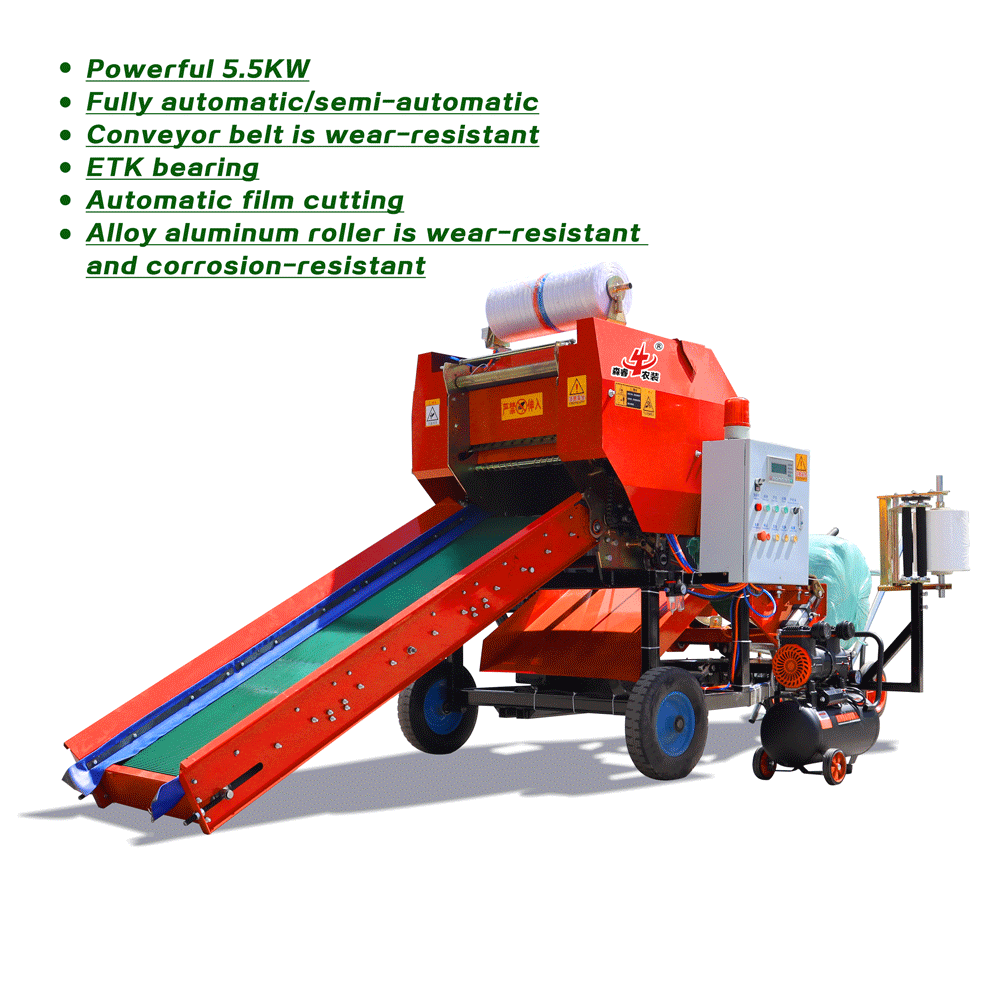

Silage Baler Wrapper Machine
Product Description:
The Senrui 9YDB-50 round baler can automatically wrap crushed silage. It operates fully automatically, reducing manual labor. Using bearings from a well-known domestic brand, it is maintenance-free, saving time and effort. With fast baling speed and high wrapping density, it effectively saves labor costs.
Product Features：
Motor：The 5.5 kW pure copper national standard motor has strong power and stable quality. The compaction density of the bale is higher and the shelf life of the wrapped straw is longe.

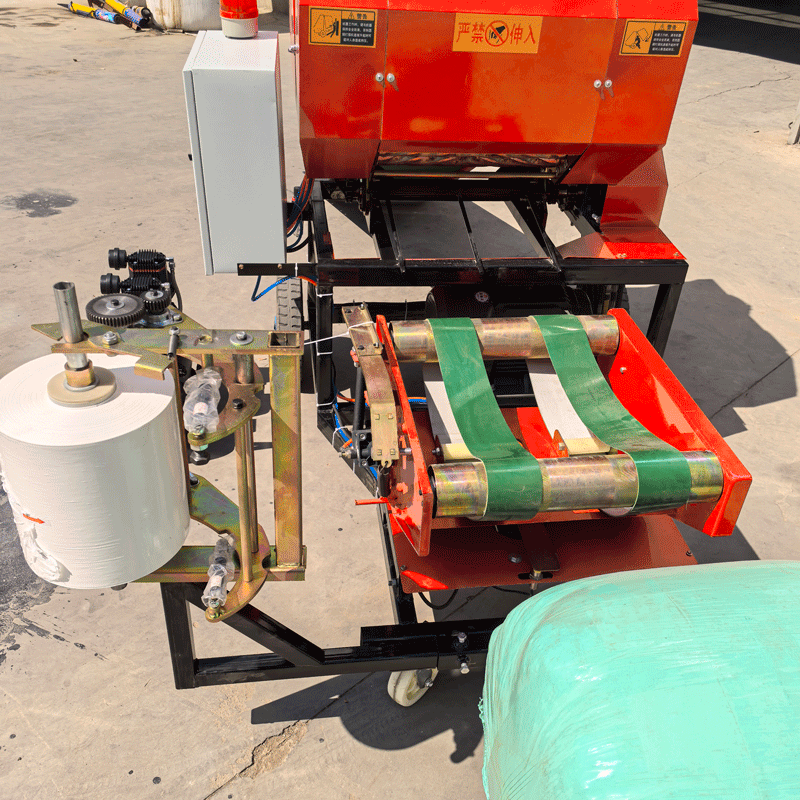

Conveyor：It is equipped with a 1.8-meter-long conveyor belt with a patterned belt to increase the friction of the grass on the conveyor belt, making the feeding speed faster and more uniform. It uses wear-resistant materials to extend its service life.
Oil-water separator：In a humid working environment, moisture in the air can be filtered out, and more importantly, oil can be added to the cylinder to play a lubricating role.

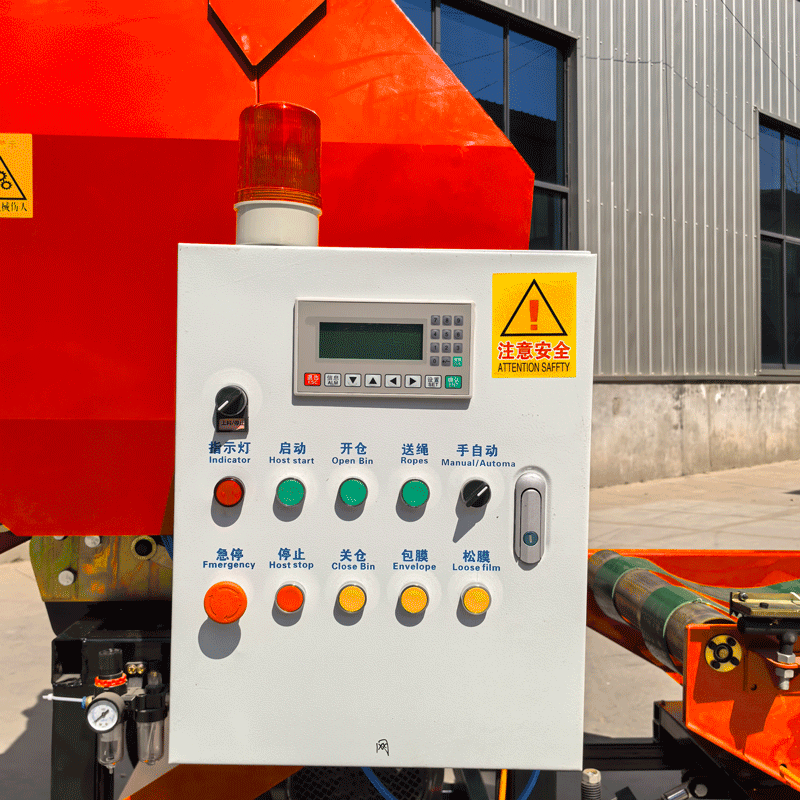

Distribution Box：It can accurately control various actions of the green fodder baler: baling speed, opening and closing of the compartment door, bale compaction density, etc. The operation interface is simple and the button layout is reasonable, which is convenient for the staff to perform various operations and parameter settings. High stability: It uses high-quality electrical components, with stable performance, can adapt to harsh working environments, and reduce the probability of failure.
Product parameter:
| NO. | Projects | Unit | Design value |
| 1 | Model Name | / | 9YDB-50 Silage Baler |
| 2 | Form | / | Stationary |
| 3 | Dimensions | mm | 3200*1700*1600 |
| 4 | Machine weight | kg | 650 |
| 5 | Supporting Motor Power | kw | 5.5 |
| 6 | Coating machine motor power | kw | 0.75 |
| 7 | Rated Speed | r/min | 280 |
| 8 | Aluminum Roller Quantity | pcs | 30 |
| 9 | Production Efficiency | pkts/h | 85 |
| 10 | Bale Weight | kg | 60-100 |
| 11 | Bale Density | kg/m³ | ≥800 |
| 12 | Power Supply Options | / | Three-phase electricity |
| 13 | Bale size | mm | φ550*520 |
| 14 | Feed opening width | mm | 520 |
| 15 | System Features | / | 1,Programming control 2,touch screen operation 3,alarm system 4,automatic winding 5,automatic film wrapping 6,automatic film cutting 7,automatic film clamping |
