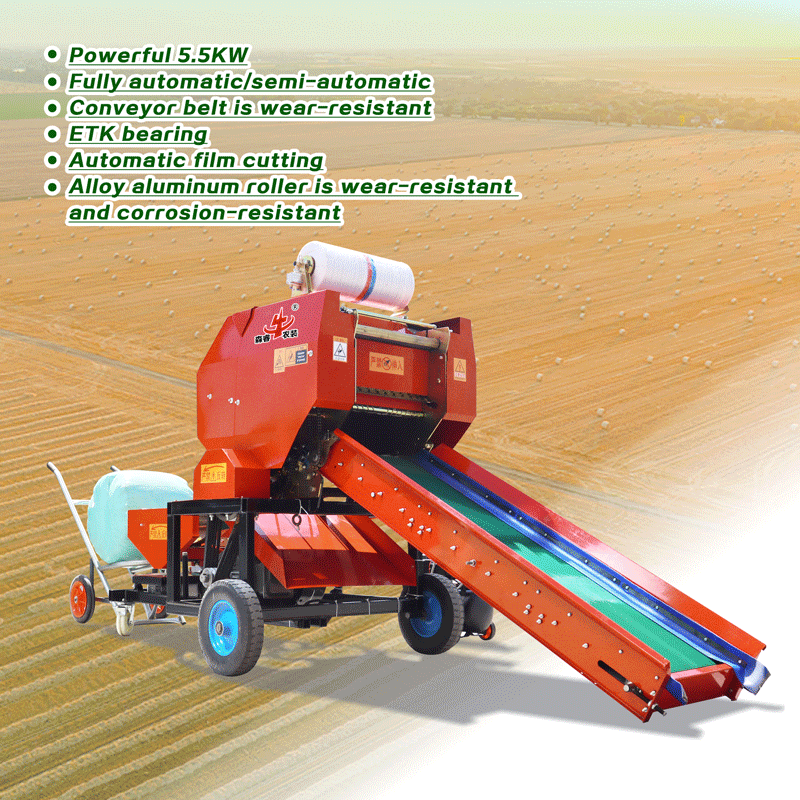

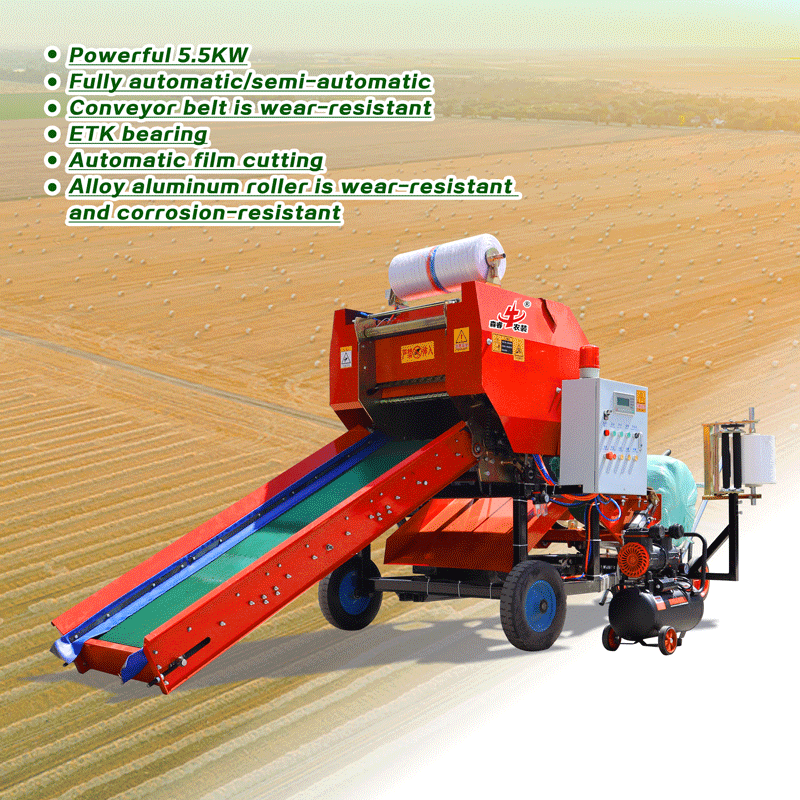

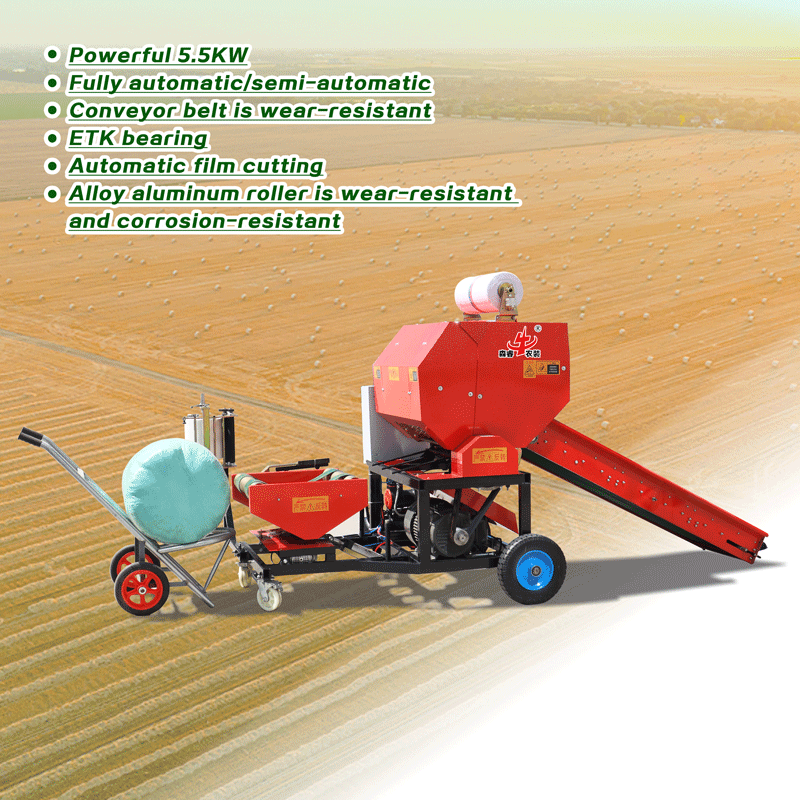

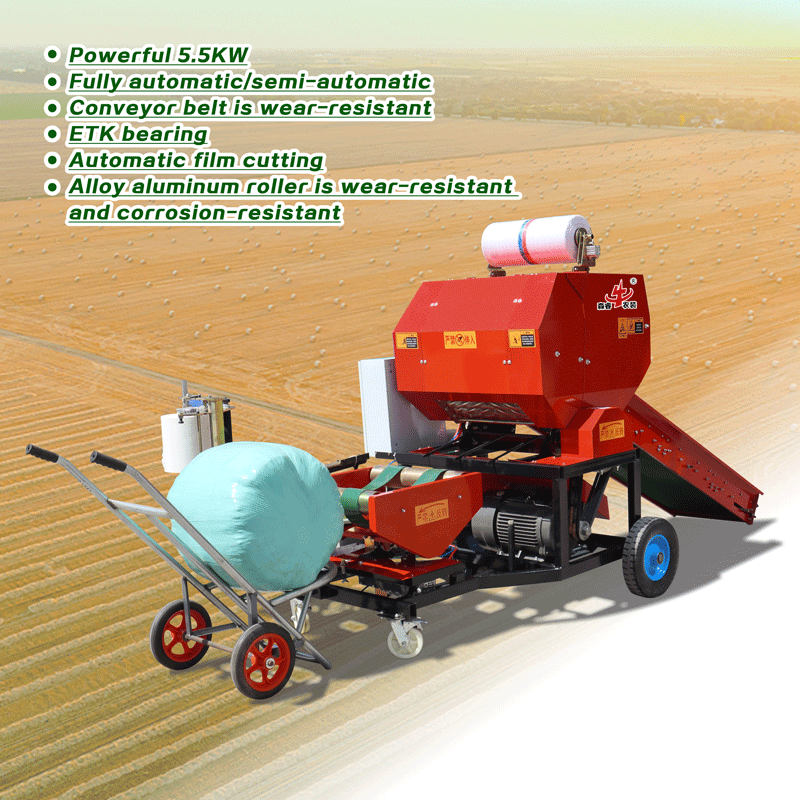

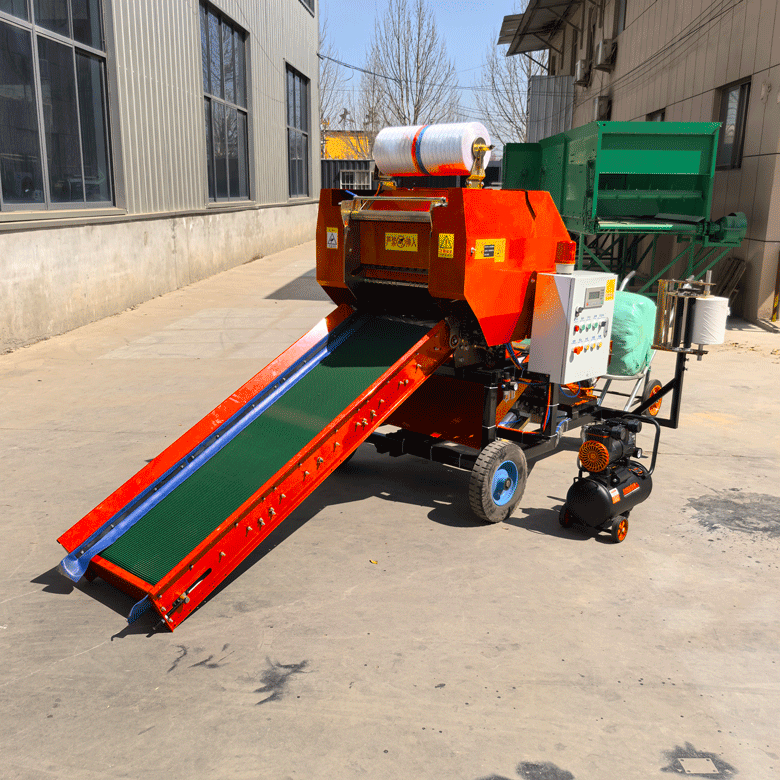

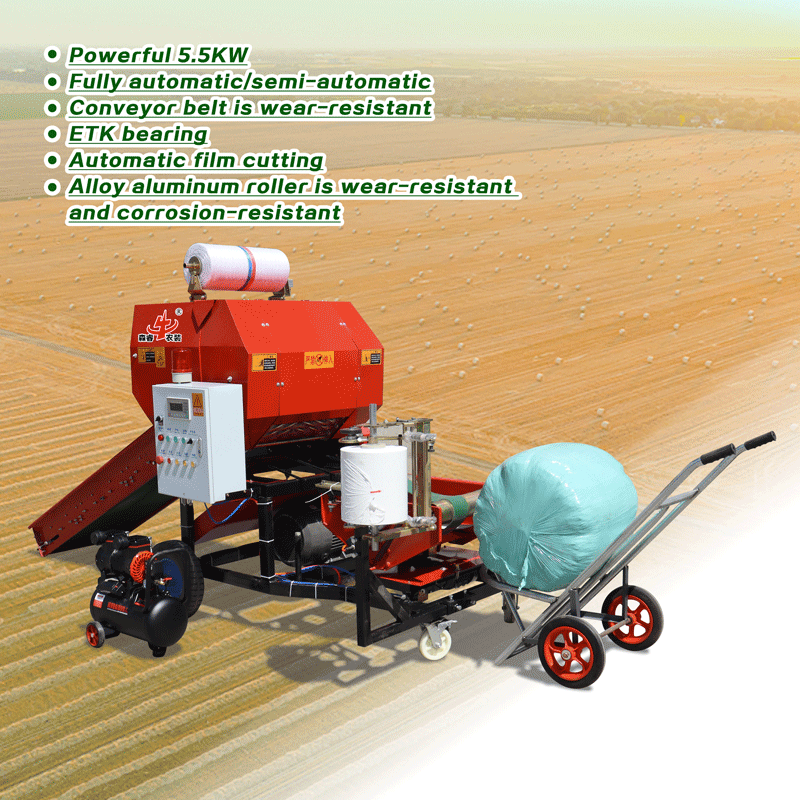

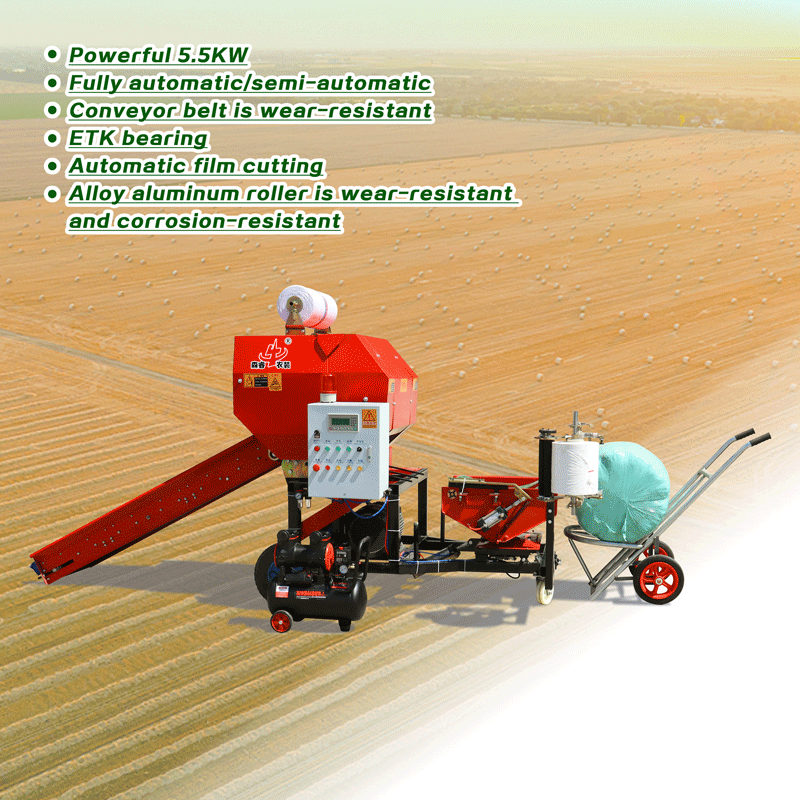

Round Silage Baler Machine for Farm
Product Introduction:
It can automatically bale and wrap the kneaded straw and forage grass. The wrapping device has the functions of automatic film guiding, automatic film cutting and automatic bale unloading, with a high degree of automation, which can reduce the manual operation process. It has the characteristics of fast baling speed, high film density and labor saving.
Product Features：
Motor：The 5.5 kW pure copper national standard motor has strong power and stable quality. The compaction density of the bale is higher and the shelf life of the wrapped straw is longer.
Distribution Box：It can accurately control various actions of the green fodder baler: baling speed, opening and closing of the compartment door, bale compaction density, etc. The operation interface is simple and the button layout is reasonable, which is convenient for the staff to perform various operations and parameter settings. High stability: It uses high-quality electrical components, with stable performance, can adapt to harsh working environments, and reduce the probability of failure.
Conveyor：It is equipped with a 1.8-meter-long conveyor belt with a patterned belt to increase the friction of the grass on the conveyor belt, making the feeding speed faster and more uniform. It uses wear-resistant materials to extend its service life.
Bundle structure：This net bundling process uses a 520MM long net, which works faster. The structure adopts a double-pressure net rod design, which can accurately control the delivery length of the net, ensure the accurate amount of net used each time, reduce the interruption of packing due to net feeding failure, and reduce the difficulty of work.
Product parameter:
| NO. | Projects | Unit | Design value |
| 1 | Model Name | / | 9YDB-50 Silage Baler |
| 2 | Form | / | Stationary |
| 3 | Dimensions | mm | 3200*1700*1600 |
| 4 | Machine weight | kg | 650 |
| 5 | Supporting Motor Power | kw | 5.5 |
| 6 | Coating machine motor power | kw | 0.75 |
| 7 | Rated Speed | r/min | 280 |
| 8 | Aluminum Roller Quantity | pcs | 30 |
| 9 | Production Efficiency | pkts/h | 85 |
| 10 | Bale Weight | kg | 60-100 |
| 11 | Bale Density | kg/m³ | ≥800 |
| 12 | Power Supply Options | / | Three-phase electricity |
| 13 | Bale size | mm | φ550*520 |
| 14 | Feed opening width | mm | 520 |
| 15 | System Features | / | 1,Programming control 2,touch screen operation 3,alarm system 4,automatic winding 5,automatic film wrapping 6,automatic film cutting 7,automatic film clamping |
