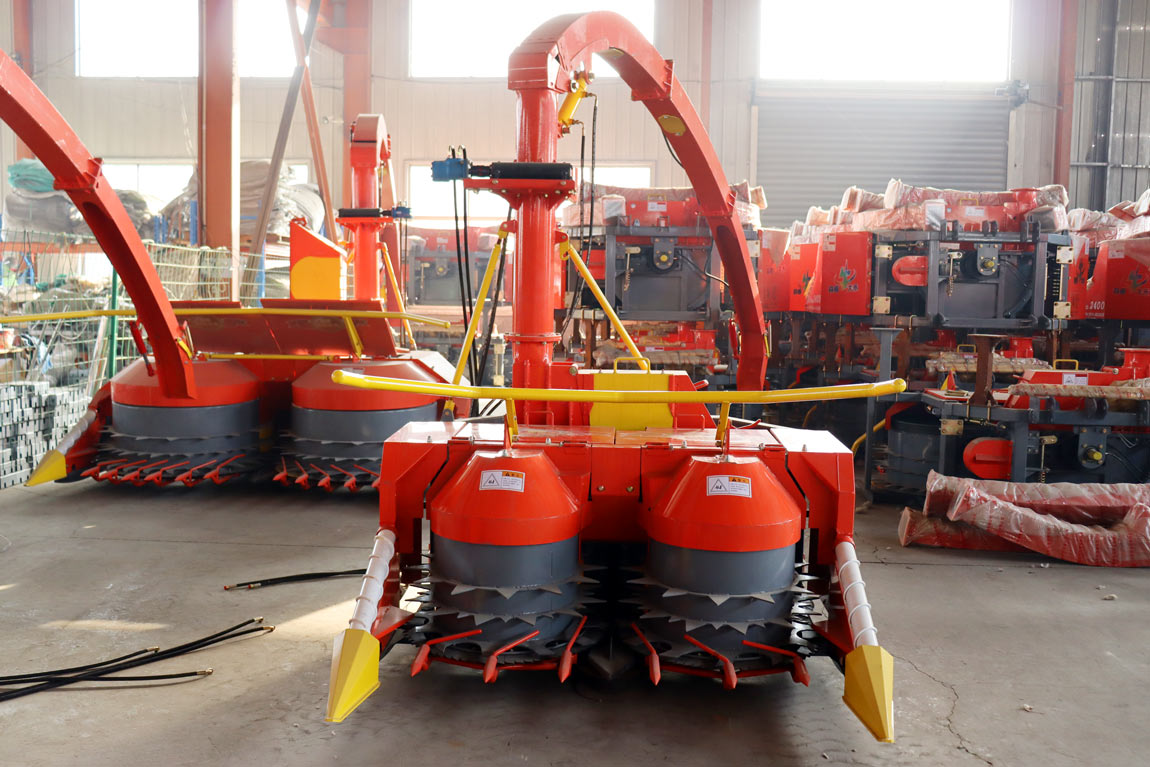

1.585m Direct Cut Forage Harvester
Product features
* with automatic tool grinding function, to solve the problem of time-consuming and laborious users, greatlyreducing maintenance time, improve efficiency.
* The vertical cylinder feeding device can adapt to the harvest of high straw crops such as corn andsorghum.
* The four-roll forced sequential feeding device can feed the cut-off material into the material choppingdevice in good order.
* The spray cylinder is rotated by worm gear and worm mechanism, and can rotate + 180 °, effectivellocking the spray cylinder angle, making the spray angle more stable.
* The material chopping device can realize the adjustable length of the material chopping, so as to meet the needs of different forage forage harvesting.
* The cutting device adopts double disc saw blade, the material cutting is accurate and stable, and thestubble left is even and consistent.
* The throwing device can quickly and accurately throw the chopped material into the accompanyinc material
Product introduction

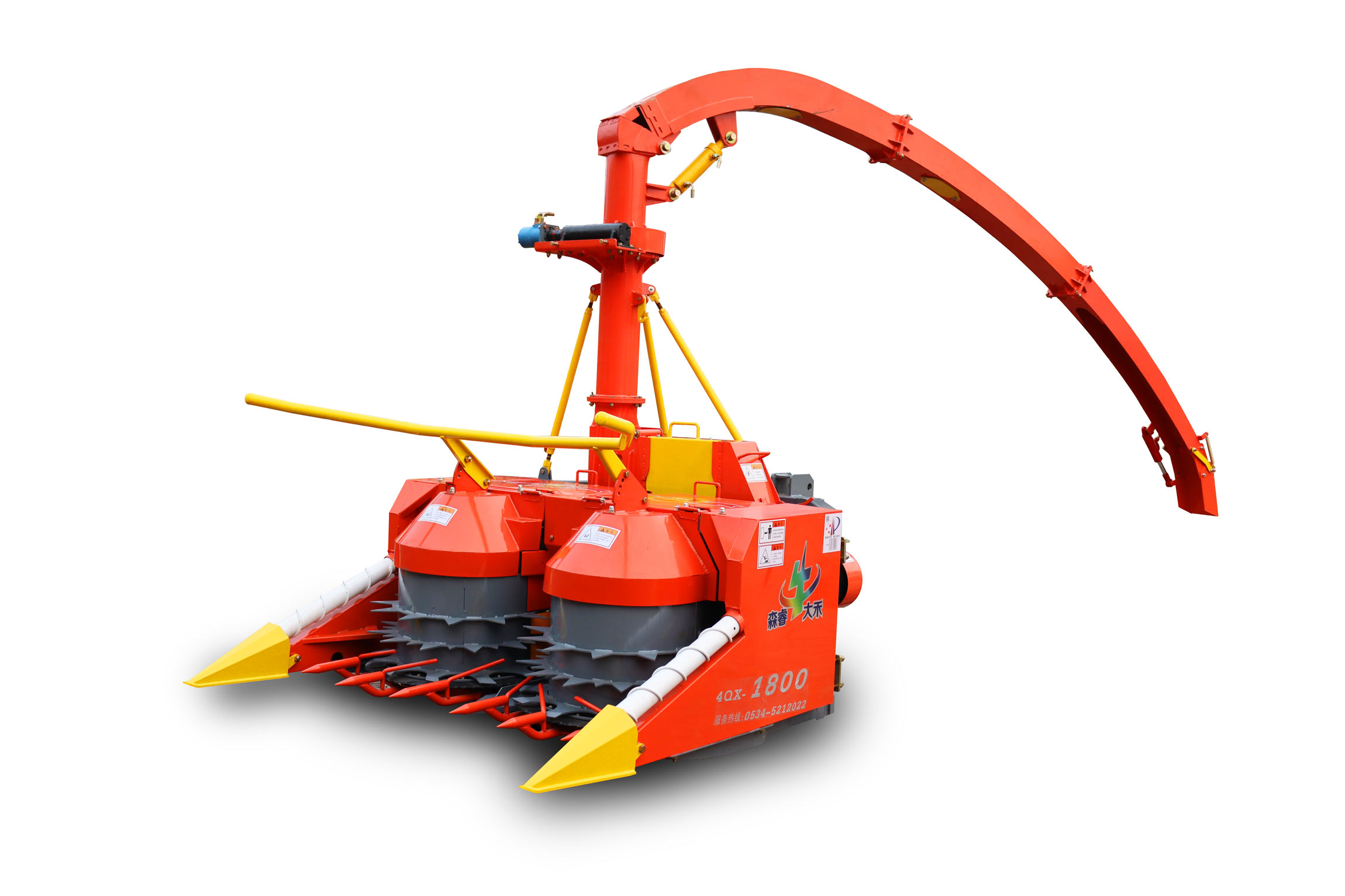

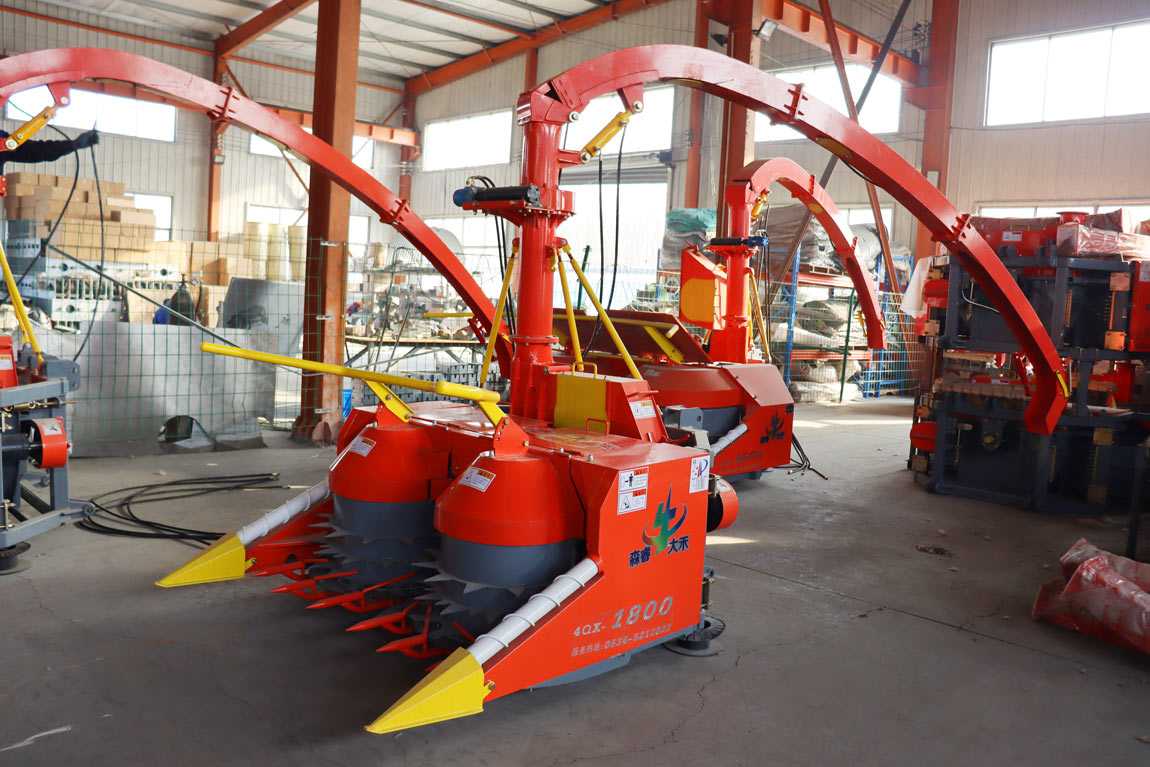

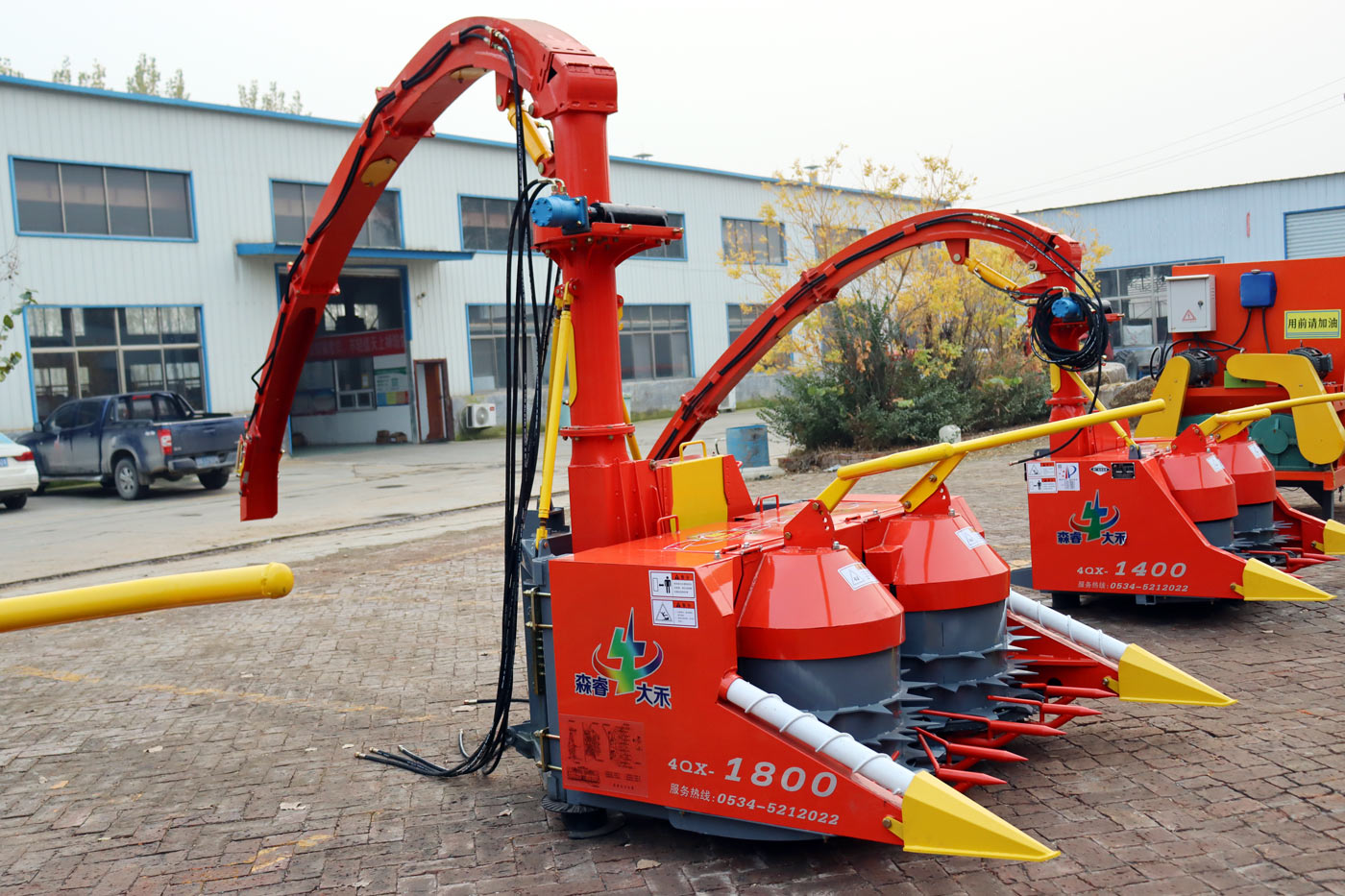

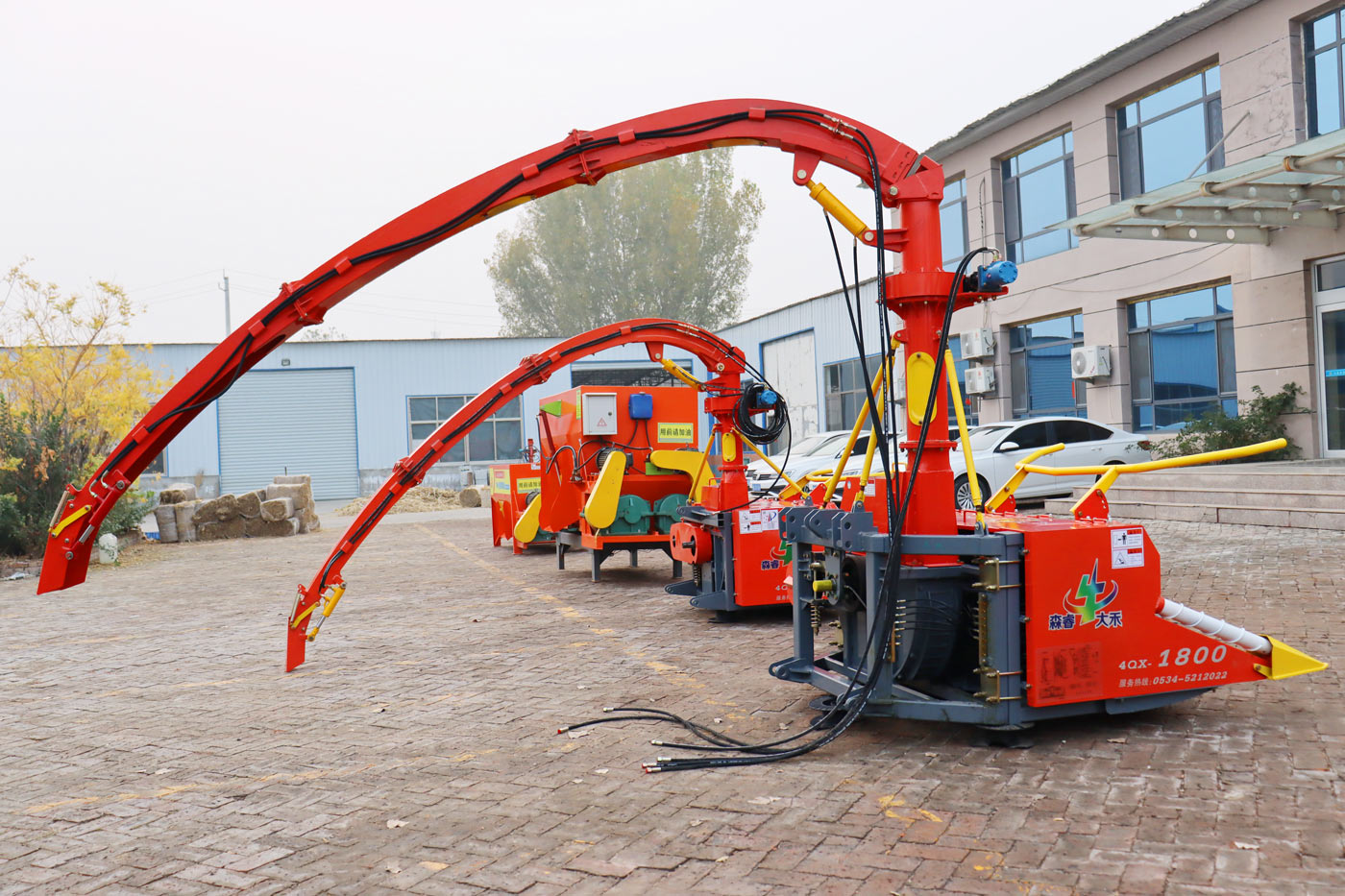

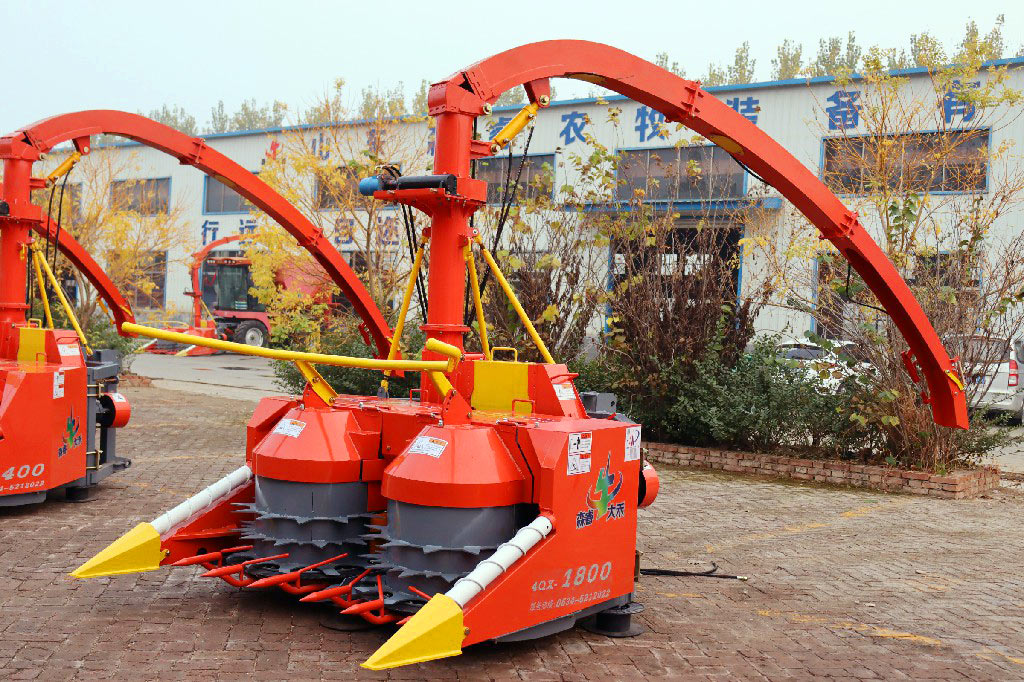

Senrui 4QX-1800 type green fodder harvester, novel design, complete realization of the row harvest operation. The end-state dimension of the equipment (length x width x height) is 4630x1800x4930mm, the structure mass is 1340kg, the power range is 73.5 ~ 95.6 kw, and it has the function of automatic knife sharpening, which solves the problem of time and effort for the user, greatly shorten the maintenance time, improve efficiency. Green (yellow) can be a one-time feed crops to complete cutting off the ground, sequential feeding, even chopping, throwing loading and other operations.
Product parameter:
Projects | unit | design value |
Model Name | / | 4QX-1800 type backpack green fodder harvester |
Form of Construction (Hook-up) | / | Disc type (suspended) |
Working condition external dimensions (L*W*H) | mm | 4630*1800*4930 |
structural quality | kg | 1340 |
Matching power range | kW | 73.5~95.6 |
Effective harvesting width of the cutter | mm | 1585 |
Crop collection cutter type | / | Straight cutting table |
Cutting table cutter type | / | Disc cutter |
Feeding mechanism type | / | Feed rollers |
Number of institutions fed | / | 2 pair |
Chopping mechanism rotor diameter | mm | 895 |
Rated spindle speed | r/min | 850/1000 |
Maximum throwing height | mm | 4850 |
Throwing Minimum Height | mm | 4500 |
Swivelling angle of throwing cylinder | ° | ±180 |
Throwing maximum horizontal distance | m | 12 |
Operating speed range | km/h | 3~6 |
Mean geometric height of material | mm | 10 |
Standard Grass Length Ratio | % | 92 |
Number of moving knives | Piece | 12 |
operating method | / | fully hydraulic |
Adaptation to crop height | mm | 400-5000 |
efficiency of production | t/h | 13~25 |
