6.Ton/Hr Advanced High Speed Silage Chopper Diesel
Product Description:

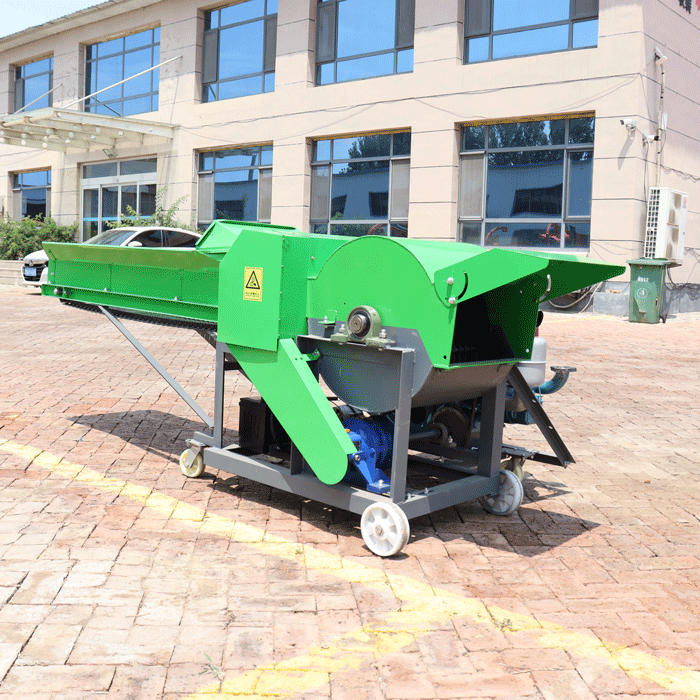

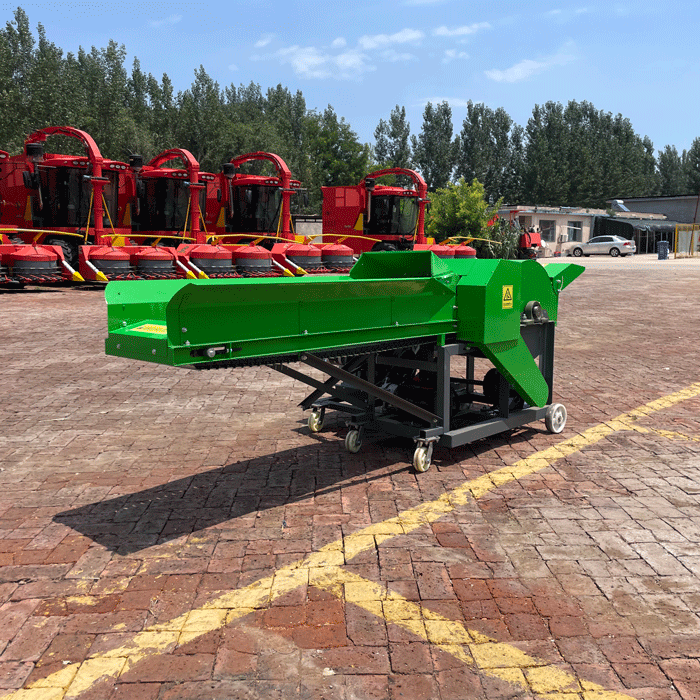

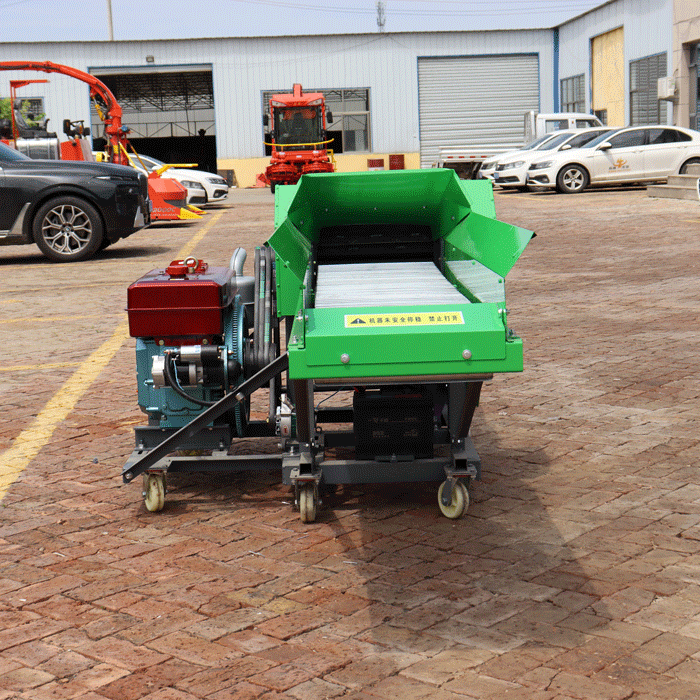

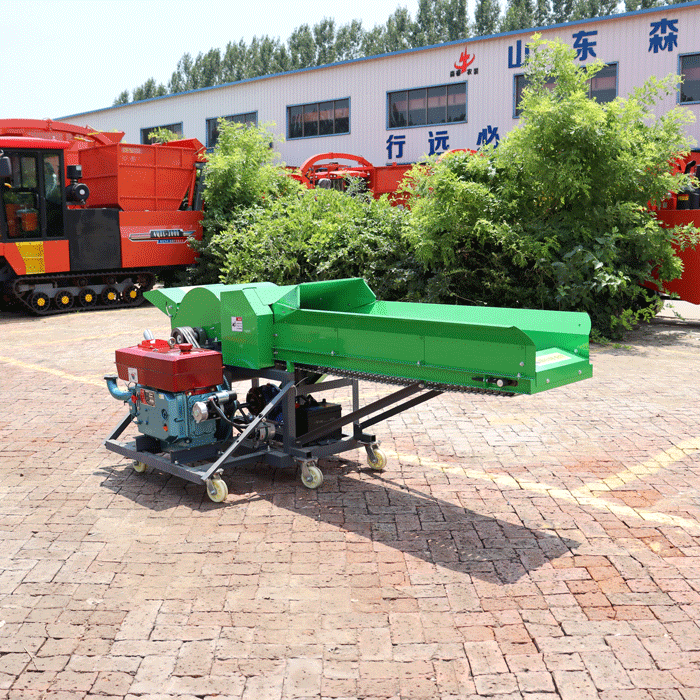

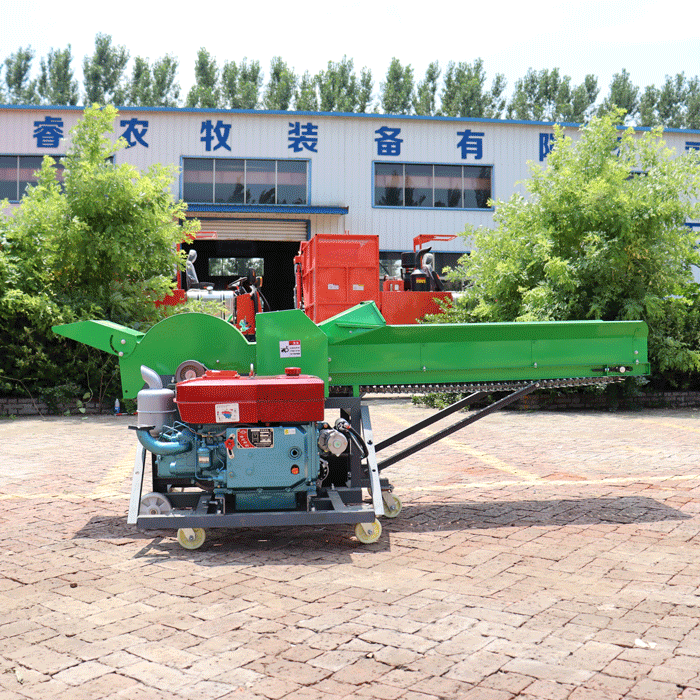

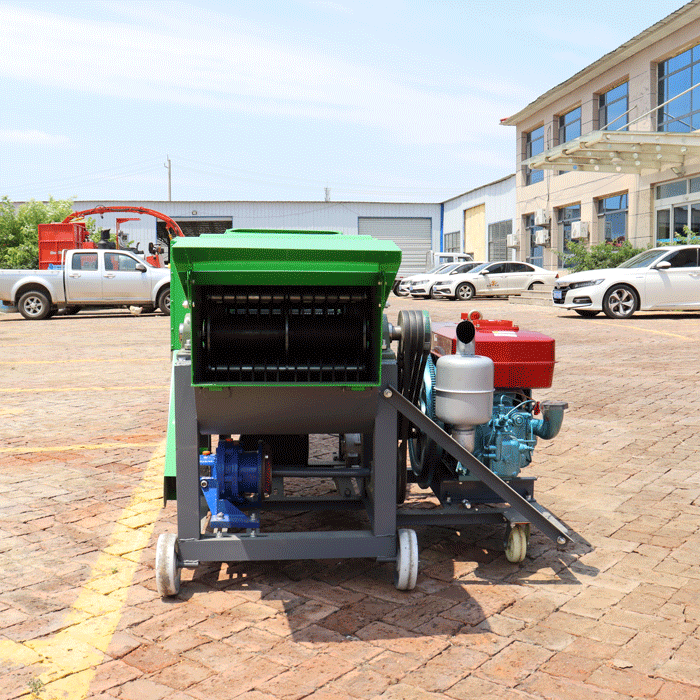

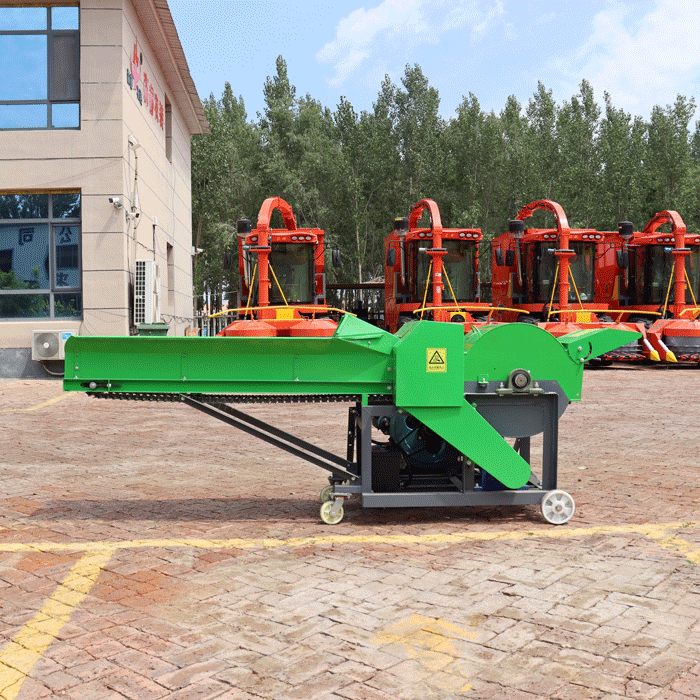

Senrui 9RSJ-6 (Diesel) straw shredder is highly trusted by customers. It produces 6 tons of silage straw per hour and utilizes an 18-horsepower diesel engine to control the kneading chamber, a 1.5-kW reduction motor to control the drive chain, 48 manganese steel hammers, and an electrical box equipped with a suitable motor protector and forward/reverse switches. The entire machine is finished with a baking finish.
Product Features：
Blades: 48 manganese steel serrated blades for uniform chopping.
Diesel Engine: 18HP diesel engine controls the kneading chamber. 1.5kW reduction motor controls the conveyor chain.
Bearings: Utilizes well-known domestic brand bearings.
Machine Craftsmanship: The entire machine is finished with a paint finish for wear resistance.
Product parameter:
NO. | Project | Unit | Design value |
1 | Model Name | / | 9RSJ-6 (diesel) straw shredder |
2 | Structural type | / | Hammer type |
3 | Overall dimensions (length*width*height) | mm | 2800*865*1180 |
4 | Supporting power | hp | 18(Diesel) |
5 | Matching power rated power | kw | 1.5 (transport) |
6 | Matching power rated speed | r/min | 1400 (transport) |
7 | Rated spindle speed | r/min | 1947 |
8 | Productivity | kg/h | ≥6000 (green straw) |
9 | Transmission mode | / | belt drive |
